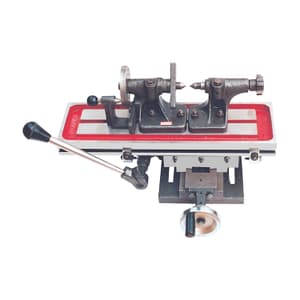

Apex 450 x 125 Profiling Milling & Slotting Slide With Indexing Dividing Head & Tail Stock, 722D-450x125
Roll over image to zoom zoom_in
- Weight: 39 Kg
- Product Type: Machine Vice
- Sizes (mm): 450 x 125 mm
- Size (Inches): 18 x 5 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹29419.76 (Incl. of all taxes)
₹24932+ ₹4487.76 GST (18%)
MRP ₹38357.55
SAVE 35%
5 Business Days
1 Pcs
84669390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- The Longitudinal movement is applied manually and can be adjusted as per job requirement by the adjustment of two end stops provided.
- Cross Traverse movement is applied through screw action provided with graduated wheel.
- Table is provided with T-Slot or mounting indexing and dividing head grooves are provided for passing the used coolant liquid to the tank.
Application:
- Versatile for use with many machines such as milling, slotting, drilling or shaping machines.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.MA.00097 |
|---|---|
| Product Type | Machine Vice |
| Model No | 722D-450x125 |
| Sizes (mm) | 450 x 125 mm |
| Size (Inches) | 18 x 5 inch |
| Length of Stroke (in mm) | 115 mm |
| Longitudinal Travel (in mm) | 230 mm |
| Cross Travel (in mm) | 135 mm |
| Working Area of Table (in mm) | 400 x 90 mm |
| Size of T-Slot (in mm) | 10 mm |
| Height of Centre (in mm) | 75 mm |
| Between Centre (in mm) | 215 mm |
| Direct Dividing Plate Division | 1-30,34,39,46,48 |
| Wheel calibration (in inches) | .001 |
| Height Overall (in mm) | 270 mm |
| Finish | Amazon Green |
