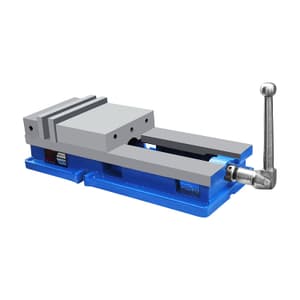

• Tilt Lock Machine Vice design is beamlike with two vertical and horizontal rails connected to the base.
• You can hold piece parts in the most immobile state possible.
• Flame Hardened Bed.
• All parts are interchangeable and available as spares.
• Totally enclosed toughened Screw.
• Accuracy in Parallelism & squareness within 0.02 mm.

Three Basics in Precision Clamping

• That the movable jaw does not lift off the bed.
• That the body is rigid, and that a minimum amount of bending stresses is created in the clamping area.
• That deflection of the stationary jaw is minimized.

Construction:

• Unbreakable ductile iron cast body. Die Steel (EN-31) hardened & ground jaws.
• In addition to the rigid design characteristics, a large heavy nut is drawn up against the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses.
• 4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position.

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
