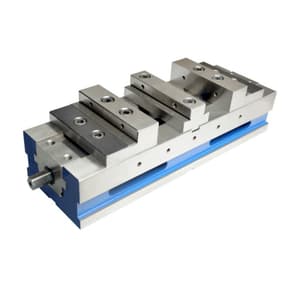

Apex 791 - 150 mm / 6 inch Precision Self Centering High Grip Machine Vice

Shop all Apex

SKU: HA.VI.MA.00232

Model: 791-150

Roll over image to zoom zoom_in
  1. Apex 791 - 150 mm / 6 inch Precision Self Centering High Grip Machine Vice
  2. Apex 791 - 150 mm / 6 inch Precision Self Centering High Grip Machine Vice
  3. Apex 791 - 150 mm / 6 inch Precision Self Centering High Grip Machine Vice

  • Weight: 40 Kg
  • Product Type: Machine Vice
  • Sizes (mm): 150 mm
  • Size (Inches): 6 inch
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

65167.86 (Incl. of all taxes)

55227+ ₹9940.86 GST (18%)

MRP ₹84964.95

SAVE 35%



5 Business Days

1 Pcs

84669390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Self Centering Hi-Grip Machine Vice designed for Precision Milling, Grinding & Widely used with CNC Machining Center.
  • The Jaws move towards the center. This always provide stable work piece centering settings.
  • High Grade FCD 60 Body, Grounded Top & Bottom. This CNC Vice securely holds Two Work Pieces for Maximum Productivity.
  • Perfect Vice for Mass Production Enviroments.
  • The Vice also quickly converts into a Wide Opening single Station CNC Vice with a Massive 375 mm Capacity.
  • Bed Height matched with Multiple Vice Orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Accuracy in Parallelism & Squareness within 0.02/100 mm.
  • Interchangeable Jaws Plates. Tenon & Tenon Slots provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can achieve by Effortless handle Movement which eliminates Hammering on Vice Handle.


Standard Accessories:

  • 4x Side Clamps
  • 1x Box Wrench
  • 2x Positioning Key Nuts
  • 1x Work Stopper


Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

Specifications

SKUHA.VI.MA.00232
Product TypeMachine Vice
Model No791-150
Sizes (mm) 150 mm
Size (Inches) 6 inch

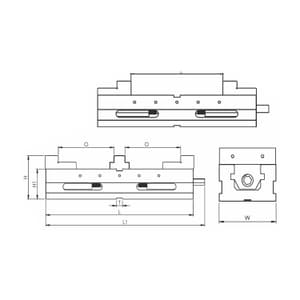

Length (mm) 450 mm
Height (mm) 130 mm
L1 (mm) 528 mm
H1 (mm) 90 mm
O (mm) 210 mm

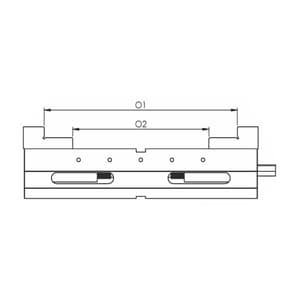

01 (mm) 372 mm
02 (mm) 262 mm
Thickness (mm) 18 mm
Max. Clamping Pressure (Kg) 3500 Kg
