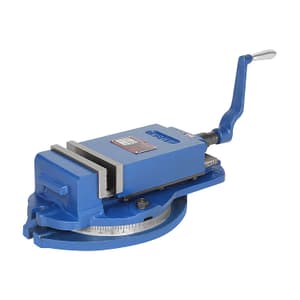

Apex SG 703 - 75 mm / 3 inch Milling Machine Vice (Swivel - S.G Iron Body)
Roll over image to zoom zoom_in
- Weight: 9.7 Kg
- Product Type: Machine Vice
- Sizes (mm): 75 mm
- Size (Inches): 3 inch
- Vice Type: SG Ductile Iron Body (Swivel Model)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹9089.54 (Incl. of all taxes)
₹7703+ ₹1386.54 GST (18%)
MRP ₹11850.3
SAVE 35%
5 Business Days
1 Pcs
84669390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Manufactured to consistent accuracy to give prolonged reliable service.
- Totally enclosed design prevents the ingress of foreign matter and damage to the screw and nut.
- Swivel base graduated fully 360°.
- Spares readily available.
- Tenon Slots in slide and swivel base.
- Available as plain and swivel vice.
Construction:
- High tensile Stress Relieved quality casting, precision ground hardened & tempered steel jaws plates.
- ACME thread interchangeable screw, hot-stamped manganese bronze nut contained in the totally enclosed sliding jaw.
- Complete with all-steel handle.
Finish:
- Amazon Green
- Code SG703 - SG703P: SG Ductile Iron Body
- Hammer tone metallic blue.
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.VI.MA.00022 |
|---|---|
| Product Type | Machine Vice |
| Model No | SG703-75 |
| Sizes (mm) | 75 mm |
| Size (Inches) | 3 inch |
| Vice Type | SG Ductile Iron Body (Swivel Model) |
| Depth of Jaws (mm) | 38 mm |
| Length Overall (mm) | 285 mm |
| Height Overall (mm) | 100 mm |
| Width Overall (mm) | 155 mm |
| Opening of Jaws (mm) | 75 mm |
| Tenon Slot Size (mm ) | 13 mm |
