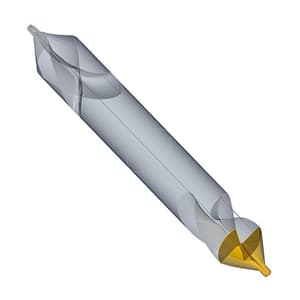

Atorn 2.50 mm Pilot Dia. / 6.30 mm Body Dia. / 45 mm Length HSS Centre Drill - Type 'A', 10440007
Roll over image to zoom zoom_in
- Weight: 0.09 Kg
- Product Type: Centre Drills
- Pilot Dia: 2.50 mm
- Body Dia: 6.30 mm
- Length: 45 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹555.78 (Incl. of all taxes)
₹471+ ₹84.78 GST (18%)
MRP ₹941
SAVE 50%
5 Business Days
1 Pcs
82076090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- For universal use up to 1000 N/mm²
- Application: For centre drilling on conventional and CNC machines.
- Advantage: Radial relief ensures optimum chip breaking
- Execution: Spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | CU.DR.CE.00132 |
|---|---|
| Product Type | Centre Drills |
| Model No | 11001025 |
| Series | Type 'A' Series |
| Pilot Dia | 2.50 mm |
| Body Dia | 6.30 mm |
| Length | 45 mm |
| Surface | Uncoated |
| Countersink Angle | 60 Degree |
| Cutting Material | HSS |
| F steel 700 | 0.05 mm/r |
| Grade | DIN 333 |
| Min / Max Cutting Edge Length | 3.1 - 3.8 mm |
| Tool Holding Device | HA Parallel Shank |
