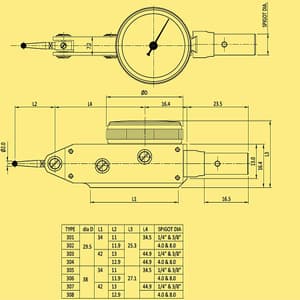

Baker 0.8 mm Lever Type Dial Gauge (Model 29), 302AP
Roll over image to zoom zoom_in
- Product Type: Dial Indicator
- Range (mm): 0 - 0.8 mm
- Reading: 0.01 mm
- Graduation: 0 - 40 - 0
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹3764.2 (Incl. of all taxes)
₹3190+ ₹574.2 GST (18%)
MRP ₹3890
SAVE 18%
2 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Specification: IS, DIN, ANSI & JIS
- Every gauge carries a calibration certificate giving actual values
- Auto reversal mechanism
- Fitted with jewels and Swiss miniature ball bearings for smoother operation
- Robust and highly sensitive gauge suitable for workshop use
- Metric Gauges conform to IS 11498 and for the European market to DIN 2270
- Inch Gauges conform to ASME B89.1.10M
- Integral dovetail offers flexibility and rigidity for mounting the gauge
- Metric & Inch gauges are supplied with a 2 mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
- Supplied with 2 mm ø T.C. ball stylus & 8 mm Dovetail Spigot assembly fitted to the gauge
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.DI.00137 |
|---|---|
| Product Type | Dial Indicator |
| Model No | D30289000, 302AP |
| Type of Product | Dial Gauge |
| Range (mm) | 0 - 0.8 mm |
| Reading | 0.01 mm |
| Bezel Dia. | 29 mm |
| Graduation | 0 - 40 - 0 |
