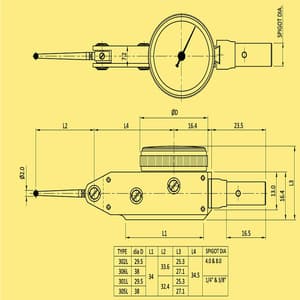

MODEL 29/38 | LONG STYLUS Lever Type Dial Gauges, Fixed with Jewels, rigid brass body, Metric & inch range. Dia.2mm tungsten carbide ball stylus. With 33.6 & 32.4 long stylus.

Features:

• Every gauge carries a calibration certificate giving actual values
• Auto reversal mechanism
• Fitted with jewels and Swiss miniature ball bearings for smoother operation
• Robust and highly sensitive gauge suitable for workshop use
• Metric Gauges conform to IS 11498 and for the European market to DIN 2270
• Inch Gauges conform to ASME B89.1.10M
• Integral dovetail offers flexibility and rigidity for mounting of the gauge
• Metric & Inch gauges are supplied with 2mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
• Supplied with 33 mm long 2 mm ø T.C. ball stylus & 8 mm Dovetail Spigot Assembly fitted to the gauges
