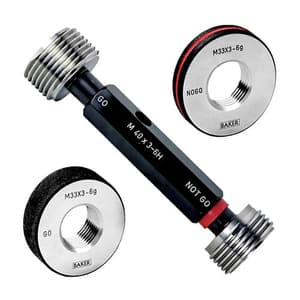

Baker 1.1 mm Right Hand ISO Metric Thread Gauges

Shop all Baker

SKU: ME.DI.TH.00068

Model:

Roll over image to zoom zoom_in
  1. Baker 1.1 mm Right Hand ISO Metric Thread Gauges
Visit Baker Store keyboard_double_arrow_right
  • Product Type: Thread Gauges
  • Diameter (mm): 1.1 mm
  • Pitch: 0.25
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments
Crazy Deals of the Month

₹3052.66 (Incl. of all taxes)

₹2587+ ₹465.66 GST (18%)

MRP ₹3155

SAVE 18%

5 Business Days

1 Set

90173021

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights


Acceptance criteria for components

  • Thread gauge dimension are as per DIN ISO 1502
  • The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread.
  • The NOT GO gauge when screwed by hand without being forced, should not enter the component by more than three complete turns.

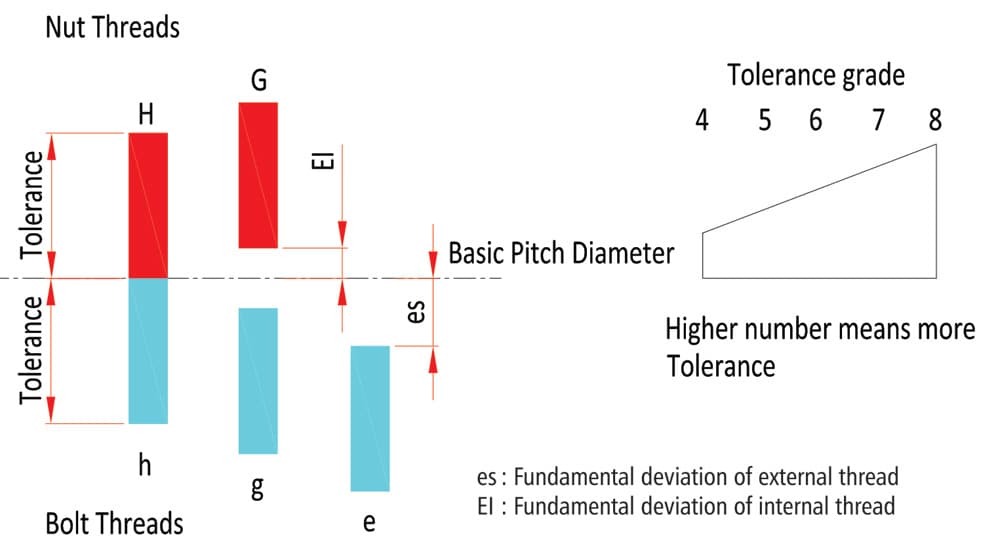

Tolerance Diagram Internal & External Threads


Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.DI.TH.00068
Product TypeThread Gauges
Model No
Diameter (mm) 1.1 mm
Pitch 0.25
Thread Plugs D/E Go & Not Go (6H)
Thread Ring Go or Not Go (6G)
