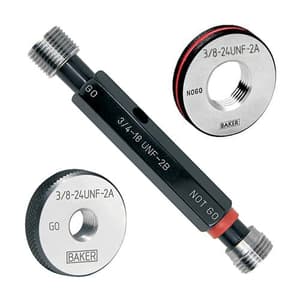

Baker 3 Inch Right Hand Unified Thread Gauges

Name: Baker 3 Inch Right Hand Unified Thread Gauges
Brand: Baker
SKU: ME.DI.TH.00276
Price: 6562 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Baker

SKU: ME.DI.TH.00276

Model:

Roll over image to zoom zoom_in

Visit Baker Store keyboard_double_arrow_right

Key Features

Product Type: Thread Gauges
Diameter (inches): 3 inch
Threads Per Inch: 4 UNC
Thread Plugs: S/E Go or Not Go (2B)
Thread Ring: Go or Not Go (2A)
American Standard: Gauging Practice : ANSI / ASME B1.2 - 1983

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

Crazy Deals of the Month

Type of Product

₹7469.40 (Incl. of all taxes)

₹6330+ ₹1139.4 GST (18%)

MRP ₹7720

SAVE 18%

Dispatch: 5 Business Days

Items in Pack: 1 Set

HSN Code: 90173021

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Acceptance criteria for components

Thread gauge dimension are as per ANSI / ASME B1.2
The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread.
The NOT GO gauge when screwed by hand without being forced, should not enter the component by more than three complete turns.

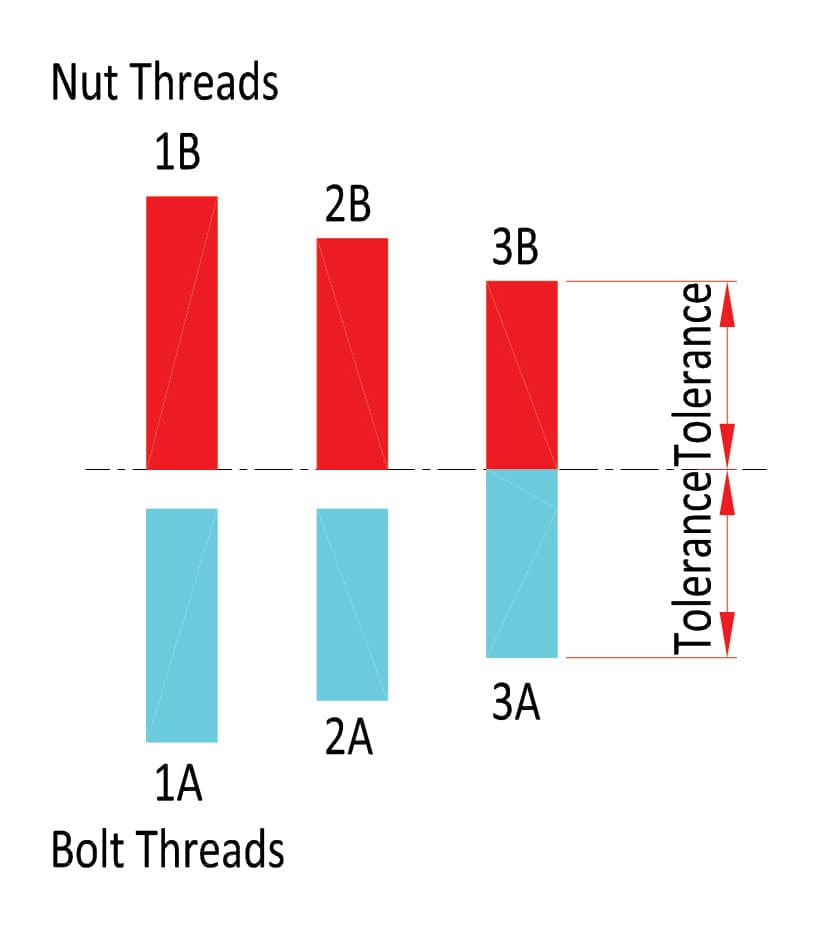

Tolerance Diagram Internal & External Threads

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.DI.TH.00276
Product Type	Thread Gauges
Model No
Diameter (inches)	3 inch
Threads Per Inch	4 UNC
Thread Plugs	S/E Go or Not Go (2B)
Thread Ring	Go or Not Go (2A)
American Standard	Gauging Practice : ANSI / ASME B1.2 - 1983
