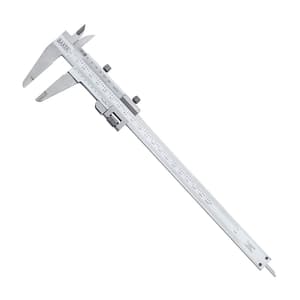

VCF series Mechanical Vernier calipers available from 0-130mm to 0-980mm with fine adjustment. Measures Od, ID, Step and Depth. Robust, hardened and ground SS jaws & beam.

Features:

• Every gauge carries a calibration certificate giving actual values
• With 0.02 mm / 0.001” Least Count
• Measures OD, ID, Step and Depth
• Accuracy as per DIN 862
• Robust, Hardened and Ground stainless steel jaws and beam
• Supplied in a sleek plastic box

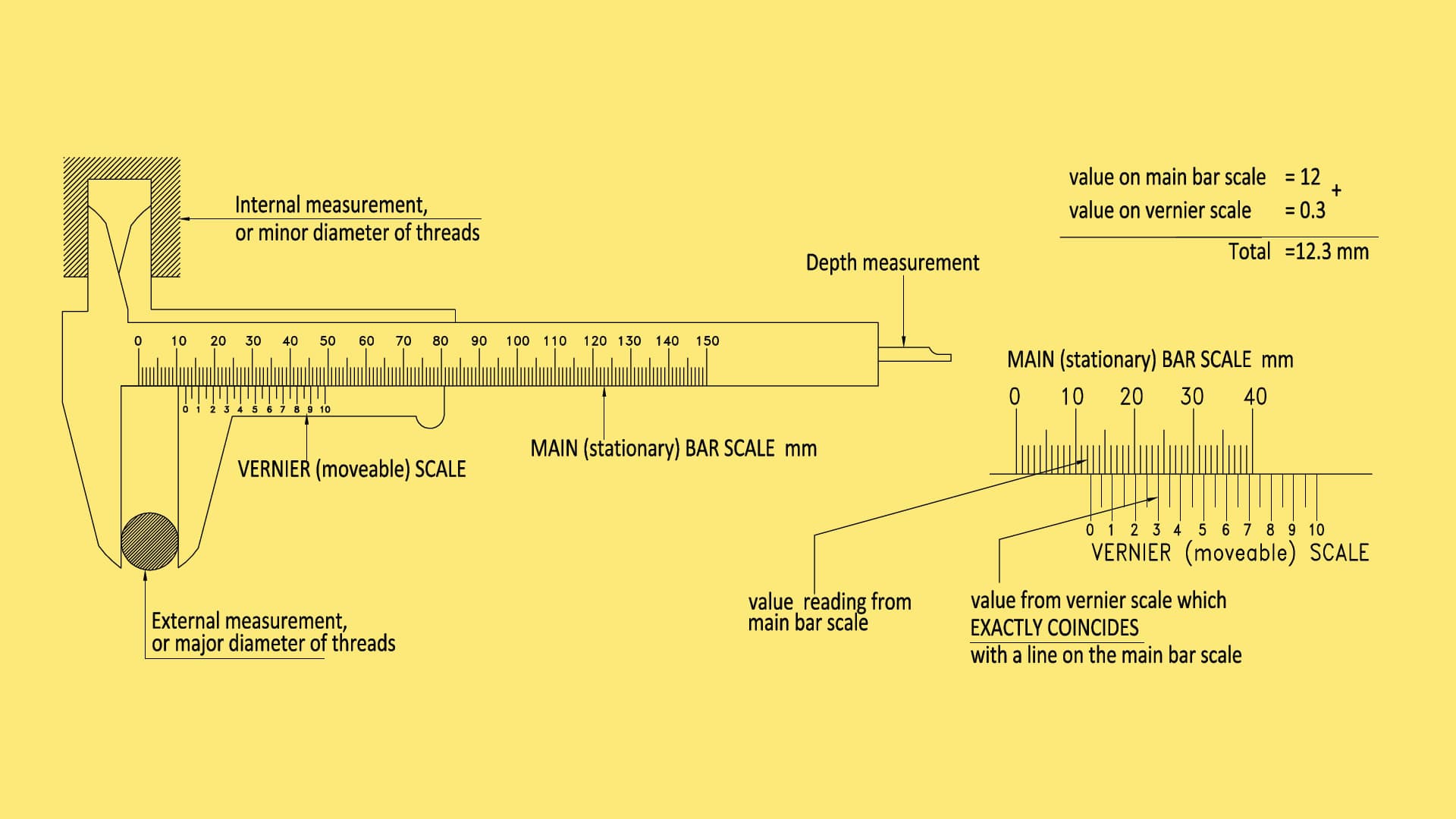

How To Read A Caliper:

Read the value of the main (stationary) scale which is just to the left & above the “0” zero reading on the vernier (movable) scale Then add the value on the vernier (movable) scale which exactly coincides with a line on the main (stationary) scale
