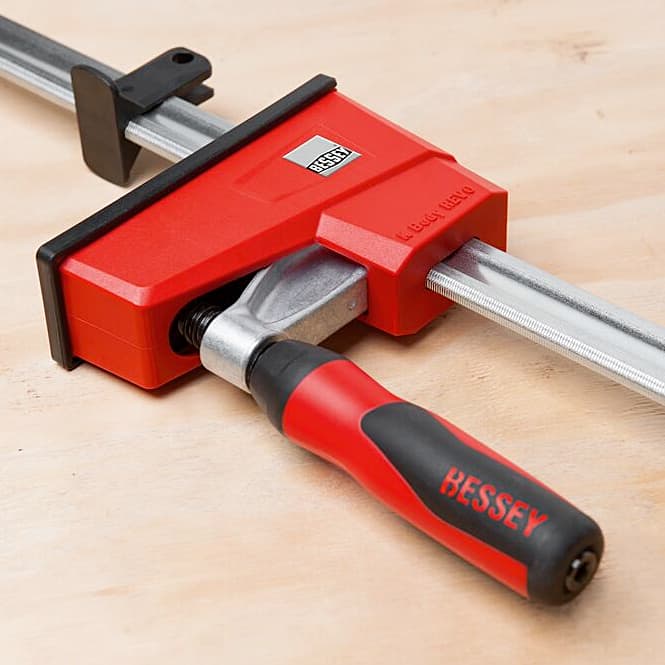

• Very large parallel clamping surfaces with 3 removable pressure caps
• Metal-reinforced plastic housing and optimised sliding arm with double slide protection for more power and safety: The set clamping force is maintained and the sliding arm cannot unintentionally slip in the unclamped condition
• Can be converted without tools for spreading tasks

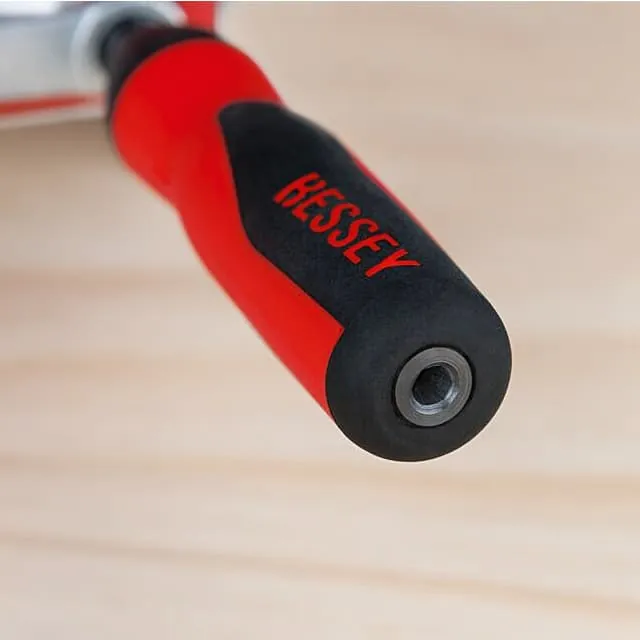

• High-quality 2-component symmetrical plastic handle with hexagon socket for the comfortable application of the clamping force (max. torque 17 Nm)
• KREV with continuously adjustable and fixable upper section for optimum positioning on the workpiece

Precise & Gentle

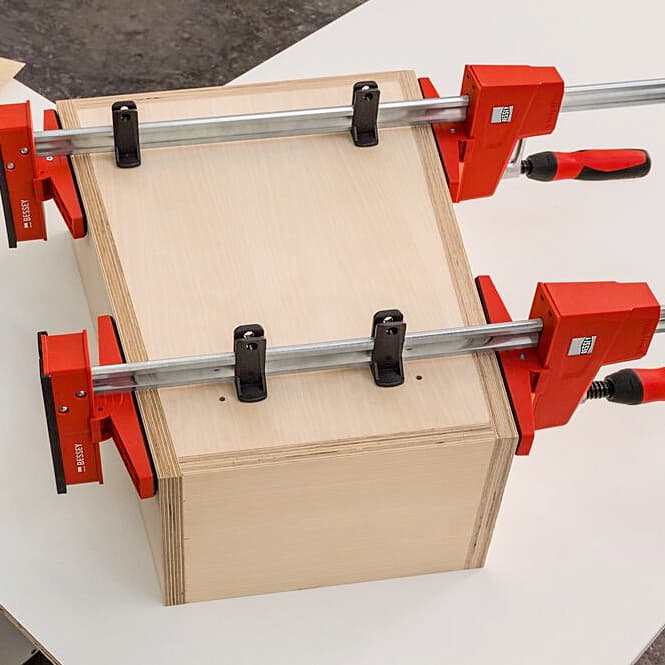

Workpieces with sensitive surfaces can be clamped and spread exactly parallel to each other – even behind and on the side of the rail. Corners and recessed edges as well as pointed and round surfaces can also be perfectly aligned:

• due to extremely large clamping surfaces that are attached perpendicular to the rail
• due to three removable pressure caps that are repellent to glue, and also resistant to paint and grease solvents

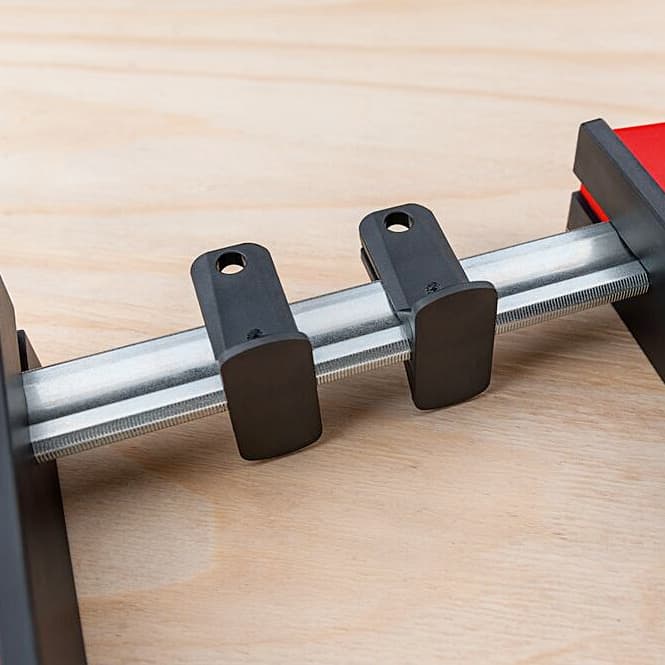

• due to workpiece supports that prevent the workpiece from coming into contact with the rail

Powerful & Safe

They securely clamp with a clamping force of up to 8000 N:

• due to the metal-reinforced plastic housing
• due to the optimised sliding arm with double slide protection: It holds the clamp reliably with the set clamping force and prevents any unintentional slipping of the sliding arm in the unclamped condition

Versatile & Well thought out

The clamps provide an enormous number of possible applications:

• due to ingenious accessories, such as tilting adapter, frame press set, clamp extension and table clamp
• the ergonomically formed 2-component symmetrical plastic handle with hexagon socket means the clamping force can be comfortably applied (max. torque 17 Nm)
• the continuously adjustable head for the KREV Vario version enables the clamp to be positioned in the middle of the workpiece for optimum weight distribution

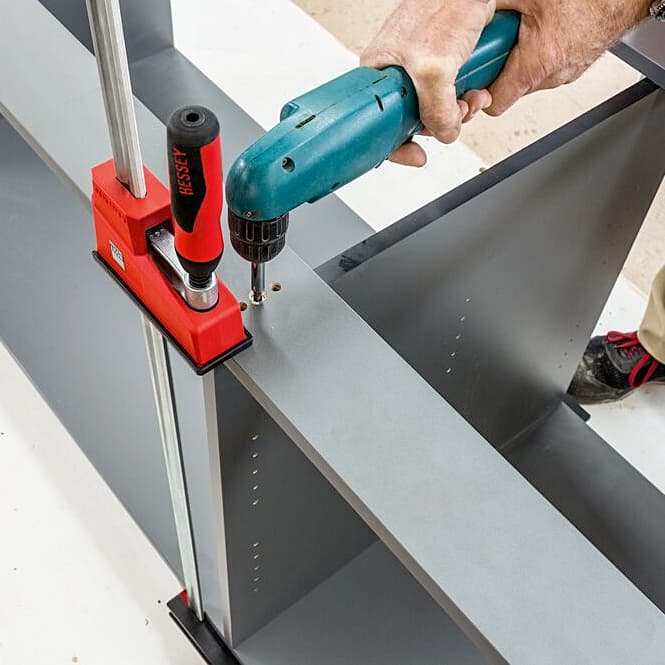

Areas of application

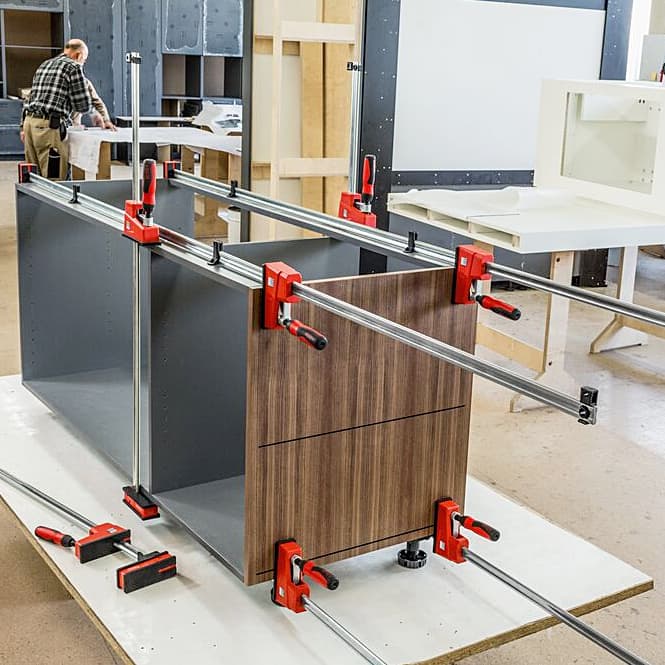

• Cabinet Making

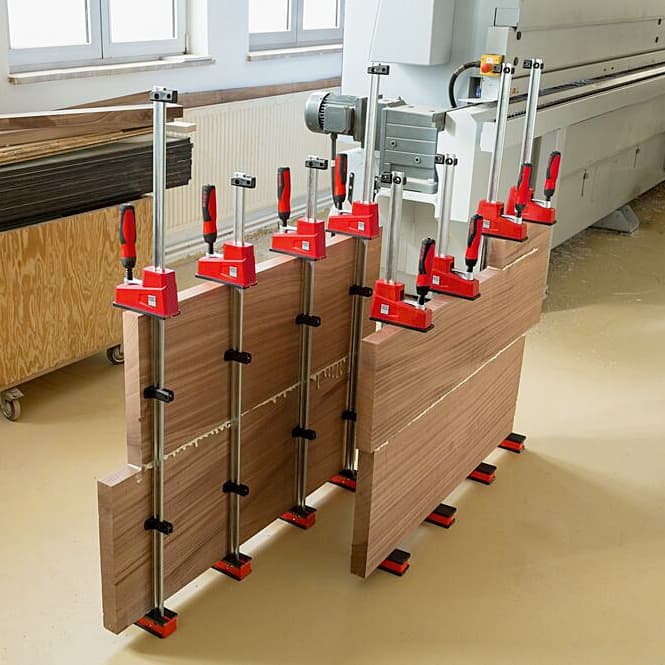

• Hardwood Glue-ups

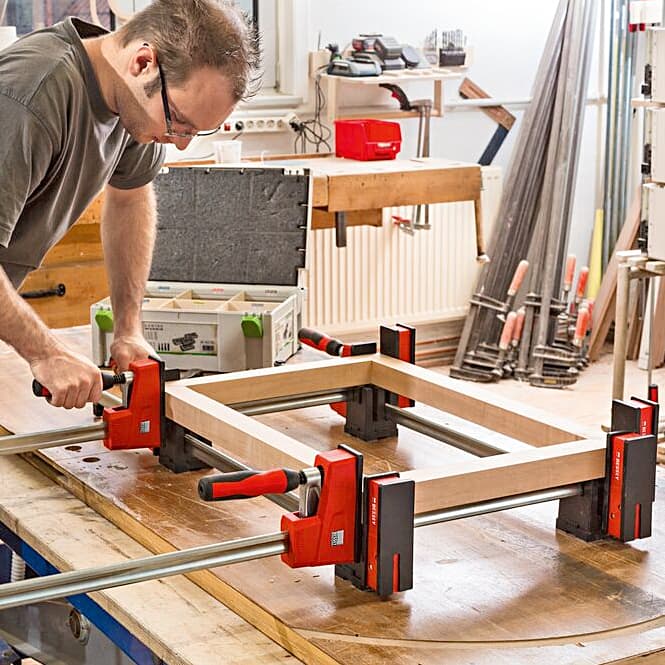

• Door and Window Assembly
• Woodworking Jigs and Fixtures
• Furniture Building
• Home Renovation Projects

Safety information

• Use the product only in its original condition.
• Use the product only for its intended purpose. Improper use can cause personal injury or property damage.
• Wear safety glasses to protect your eyes.
• Wear work or assembly gloves to protect your hands.
• Wear safety footwear to protect your feet.
• Thew handle must always be free of oil and grease to prevent slipping.
• Keep the product out of reach of children.
• Small parts must not be swallowed or inserted into body openings.
• Check the product for damage before each use and make sure that all moving parts are working properly.
• A damaged product must not be used.
• Follow the care instructions for each product – see www.bessey.de.
• Use only original BESSEY spare parts
• The clamping tool must not be used for lifting, pulling or leaning.
• The clamping tool must not be used to secure cargo during transportation.
• The clamping tool may only be tightened by hand without any additional aids.
• The clamping tool must not be used for permanent installation.
• Regularly check that the end stop is working properly when using clamps.

Material/Surface

• Upper and lower section made of reinforced PA6 plastic with inserted sheet metal parts for reinforcement

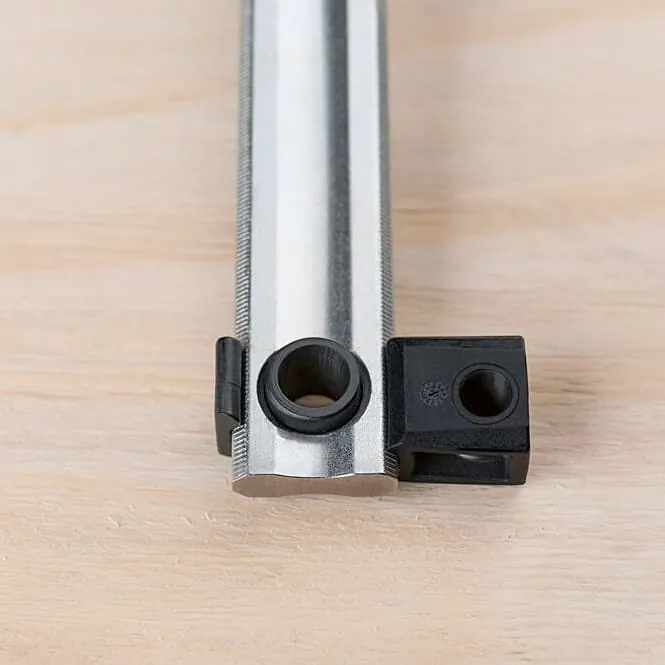

• Hollow profile rail made of steel, cold-drawn, galvanised
• Spindle with trapezoidal thread in rolled steel, burnished
• Handle made of 2-component plastic
• Pressure plate made of steel, cold pressed, galvanised
• Protective caps made of plastic

Care instructions

• Regular maintenance is necessary – only then can a secure hold be guaranteed (no slipping of the sliding bracket).
• Clean the rails with solvent.
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents.
• Clean the fluting on the rails with a steel brush.
• Clean and oil the spindle regularly.
• If the lower part slips, turn the grub screw a 1/4 turn further (TG, KRE, KREV only).
