Bosch 500 – 540 nm Professional Rotation Laser, GRL 18V-4-34 CVG
Roll over the image to zoom in
Key Features
- Product Type: Rotation Lasers
- Weight: 3.1 kg
- Laser Diode: 500 – 540 nm, <1 mW
- Laser Class: 2
- Working Range with Receiver: 400 m (diameter)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
Price on request
Out of Stock
3 Business Days
1
90132000
Download Product LeafletNot available
Download Bosch CatalogueNot available
Download Bosch CatalogueNot available
Product Information
Highlights

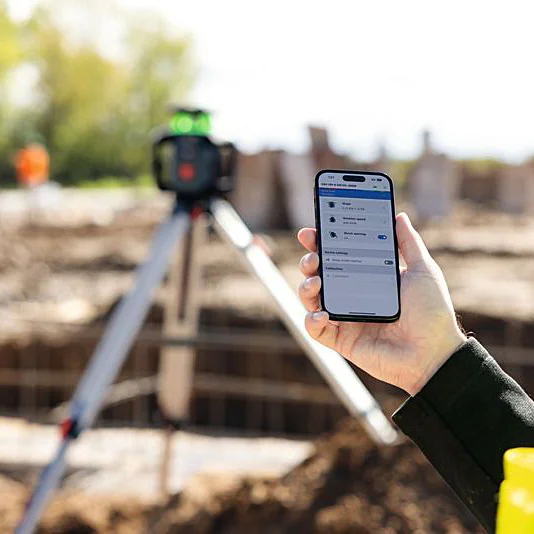

With a robust build and cutting-edge features, the GRL18V-4-34CVG rotary laser is made to boost your efficiency on even the toughest jobs. Its intuitive dial-in slope is adjustable up to +/- 15% to save you time and ensure precision, while a keypad featuring bi-colour segment LEDs offers clear visibility of the tool's status even from a distance. With protective handles and a reinforced top-cap for impact resistance, as well as an IP66 rating for protection against dust and water, the GRL18V-4-34CVG is built for the toughest jobsites. Featuring a green laser beam, the GRL18V-4-34CVG gives you clear visibility in any conditions. Connectivity with the Levelling Remote App allows faster slope setting and access to additional functions like sweep, speed and sleep modes and with dual power source capabilities, you can work uninterrupted using 18V LI-batteries or 4 C-cells with the BA 18-C adapter.
Features:

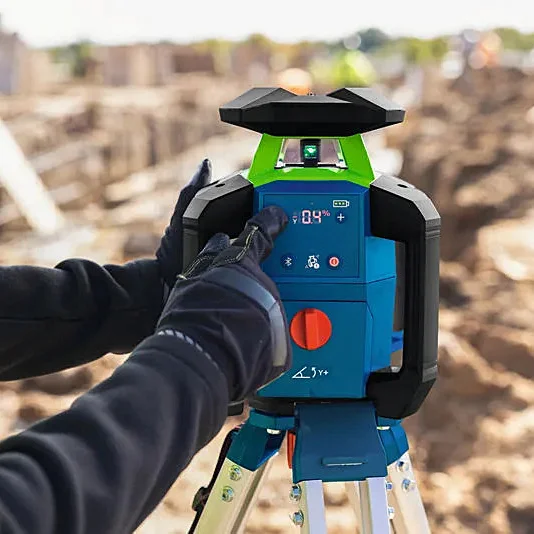

- Intuitive dial-in slope with a bi-colour LED keypad to save time and ensure clear visibility from a distance
- IP66 rating and 1.5 m tripod tip-over resistance for peace of mind on tough jobsites

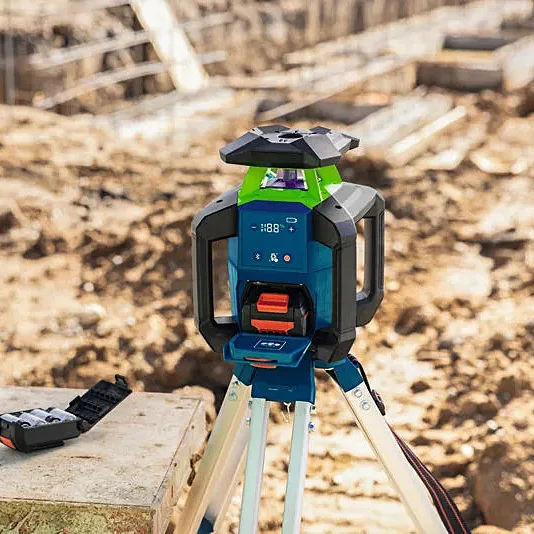

- Powered by 18V LI-batteries or alkaline C-cells for uninterrupted work
Equipment & Application

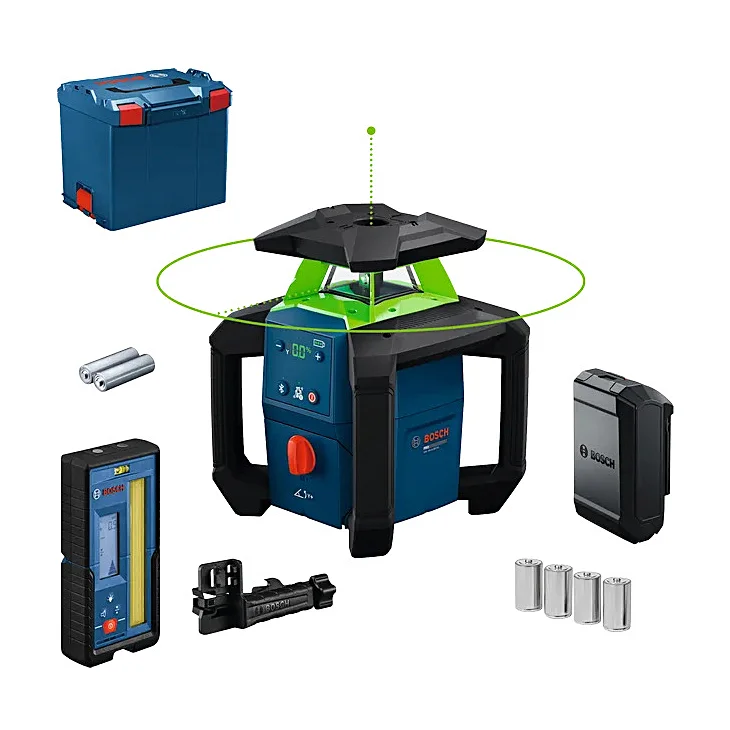

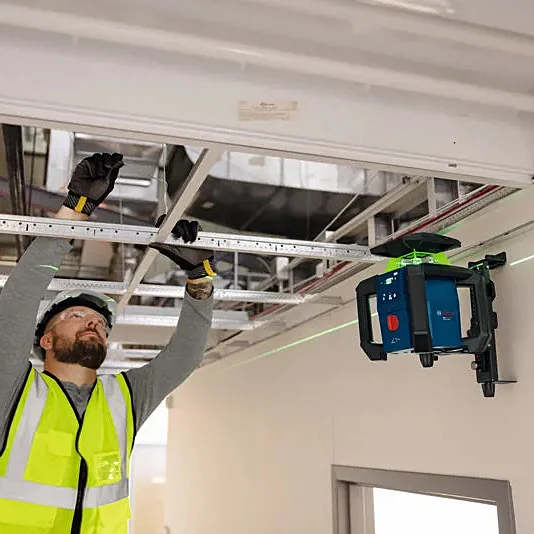

This rotary laser is perfect for single slope applications like pipe installation and building ramps with up to 15% slope. Also supporting interior tasks on larger job sites, such as suspended ceiling installation and wall partitioning, the GRL18V-4-34CVG gives you the versatility to work with speed and confidence – no matter the job.What’s Included in this Package :
| Rotational laser Part Number: 0 601 061 H01 |
| 4 x 1.5 V LR14 battery (C) |
| Battery adapter BA 18-C Part Number: 1 608 M00 C4B |
| 2 x 1.5 V LR6 battery (AA) |
| Laser Receiver LR 45 Professional Part Number: 0 601 069 L00 |
| L-BOXX 374 Part Number: 1 600 A01 2G3 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Battery voltage | 18V |
|---|---|
| Laser Diode | 500 – 540 nm, <1 mW |
| Operating Temperature | -10 ~ 50°C |
| Storage Temperature | -20 ~ 50°C |
| Laser Class | 2 |
| Working Range with Receiver | 400 m (diameter) |
| Accuracy | ± 3.0 mm at 30 m vertical, ± 1.5 mm at 30 m horizontal |
| Self-levelling Range | ±15% (± 8.5°) |
| Dust and splash protection | IP66 |
| Rotation Speed | 150/300/600 min-¹ |
| Tripod Thread | 2 x 5/8 inch |
| Colour of Laser Line & Plumb Points | Green |
| Projection | 1 x 360° line |
| Compatible Laser Receivers | LR 45 |
| Power Supply | 4x 1.5V LR14 (C), 18V Li-ion Battery |
| Dimensions (W x L x H) | 360 x 440 x 390 mm |
