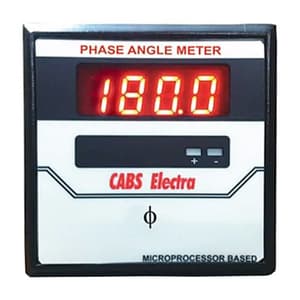

Cabs Electra 0.002 Ohm / 96 x 96 mm Phase Angle Meter, CE-0102D
Roll over image to zoom zoom_in
- Product Type: Digital Panel Meters
- Voltage Input: 250 V Max
- Frequency Range: 40-100 Hz
- Accuracy: ±1%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4224.4 (Incl. of all taxes)
₹3580+ ₹644.4 GST (18%)
MRP ₹5265
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Digital Phase Angle Meter, 96 x 96 mm sq, can measure Phase Angle between Voltage and Current.
Features:
- Micro-Controller Based
- Size Available 96 x 96 ‘or’ 96 x 48 mm sq
- Display 3-1/2 Digits Red LED Display
- Range -180.0° to + 180.0°
- Input 300V AC & 5A AC
- Voltage to Voltage & Voltage to Current options available
- Auxiliary Power Supply 230 / 110V AC 50Hz (Any One)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.DI.00017 |
|---|---|
| Product Type | Digital Panel Meters |
| Model No | CE0102D |
| Type of Product | Phase Angle Meter |
| Input Impedance (Current Circuit) | 0.002 ohm |
| Input Impedance (Voltage Circuit) | 1 Meg. ohm |
| Voltage Input | 250 V Max |
| Frequency Range | 40-100 Hz |
| Accuracy | ±1% |
| Dielectric | 2 KV for 1 minute |
| Control Power | 230 Volt AC ± 10%, 50/60 Hz, 3VA |
| CT Secondary | 5 Amp or 1Amp (on order) |
| Current Input | 7A Max continuous at any current terminal |
