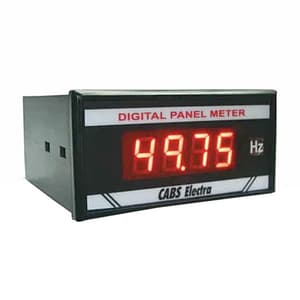

Cabs Electra 0 - 999.9 Hz / 96 x 96 mm Panel Flush Mounting Frequency Meter, CE-500F 96x96
Roll over image to zoom zoom_in
- Product Type: Digital Panel Meters
- Range: 0 - 999.9 Hz
- Size: 96 x 96 mm
- Max. depth: 105 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1570.58 (Incl. of all taxes)
₹1331+ ₹239.58 GST (18%)
MRP ₹1958
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
4 Digits, Panel Flush Mounting, 96 X 96 mm sq, Input 50 – 500V, Measuring range 0 – 999.9 Hz.
Features:
- Microprocessor based 4 digit display.
- Available for ranges: 99.99Hz, 999.9 Hz, 10KHz and 100KHz ranges.
- Available in 96 * 96 and 96*48 mm Bezel sizes.
- Auxiliary Power Supply: 230V AC 50Hz / 110V AC 50Hz / DC Auxiliary inputs also available
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.DI.00009 |
|---|---|
| Product Type | Digital Panel Meters |
| Model No | CE500F |
| Type of Product | Frequency Meter |
| Display | 4 digit LED |
| Accuracy | ± 0.02 of the reading |
| Range | 0 - 999.9 Hz |
| Size | 96 x 96 mm |
| Max. depth | 105 mm |
| Mounting Type | Flush |
| Aux. Supply | 230V, 50Hz/110V, 50Hz/24 ~ 110V D.C. (Any One) |
| Input Voltage | 20-500 Volts |
| Power Consumption | AC 5VA |
| Operating Temperature Range | 0°C to 50°C |
| Storage Temperature Range | 10 ~ 70ºC |
| Max relative humidity | 95% |
| Dielectric Strength | AC 2KV/1Min, AC 3 KV/MIN |
