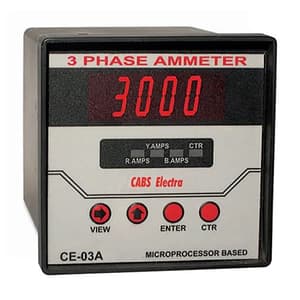

Cabs Electra 3-1/2 Digits Three Phase Ammeter With Built-in Selector Switch, CE-03A
Roll over image to zoom zoom_in
- Product Type: Digital Panel Meters
- Display: 3-1/2 Digits Red LED Display
- Accuracy: 1% of full load
- Control Power: 230 Volt AC ± 10%, 50/60 Hz, 3VA
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2275.04 (Incl. of all taxes)
₹1928+ ₹347.04 GST (18%)
MRP ₹2835
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Microprocessor Based, 96 x 96 mm sq, with in built three phase selector switch, displays Current in three phases, CT Ratio programmable. Programmable up to 3000A AC.
Features:
- Designed using microprocessor based multiplexing technique
- Can sense any changes in the line currents
- These are CT Operated meters and are factory set either 1A or 5A CT Secondary
- Displays phase currents for a three phase system
- With built-in selector switch
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.DI.00023 |
|---|---|
| Product Type | Digital Panel Meters |
| Model No | CE03A |
| Type of Product | Ammeter |
| Display | 3-1/2 Digits Red LED Display |
| Accuracy | 1% of full load |
| Control Power | 230 Volt AC ± 10%, 50/60 Hz, 3VA |
| Current Input | 7A Max Continuous At Any Current Terminal |
| CT Secondary | 5 Amp or 1Amp (on order) |
| Dielectric Strength | 2 KV for 1 minute |
| Operating Temperature | 0ºC to 70ºC |
| Storage Temperature Range | -20ºC to 85ºC |
| Relative Humidity | 95% |
| Measures | Ir, Iy, Ib |
