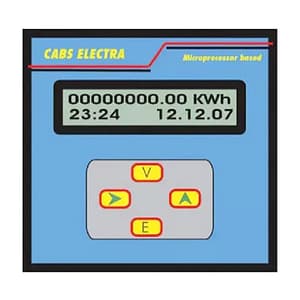

Cabs Electra Three Phase kWh Meter (Three Wire Two Element), CE-0303EML
Roll over image to zoom zoom_in
- Weight: 0.7 Kg
- Product Type: Digital Panel Meters
- Type of Product: kWh Meter
- Range: 99999999.99 KWh
- Auxilliary supply: 110/230V +/- 10%, 50 Hz
- CT Secondary: 1 Amps or 5 Amps
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5016.18 (Incl. of all taxes)
₹4251+ ₹765.18 GST (18%)
MRP ₹6251
SAVE 32%
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Digital KWh Meter with LCD Display for Three phase Three wire Two element loads.
Features:
- Microprocessor-based Three-phase and single-phase KWh meters
- Options of Run Hour or Real Time Clock Display
- User Programmable CT/ PT Ratios to Give a Direct Reading.
- Password Protected for CT/PT ratios.
- Available for 415V(LT) and 110 V(HT) systems and for
- 1 Amp and 5 Amp CT secondary.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.DI.00014 |
|---|---|
| Product Type | Digital Panel Meters |
| Model No | CE0303EML |
| Type of Product | kWh Meter |
| Range | 99999999.99 KWh |
| Size | 96 x 96 mm |
| Range of operation | 0.5 LAG – 0.5 Lead |
| Auxilliary supply | 110/230V +/- 10%, 50 Hz |
| CT Secondary | 1 Amps or 5 Amps |
| PT secondary | 110V, 63.5V or 230 V direct |
| Applications | 3 Phase 3 wire/3 phase 4 wire |
| Accuracy | 0.5% or 1% at UPF/Full load |
| Display | 16 Character x 2 line backlit LCD |
| Clock | 24 Hr mode, +/- 1 min/months |
| Operating Temperature | –70 Deg C |
| Storage Temperature Range | 20 – 85 Deg C |
| Dielectric | 2 KV for 1 Min |
| Input Impedance | 0.002 Ohms for Current Circuit, 1 Meg Ohms for Voltage Circuit |
| Dimensions | Bezel 96 mm x 96 mm, Cutout 92 mm x 92 mm, Depth 60 mm with out connectors |
