Crystal 12 inch / 300 x 80 x 65 mm Universal Surface Gauges, AA-1411

Shop all Crystal

SKU: HA.MA.UN.00007

Model: AA-1411

Roll over image to zoom zoom_in
  1. Crystal 12 inch / 300 x 80 x 65 mm Universal Surface Gauges, AA-1411

  • Product Type: Universal Surface Gauges
  • Length (mm): 300 mm
  • Width (mm): 80 mm
  • Height (mm): 65 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

1074.98 (Incl. of all taxes)

911+ ₹163.98 GST (18%)

MRP ₹990

SAVE 8%



3 Business Days

1 Pcs

8505

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

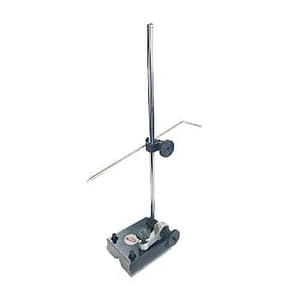

Highlights

  • The base is made from case hardened steel, ground on the bottom and at one end.
  • There is a depression in each side for the thumb and fingers and the groove in the base adapts it for use on cylindrical as well as flat surfaces.
  • There are two gauge pins frictionally held, which can be pushed down and used against the end of a surface plate on a T- slot for linear work.
  • The fine adjustment feature makes it possible to obtain quick and accurate settings.
  • The spindle which passes through the rotating head or lower sleeve can be set above or below the base. The hardened and ground scriber can be set at any position on the spindle which in turn can be set at any angle.


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUHA.MA.UN.00007
Product TypeUniversal Surface Gauges
Model NoAA-1411
Length (mm) 300 mm
Width (mm) 80 mm
Height (mm) 65 mm
Series AA-141
