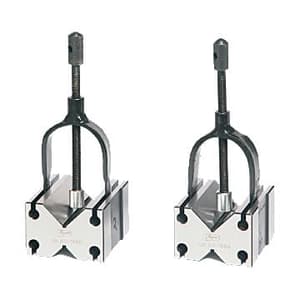

Crystal 4 inch / 125 x 90 x 70 mm Hardened & Ground 'V’ Blocks With Clamps (Pack of 2 Pcs), AA-1704
Roll over image to zoom zoom_in
- Product Type: 'V’ Blocks With Clamps
- Length (mm): 125 mm
- Width (mm): 90 mm
- Height (mm): 70 mm
- Clamping Range ( Ø D): 5 - 60 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹11279.62 (Incl. of all taxes)
₹9559+ ₹1720.62 GST (18%)
MRP ₹10390
SAVE 8%
3 Business Days
2 Pcs
8505
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The 'V’ Block has two 'V’ angles of different sizes to take jobs of various dimensions. By means of the clamp, the work can be held rigidly to the 'V’ Block. The top 'V’ and bottom 'V’ are parallel within ± 3 microns and its squareness to the end faces and height variation to the 'V Block in a pair is within ± 3 microns.
Features:
- V’ Blocks are Hardened & Ground to 55 HRC + 2 HRC.
- The top ’V’ and bottom ’V’ are parallel within + 3 microns and its squareness to the end faces and height variations to the ’V’ Block in a pair is within + 3 microns.
- Supplied with Clamp for holding a job.
- ’V’ Blocks are so designed that clamps do not protrude over the sides.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.MA.VB.00003 |
|---|---|
| Product Type | 'V’ Blocks With Clamps |
| Model No | AA-1704 |
| Length (mm) | 125 mm |
| Width (mm) | 90 mm |
| Height (mm) | 70 mm |
| Series | AA-170 |
| Size (inch) | 4 inch |
| Clamping Range ( Ø D) | 5 - 60 mm |
