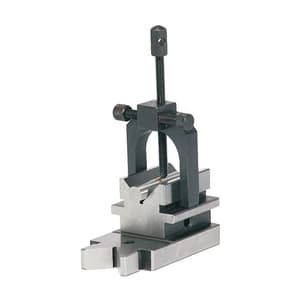

Crystal 48 x 90 mm Hardened & Ground Tool Room 'V' Blocks, AA-1751
Roll over image to zoom zoom_in
- Product Type: 'V’ Blocks With Clamps
- Clamping Range (Ø D): 30 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹7121.3 (Incl. of all taxes)
₹6035+ ₹1086.3 GST (18%)
MRP ₹6560
SAVE 8%
3 Business Days
1 Pcs
8505
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Hardeness 58 Rc+- 2 Rc
- The sides are ground parallel and the ‘V’ groove is ground central and parallel to the sides and the base.
- The block is 48mm square, and the base length is 90mm. An added feature is the tapped holes used for mounting the ‘V’ Block on faceplates or angle plates.
- The block also has one M10 tapped hole in the base and one M8 on each side so that it can be attached to an angle plate. The groove at the stepped end is at a right angle to the base and is handy for holding threaded studs, round pins.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.MA.VB.00027 |
|---|---|
| Product Type | 'V’ Blocks With Clamps |
| Model No | AA-1751 |
| Series | AA-175 |
| Size In mm | With one V Block & One Clamp 48 square 90L |
| Clamping Range (Ø D) | 30 mm |
