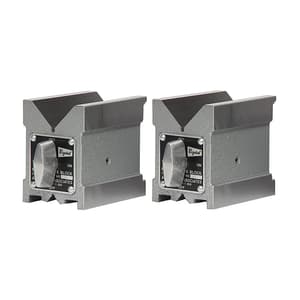

Accuracy for Squareness Flatness & Parallelism within 5 microns. 'V’ Blocks are required for Quality Control, Tool Room and Standard Room. "Crystal" Brand Magnetic 'V’ Blocks have a high magnetic pull, hence they can be used for drilling and grinding (both wet and dry) and even for light milling work.

The 'V’ Block has a total of three magnetic surfaces. Top and Bottom with 90 'V’ angle and end surface opposite to switch. All three magnetic surfaces and the two sides are carefully ground. Their accuracy for flatness, parallelism, and squareness is within 0.005 mm for 2", 3", 4" & 6" 'V’ Blocks. When turned "ON" all three magnetic surfaces are activated Simultaneously.

The permanent magnet holds the work firmly in the 'V’ and if the block rests on a magnetically conductive surface, it is held firmly to this surface. The magnetic pull is constant and will not decrease even after long use. The magnetic system is shielded from penetration of moisture, cannot be damaged by coolants or other fluids.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
