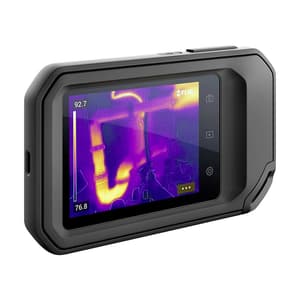

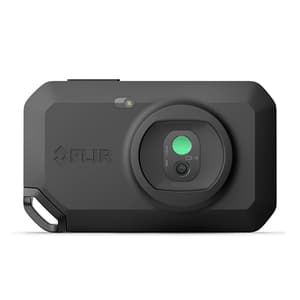

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical / mechanical, building and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.

Features:

• Image Modes: Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
• Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
• Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
• Set up Commands: Local adaptation of units, Language, Date and time formats, Screen brightness (High, Medium, Low)
• Auto orientation, Focus free, Video Lamp
• Gallery: Thumbnails and custom folder structure
• Camera software update: Automatic over Wi-Fi & USB via computer

Reduce diagnostic time, simplify reporting:

• Identify and troubleshoot: Quickly find hidden faults and reduce diagnostic time with MSX and 128 x 96 true thermal imaging
• Document & Share:Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
• Rugged, reliable, compact: Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop

Supported Languages:

• Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish

Technical Data:

Communication & Data Storage
Bluetooth	PAN
Image File Format	Standard JPEG, 14-bit measurement data included
Image Storage	>5000 images
USB	USB 2.0, Type-C connector
WiFi	802.11 a/ac/b/g/n (2.4 and 5 GHz)
Power
Battery Capacity	1800 mAh
Battery charge life	>500 cycles
Battery operating time	4 hours
Battery Type	Rechargeable built-in Lithium ion battery
Battery voltage	3.7V
Charging system	USB-C (1 A)
Charging Temperature	35°C (95°F)
Charging Time	2 hours
External Power Operation	5V, USB-C
Power Management	Adjustable stand-by and automatic shut-down
Environmental & Certifications
Drop test	2m (6.56 ft)
EMC	EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B
Encapsulation	Camera housing and lens: IP54 rated (IEC 60529)
Humidity (operating and storage)	IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles
Magnetic fields	EN 61000-4-8 level 5
Operating Temperature Range	-10 to 50°C (14 to 122°F)
Radio Spectrum	ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2
Relative Humidity	95% relative humidity 25 to 40°C (77 to 104°F) non-condensing
Safety	EN 62368-1
Shock	25 g (IEC 60068-2-27)
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Tripod Mounting	UNC ¼"-20 (built-in)
Vibration	2 g (IEC 60068-2-6)

Accuracy:

• 0 to 100°C (32 to 212°F): ±3°C (±5.5°F);
• 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)

Package Content:

• 1x Compact Thermal Camera
• 1x Tripod Adaptor (T199564)
• 1x Cable Adaptor (Cable USB 2.0 Type A - Type C 1.0 m Black (T911940ACC))
• 1x Nylon Pouch (T130129ACC)
