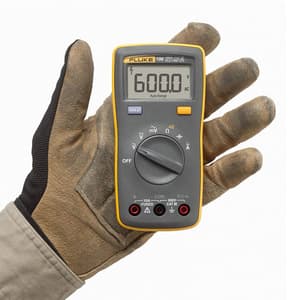

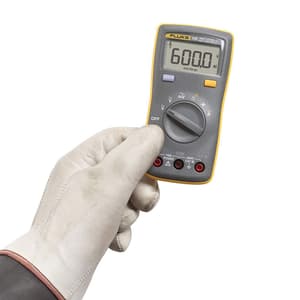

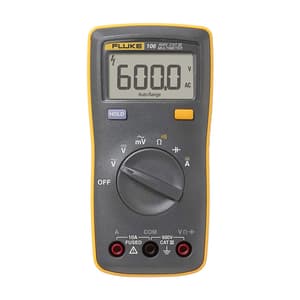

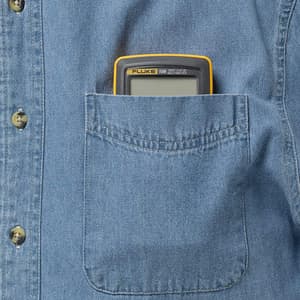

The Fluke 106 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

Features:

• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A and current
• Data hold.

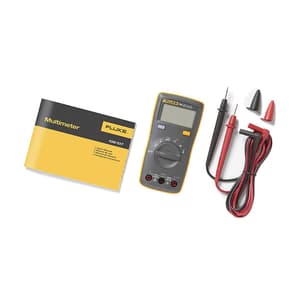

What's Included In This Package:

• Fluke 106 Palm-sized Digital Multimeter
• Tl75 Hard Point Test Lead Set
• 2 AAA Batteries (Installed)
• User’s Manual

Accuracy Specifications:

 Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of ±([% of Reading] + [Number of Least Significant Digits]


Function		Range	Resolution	Accuracy
AC Volts (40 Hz to 500Hz)1		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode Test2		2.000 V	0.001 V	10 %
Resistance (Ohms)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance3		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency4 Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA
Duty Cycle4		1 % to 99 %	0.1 %	NA
AC Current (40 Hz to 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	600 V 1	>10 MΩ <100 pF 2	>60 dB at dc, 50 Hz or 60 Hz	−
\AC Millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC Volts	600 V 1	>10 MΩ <100 pF	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ.
Relative Humidity
Operating Humidity		Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range		≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Altitude
Temperature Coefficient		0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Size (HxWxL)		142 mm x 69 mm x 28mm
IP Rating		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment		IEC 61326-1: Portable
Electromagnetic Compatibility		Applies to use the Korea only.  Class A Equipment (Industrial Broadcasting and Communication Equipment)1
This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
