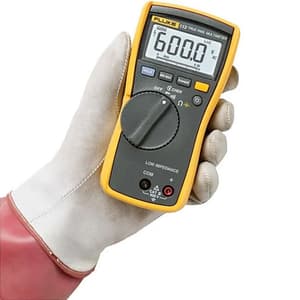

The Fluke 113 Digital Multimeter gives users the means to quickly and easily do basic testing. It is easy to use and is packed with the features needed to repair most electrical problems. The 113 features a large, backlit display for easy visibility in low-lit work environments. Plus, the integrated holster includes probe holders on the back, so your test leads can always be kept organized and where you need them.

Make Measurements Quickly With The Fluke 113:

Whether you’re a utility worker, linesman, electrician, technician, anyone else working with basic electrical testing, the Fluke 113 includes the measurement features you need to tackle your job. The Fluke VCHEK™ LoZ low impedance measurement function lets users perform tests for voltage or continuity from the same dial position. Please note that low impedance LoZ measurements will cause a low load on a circuit protected by an RCD, which will trip powered GFCI and RCD circuits when measuring Phase to Earth.

The meter also displays AC or DC voltage, depending on what was detected, while also rejecting ghost voltages from adjacent wires.  If no voltage is detected, a continuity test is performed. The Min/Max function lets you record signal fluctuations. The Fluke 113 digital multimeter can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, a backlight, and a much larger display that’s easier to view, this meter is a must-have for every toolbox.

Features:

• VCHEK™ LoZ low impedance measurement function to test for either AC or DC voltage, or show continuity if the voltage is not detected.
• Large backlit display
• CAT IV 600 V safety rated.

What's Included In This Package:

• Fluke TL75 test leads
• Holster
• Users manual
• 9 V battery (installed)

Specifications:

VCHEK1 2 3	Range	6.000 V / 60.00 V / 600.0 V
	Resolution	0.001 V / 0.01 V/ 0.1 V
	Accuracy	DC, 45 to 500 Hz: 2.0% + 3 500 Hz to 1 kHz: 4.0% + 3
Diode test4	Range	2.000 V
	Resolution	0.001 V
	Accuracy	2.0% + 3
Continuity4	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer
Ω4	Range	600.0 Ω / 6.000 kΩ / 60.00 kΩ
	Resolution	0.1 Ω / 0.001 kΩ / 0.01 kΩ
	Accuracy	0.9% + 2 / 0.9% + 1 / 0.9% + 1
Capacitance4	Range	1000 nF / 10.00 μF / 100.0 μF / 9999 μF
	Resolution	1 nF / 0.01 μF / 0.1 μF / 1 μF
	Accuracy	1.9% + 2 100 μF - 1000 μF: 1.9% + 2 1000 μF: 5% + 20
All VChek voltage ranges are specified from 60 counts to 100% of range. Because inputs below 60 counts are not specified, it is possible and normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. Crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. Minimum measureable input in VCHEK autorange is 3 VDC. For measurements below 3 VDC, push Range button twice to get to 6 VDC manual range. After measuring voltage, a wait time of 1 minute is required to maintain accuracy of ohms, capacitance, diode test, and continuity.
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600V
EMI regulations	Complies with FCC Part 15, Class B
VCHEK	Input impedance (nominal)	~3 kΩ < 300 pF
VCHEK	Common mode rejection ratio (1 kΩ unbalanced)	> 60 dB at DC, 50 or 60 Hz
Ω	Open circuit test voltage	< 2.7 VDC
	Full scale voltage	< 0.7 VDC
Diode test	Open circuit test voltage	2.7 VDC
	Full scale voltage	2.000 VDC
Ω	Short circuit current	< 350 μA
Diode test	Short circuit current	< 1.0 mA
