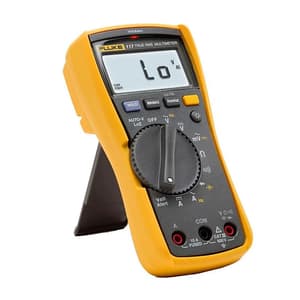

Fluke 117: Compact Digital Multimeter Designed For Electricians

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-RMS meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for:

• Resistance
• Continuity
• Frequency
• Capacitance
• Min/Max/Average.
• Compact, true-RMS digital multimeter for electricians
• Includes multimeter, 4mm silicone test leads, holster, and manual
• Integrated non-contact voltage detection keeps you safe
• Prevent false readings from ghost voltage with selectable low-impedance mode.

Features:

• For The Everyday: A digital multimeter designed to be hauled everywhere with you, part of your everyday tools. The 117 is built for demanding applications like: Commercial buildings / Hospitals / Schools

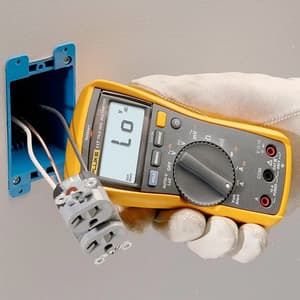

• Non-Contact Voltage Detection: Keep yourself safer with integrated VoltAlert™ technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.
• Automatic AC/DC selection: Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.

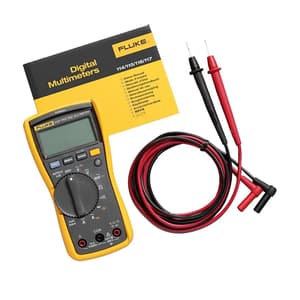

What's Included In This Package:

• 4 mm silicone test lead set
• Holster
• User manual

Frequently Asked Questions

What Is The Difference Between The Fluke 115 & The Fluke 117

While similar, the Fluke 115 and the Fluke 117 meters are designed for slightly different purposes. The Fluke 115 is a compact true-RMS digital multimeter that’s great for field service. The Fluke 117 is designed specifically for electricians. With a quick turn of the dial both units provide measurements for:

• Resistance
• Continuity
• Frequency
• Capacitance
• Min/Max/Average



The Fluke 117 offers non-contact voltage detection and has a selectable low-impedance mode to prevent false readings from ghost voltage. The 117 also features an automatic selection of AC or DC voltage, depending on what was detected.

Does The Fluke 117 Read Milliamps?

The Fluke 117 Electrician’s Multimeter includes a 10 amp current range for making both AC or DC current measurements. The maximum resolution is 1 milliamp.

What’s The Best Multimeter For Electricians?

The Fluke 117 digital multimeter is designed for electricians. The Fluke 117 provides highly accurate measurements for frequency and capacitance as well as Min/Max/Average readings. Non-contact voltage detection offers a fast way to determine if live voltage is present in the area being tested. The low impedance mode prevents detection of ghost voltages.

Accuracy Specifications:

DC millivolts	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
DC amps	Range/resolution	6.000 A / 0.001 A   10.00 A / 0.01 A
	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz
	Accuracy	0.1% + 2
All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
