The Most Complete Stakeless Earth Ground Tester

The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in everyday, on-the-job industrial environments.

Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay on line—identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system.

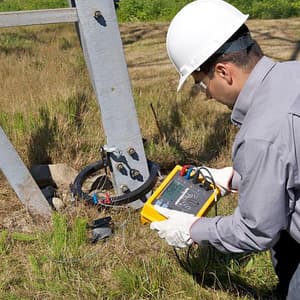

Stateless Earth Ground Measurement Testing

• You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil
• The Fluke 1625-2 earth ground tester can measure earth ground loop resistances using only clamps
• With this test method, two clamps are placed around the earth ground rod and each is connected to the tester

The Fluke 1625-2 Improves Your Earth Ground Testing Process With:

• Automatic Frequency Control (AFC) - identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value
• R* measurement - calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
• Adjustable limits - for quicker testing

The Fluke 1625-2 Gives You Versatility In Earth Ground Testing

• 3- and 4-pole fall-of-potential, earth resistance loop testing
• 4-pole soil resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stateless earth ground rod testing using 2 clamps

Offers You Simpler, Faster Earth Ground Tests Than Ever Before

• The 1625-2 offers internal memory storage up to 1500 records
• Accessible via USB port for rapid data transfer and viewing of results
• This earth ground tester also gives you world-class accessories that take the tedium out of earth ground testing

Features:

The Fluke 1625-2 is a unique earth ground tester that can perform all four types of earth ground measurement:

• 3- and 4-Pole Fall-of-Potential (using stakes)
• 4-Pole Soil Resistivity testing (using stakes)
• Selective testing (using 1 clamp and stakes)
• Stateless testing (using 2 clamps only) Adjustable limits - for quicker testing
• IP56 rated for outdoor use
• Rugged carrying case.

Additional Tool Features:

• Heavy-duty stakes can be hammered into dry, hard soil.
• And new color-coded wires make setup simple and help eliminate mistakes and speed up setup and tear downtime as much as 50%
• IP56 rated for outdoor use
• Rugged carrying case.

What's Included In This Package:

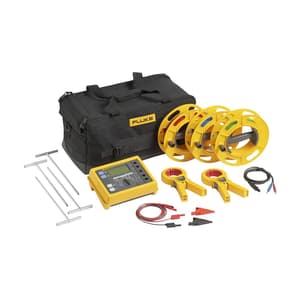

• Fluke 1625-2 GEO Earth Ground Tester Kit

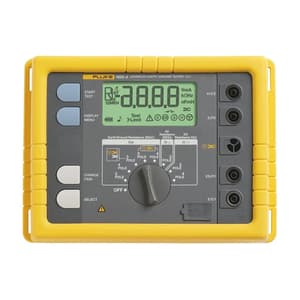

• GEO Earth Ground Tester
• User’s Manual
• Batteries
• Quick Reference Guide
• USB Cable
• 2 Clamps

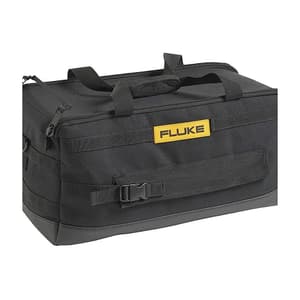

• C1620 Professional Carrying Case
• 4 Earth Ground Stakes
• 3 Cable Reels

General Specifications:

Memory	Internal memory storage up to 1500 records accessible via USB port
Measuring function	Interference voltage and frequency, earthing resistance 3- and 4-pole with/without a clip-on current transformer, resistance 2-pole with AC, 2- and 4-pole with DC
Display	4 digit (2999 Digit) - 7 segment liquid crystal display, with improved visibility
Operation	Central rotary switch and function keys



Temperature Range
Operating temperature	-10°C to 50°C (14°F to 122°F)
Storage temperature	-30°C to 60°C (-22°F to 140°F)
Temperature coefficient	±0.1% of reading/°C < 18°C > 28°C
Type of protection	IP56 for case, IP40 for battery door according to EN60529
Max voltage	Warning – socket "clamp" to socket E, ES, S or H
	Terms = 0 V
	Sockets E, ES, S or H to each other in any combination, max. Terms = 250 V (pertains to misuse)
Safety	Protection by double and/or reinforced insulation. Max. 50 V to earth per IEC61010-1. Pollution degree 2
Quality standard	Developed, designed and manufactured to comply with DIN ISO 9001
External field influence	Complies with DIN 43780 (8/76)
Auxiliary power	6 x 1.5 V alkaline (IEC LR6 or type AA)
Battery life span	With IEC LR6/type AA: typ. 3,000 measurements (RE+RH ≤ 1 kΩ)
	With IEC LR6/type AA: typ. 6,000 measurements (RE + RH > 10 kΩ)
Dimensions (W x H x D)	250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
Weight	≤ 1.1 kg (2.43 lb) without accessories 7.6 kg (16.8 lb) incl. accessories and batteries in carrying case
Case material	Polyester



Measurement of Interference Voltage DC + AC (UST)
Measuring limits of error: method	Full-wave rectification
Measuring range	1 V to 50 V
Display range	0.0 V to 50 V
Resolution	0.1 V
Frequency range	DC/AC 45 Hz to 400 Hz sine
Accuracy	±(5% of rdg + 5 digit)
Measuring sequence	Approx. 4 measurements/s
Internal resistance	Approx. 1.5 MΩ
Max. overload	Terms = 250 V



Earthing Resistance (RE)
Measuring method	Current and voltage measurement with the probe as IEC61557-5
Open circuit voltage	20/48 V, AC
Short circuit current	250 mA AC
Measuring frequency	94, 105, 111, 128 Hz selected manually or automatically. (AFC) 55 Hz in function R1
Noise rejection	120 dB (16 2/3 , 50 , 60, 400 Hz)
Max. overload	Terms = 250 V
