The Multipurpose Solution To Cable Location

The Fluke 2042 is a professional general-purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits, and locating interruptions and short-circuits in cables and electrical floor heating systems.

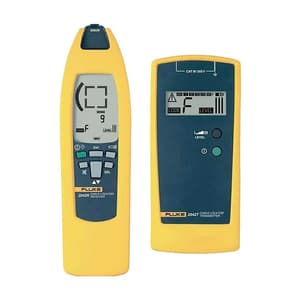

It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.

Features:

• For all applications (live or dead cables) without additional instruments
• Set includes a transmitter and a receiver
• Proven digitally coded sender signal guarantees clear signal identification
• Transmitter with LC-display for transmitting level, transmitting code, and external voltage
• Receiver with a backlight LC-display for the level of receiving the signal, code of receiving the signal, and live voltage indication
• Automatic or manual adjustment of receiving signal sensitivity
• Acoustical receiving signal switchable
• Auto-Power-Off
• Additional torch lamp function for working in dark environments
• Additional transmitters are available for extension of to distinguish between several signals
• Safety Conformance: All inputs of the Fluke 2042 are protected to EN61010-1 CAT III 300V rating.

Specifications:

Voltage measurement range	Transmitter	12 V, 50 V, 120 V, 230 V, 400 V
Frequency range	Transmitter	0 - 60 Hz
Output signal	Transmitter	125 kHz
Voltage	Transmitter	Up to 400 V AC/DC
Tracing depth cable location	Receiver	0 - 2.5 m wall/underground cables
Main voltage detection	Receiver	0 - 0.4 m
Environmental specifications
Operating temperature	Transmitter	0 to 40°C
	Receiver	0 to 40°C
Storage temperature	Transmitter	-20°C to +60°C
	Receiver	-20°C to +60°C
Humidity (without condensation)	Transmitter	Max. 80% relative
	Receiver	Max. 80% relative
Operating altitude	Transmitter	Up to 2000 m
	Receiver	Up to 2000 m
Mechanical and general specifications
Size	Transmitter	190 x 85 x 50 mm
	Receiver	250 x 65 x 45mm
Weight	Transmitter	0.45 kg
	Receiver	0.36 kg
Batteries	Transmitter	6 pc Batteries 1.5V
	Receiver	1 pc Battery 9V
