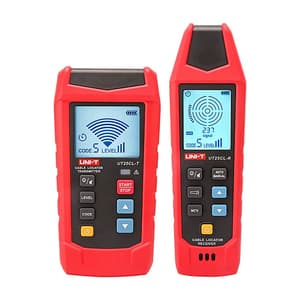

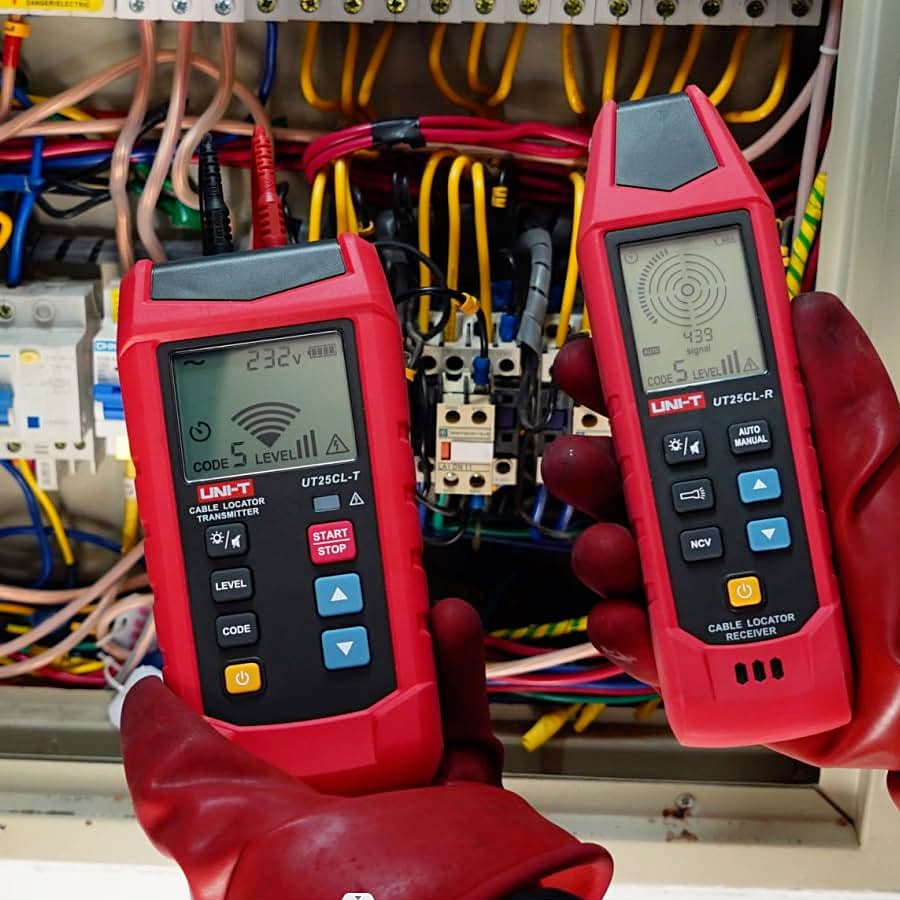

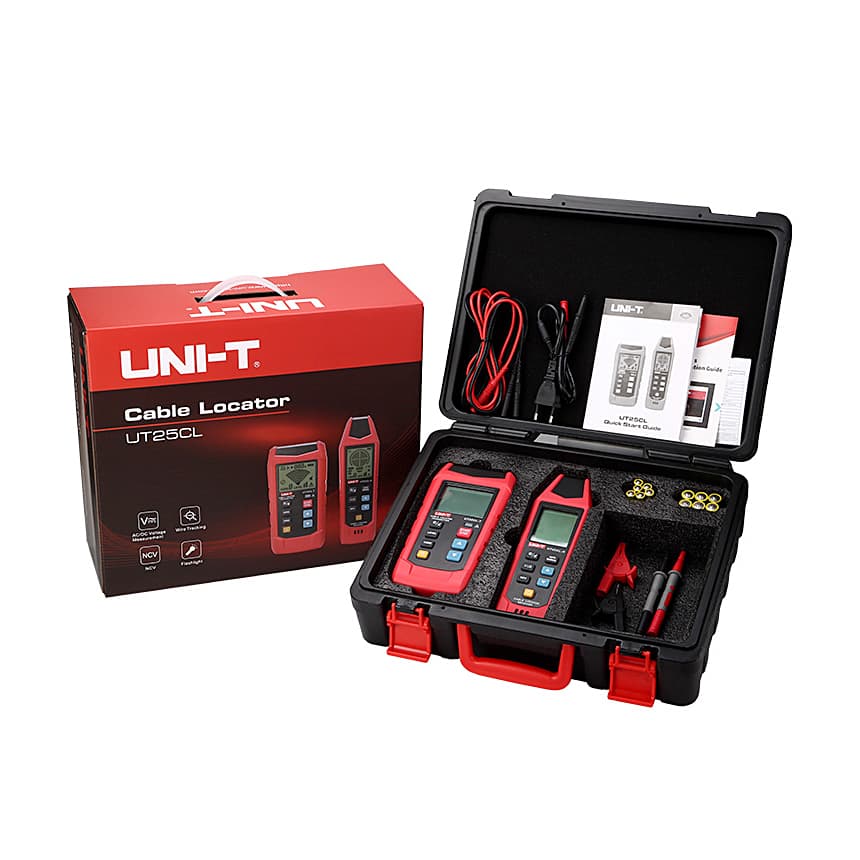

The UT25CL Cable Locator is a powerful device consisting of a transmitter and receiver. With state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs. This tool detects conductors, identifies interruptions or short circuits, traces underground cables, and locates fuses and associated devices. It also detects short circuits and open circuits in underfloor heating, traces metal water pipes and heating pipelines, and supports up to 8 transmitters. It is perfect for residential or commercial projects.

Features:

• Find conductors inside the wall, and detect conductor interruptions or short circuits

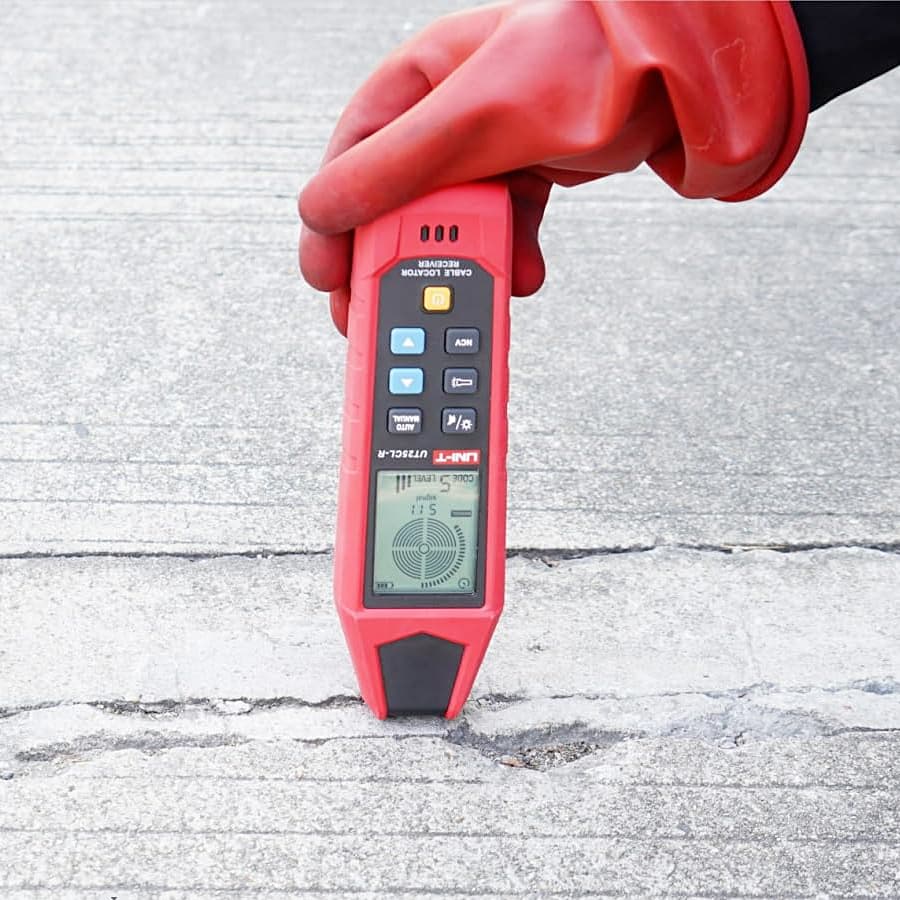

• Trace the underground cable paths
• Locate fuses and devices associated with the fuses
• Identify short circuits and open circuits in the underfloor heating(metal)
• Trace metal water pipes and metal heating pipelines
• Adjust the sensitivity of the receiver automatically or manually (3 adjustable levels)
• Flashlight and backlight functions
• Automatic shutdown function
• One receiver can support up to 8 transmitters
• Energized wire detection: up to 480V(AC/DC)
• LED and buzzer indications
• CE, RoHS
• Flashlight & Backlight / Manual sensitivity adjustment

Receiver (Technical Data):

Transmitter
Output signal	33KHZ
Energized wire voltage ragne	AC/DC 8~480V;  AC: 50/60Hz/ 2.5% ±3deg
Screen	Segment code LCD (TN; Translucent )
Code value	0,1,2,3,4,5,6,7
Signal strength	three level: 1, 2, 3
Unipolar test	Yes (energized wire test, max voltage 480V)
Bipolar test	Yes (energized wire test, max voltage 480V)
ELV LED indicator	If the input voltage exceeds 25V, the ELV LED turns on. As the voltage rises, the brightness of the ELV LED increases. In any other case, the ELV LED will be dim or not illuminated.
Receiver
Receiving frequency	33KHz
Tracing depth	Around 0~2.5m (unipolar mode; single-circuit: 2.5m)
	Around 0~0.5m (bipolar mode)
NCV voltage range	80V ~ 1000V, 50Hz/60Hz
Voltage detection depth	Around 0~0.4 meters
Code value	0,1,2,3,4,5,6,7
Signal strength	three level: 1, 2, 3
Multi-Transmitors compatible	Up to 8pcs
Screen	Segment code LCD (TN; Translucent )
