Fluke 28 II 6000 Counts / 1000V Rugged Digital Multimeter
Roll over image to zoom zoom_in
- Weight: 698 Grams
- Product Type: Multimeter
- Battery type: Three AA batteries
- Safety rating: CAT IV 600 V/CAT III 1000 V
- Drop test: 10 feet drop test
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹94967.58 (Incl. of all taxes)
₹80481+ ₹14486.58 GST (18%)
MRP ₹118354
SAVE 32%
12 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The Fluke 28 II digital multimeter defines the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. The meter offers an IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95% humidity, and has been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 28 II Rigged Digital Multimeter is built to work in the toughest environments.
Other Key Capabilities:
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 μF capacitance range
- Frequency to 200 kHz
- Extended AC voltage bandwidth– 15 Hz to 20 kHz
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Resistance, continuity, and diode test
- Min/Max and average recording to capture variations automatically
- Peak min-max
- Hi resolution 20,000 count display mode
- True-RMS ac voltage and current for accurate measurements on nonlinear signals
- Backlit keypad buttons allow for easy visibility in low-lit areas
- Large display digits and 2 levels bright white backlight for increased visibility
- Reversible holster for added protection when not in use
- Withstands hazardous 8,000-volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
- Long battery life (800 hours)
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks.
Features:

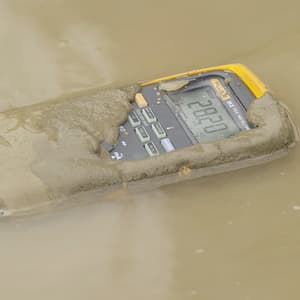

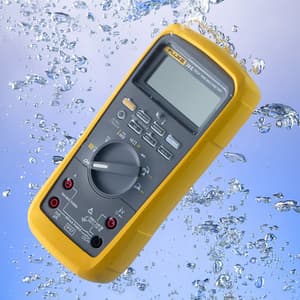

- IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
- Designed to withstand 3-meter drop (with holster)
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- MSHA approval
- Limited lifetime warranty.

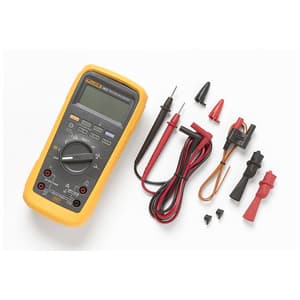

What's Included In This Package:
- Fluke 28 II Rugged Digital Multimeter
- (1 pair) TL75 test leads
- (1 pair) AC175 alligator clips
- 80BK-A type-K thermocouple leads
- Quick reference guide
Specifications:
DC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.05% + 1 | |
AC voltage | Range | 0.1 mV to 1000 V |
Accuracy | 0.7% + 4 | |
DC current | Range | 0.1 μA to 10 A |
Accuracy | 0.2% + 4 | |
AC current | Range | 0.1 μA to 10 A |
Accuracy | 1.0% + 2 | |
Resistance | Range | 0.1 Ω to 50 MΩ |
Display counts | 6000 | |
Capacitance | 1 nF to 9999 μF | |
Frequency | 0.5 Hz to 199.99 kHz | |
Temperature | -200°C to +1090°C | |
Low pass filter (Measurement on VSD’s) | Yes | |
Compliance | CAT IV 600 V , CAT III 1000 V | |
IP rating | IP 67 | |
Power | Three AA batteries | |
Battery life | 800 hours |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | HA.AU.MU.00027 |
---|---|
Product Type | Multimeter |
Model No | Fluke28 |
Display Bargraph / backlight | Yes |
Data storage Peak transient capture | 250 µS |
Data storage Min/Max/Avg | Yes |
Data storage Reading hold | Yes |
Other features Relative readings (zero) | Yes |
Battery type | Three AA batteries |
Safety rating | CAT IV 600 V/CAT III 1000 V |
Mine safety | MSHA Approved |
External protection | Rubber holster |
Drop test | 10 feet drop test |
Dustproof/waterproof | Yes, IP 67 rated |
Size (H x W x L) with holster | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) |
