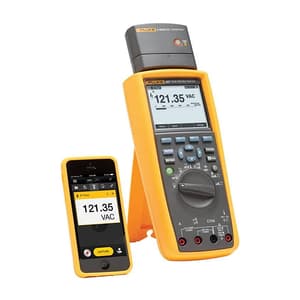

Now compatible With Fluke Connect® Mobile App
Maximize productivity with the combined Fluke 287 and FlukeView® forms combo kit. Designed for today’s professionals involved in R&D, maintenance, manufacture and design of electronic circuits or systems. With built-in data logger and TrendCapture™ (the meters on screen graphical display) capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions.

FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and effect relationships, or turn your data into meaningful graphs and tables for a professional report. The 287 is compatible with the new Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit gives you a practical and affordable approach to documenting circuit design performance.

Features:

• NEW – Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
• NEW – Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).

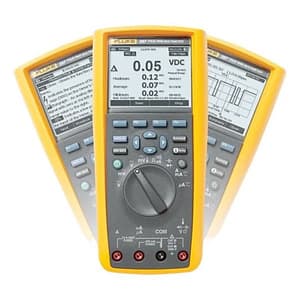

• TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
• Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
• Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
• On board help screens for measurement functions.
• Saved measurements allow you to name and recall measurements made in the field.
• Multi-lingual interface.
• Multiple logging sessions possible without download.
• 0.025% basic DC accuracy.
• 100 kHz ac bandwidth.
• Real time clock for automatic time stamping of saved readings.
• True RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Temperature function.
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• Peak capture to record transients as fast as 250 μs.
• Premium test leads and alligator clips included.
• Amp jack plugs included.
• FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
• Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
• Limited lifetime warranty.

What's Included In This Package:

• Fluke 287 Multimeter
• FlukeView® Forms Software with cable
• 80BK-A Thermocouple Probe
• CAT III 1000 V 10 A Modular Test Leads (red, black)
• CAT II 1000 V 10 A Modular Test Probes (red, black) and CAT III rated caps
• CAT III 1000 V 10 A Alligator Clips (red, black)
• Magnetic hanging strap
• TLK287 Electronic Test Lead Set
• C280 Soft Case
• Amp Jack Plug Set

Requires Fluke ir3000 FC Infrared Connector for Fluke Connect communication (not included in FVF Kit)

Specifications:

Function
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
	Basic accuracy	1.0%
Resistance	Range / resolution	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
	Basic accuracy	1.0%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
	Basic accuracy	0.005%
Connectivity	Optional infrared connector via Fluke ir3000 FC
