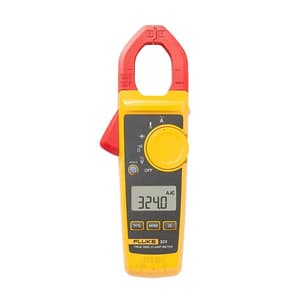

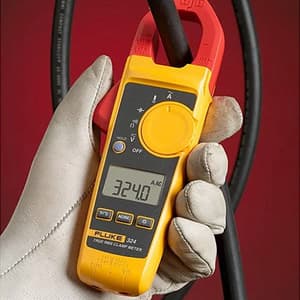

The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting.

With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.

Troubleshoot Problems Safely & Accurately:

• CAT III 600 V, CAT IV 300 V safety rating
• Provides True RMS AC voltage and current for accurate measurements on non-linear signals
• Measures AC current up to 400 A
• Measures AC/DC voltage to 600V
• Measures resistance to 4kΩ with continuity detection ≤ 30Ω
• Measures temperature from -10C to 400C
• Measures capacitance to 1000μF
• Backlight and hold function captures a reading on the display
• Comes with a two-year warranty and soft carrying case

Features:

It does everything a HVAC or Maintenance Tech would need. Out of 12 guys I work with 9 of them had the 324 - Thomas

• Rugged, reliable basic True-RMS clamp meter
• Measure AC current up to 400 A, AC/DC voltage to 600V
• Measure resistance up to 4kΩ, continuity detection ≤ 30Ω
• Additions from 323 Clamp: Temperature, Capacitance, Backlight

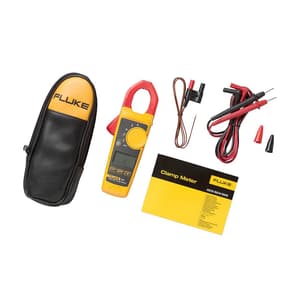

What's Included In This Package:

• 324 True-RMS Clamp Meter
• (1 pair) TL75 Test Leads
• Type K Thermocouple
• Two AAA Batteries (Installed)
• Soft Case
• Quick Reference Guide

Specifications:

AC current	Range	40.00 A / 400.0 A
	Accuracy	1.5% ± 5 digits (45 Hz to 400 Hz) Note: Add 2% for position sensitivity
DC current	Range	-
	Accuracy	-
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ohms/ 4000 Ohms
	Accuracy	1.0% ± 5 digits
Continuity		≤ 30 Ohms
Capacitance		0 to 100.0 μF / 100μF to 1000 μF
Frequency		-
AC response		True-RMS
Backlight		Yes
Data hold		Yes
Contact temperature		-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max		-
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
Category rating		CAT III 600 V CAT IV 300 V
Warranty		Two-year
