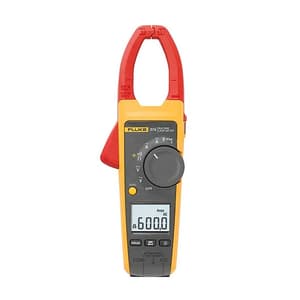

The Fluke 374 True RMS Clamp Meter can read up to 600 V and 600 A in both AC and DC modes. Additionally, the 374 is compatible with the new iFlex flexible current probe (sold separately), which increases the measurement range to 2500 A AC and provides increased display flexibility, and improved wire access.

Features:

• iFlex flexible current probe (sold separately) expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
• CAT IV 600 V, CAT III 1000 V
• Propietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• Ergonomic design fits in your hand and can be used while wearing personal protective equipment
• Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
• Three-year warranty
• Soft carrying case

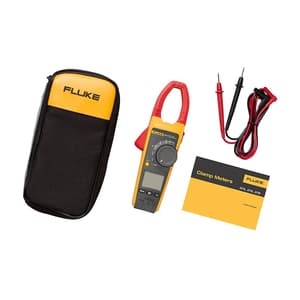

What's Included In This Package:

• Coated instruction card
• Safety information sheet
• Soft carrying case
• TL75 test leads
• Two AA Alkaline batteries

Specifications:

Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5%
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0%
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
Trigger Level		5 – 10 Hz, ≥10 A
		10 – 100 Hz, ≥5 A
		100 – 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range	375 and 376	5.0 - 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ± 5 digits
Trigger Level		5 – 20 Hz, ≥ 25 A
		20 – 100 Hz, ≥ 20 A
		100 – 500 Hz, ≥ 25 A
Resistance
Range	374 375 and 376	6000 Ω 60 kΩ
Resolution	374	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω)
	375 and 376	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω) 10 Ω (≤ 60 kΩ)
Accuracy		1% ± 5 digits
Capacitance
Range		1000 μF
Resolution		0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy		1% ± 4 digits
Mechanical Specifications
Size (L x W x H)		246 mm x 83 m x 43 mm
Weight		388 g
Jaw Opening		34 mm
Flexible Current Probe Diameter		7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)		1.8 m
Environmental Specifications
Operating Temperature		10°C – +50°C
Storage Temp		-40°C – +60°C
Operating Humidity		Non condensing (< 10 –°C) ≤ 90% RH (at 10°C – 30°C) ≤ 75% RH (at 30°C – 40°C) ≤ 45% RH (at 40°C – 50°C)
Operating Altitude		3000 meters
Storage Altitude		12,000 meters
EMC		EN 61326-1:2006
Temperature Coefficients		Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Safety Specifications
Safety Compliance		CAN/CSA-C22.2 No. 61010-1-04 ANSI/UL 61010-1:2004 ANSI/ISA-61010-1 (82.02.01):2004 EN/IEC 61010-1:2001 to 1000V Measurement Category (CAT) III 600V Measurement Category (CAT) IV Pollution Degree 2 EN/IEC 61010-2-032:2002 EN/IEC 61010-031:2002+A1:2008
Agency Approvals
Batteries		2 AA, NEDA 15A, IEC LR6
