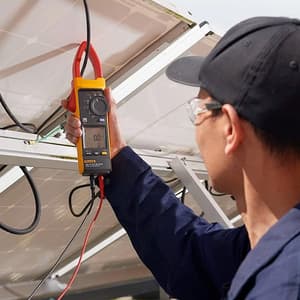

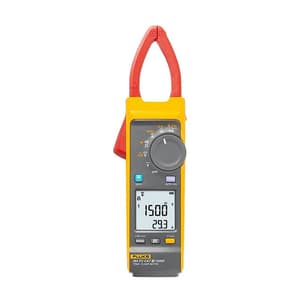

The Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter with iFlex is designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage DC environments: PV arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp meter will measure up to 1500 V DC and 1000 V AC with test leads, and up to 999.9 A DC or AC through the clamp jaw.

The included iFlex flexible current probe extends AC current measurements up to 2500 A. The 393 has a thin jaw, giving you access to cables in crowded combiner boxes. Plus, the test leads are designed with your work in mind, and are also rated to CAT III 1500 V DC.

Features:

• IP54 rated, ideal for work outdoors including PV panel testing
• DC power measurement, showing readings in kVA
• Audio Polarity indicator helps prevent accidental miswires
• Visual Continuity turns provide a bright green light in the display, ideal when working in dark and noisy environments

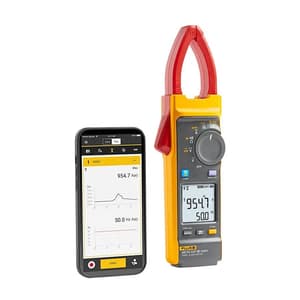

• Logging and reporting of test results via Fluke Connect software
• When measuring ac current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces. The iFlex probe can be twisted through extremely small spaces and provide accurate current measurements.

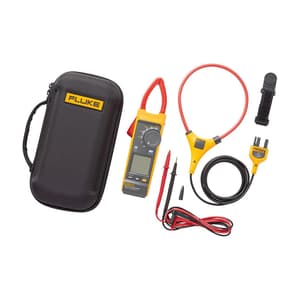

What's Included In This Package:

• Fluke 393 FC CAT III 1500 V TRMS clamp meter
• Test leads, CAT III 1500 V rated, right angle plugs, with safety caps
• iFlex 18 inch flexible current probe
• TPAK magnetic hanging strap
• Premium carrying case
• 3-year warranty

Specifications:

General
Maximum voltage between any Terminal and Earth Ground
AC	1000 V
DC	1500 V
Batteries	2 AA IEC LR6 alkaline
Display	Dual display with backlight
Automatic Power Off	20 minutes
Electrical
Accuracy
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).
Temperature Coefficients	Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % + 5 digits (10 Hz to 100 Hz)
	2.5 % + 5 digits (100 Hz to 500 Hz)
Crest Factor (50/60 Hz)	2.5 @600.0 A
	3.0 @500.0 A
	1.42 @999.9 A
	Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	999.9 A
	2500 A
Resolution	0.1 A (≤999.9 A)
	1 A (≤2500 A)
Accuracy	3 % RD + 5 digits (10 Hz to 500 Hz)
Crest Factor (50/60Hz)	2.5 @1400 A
	3.0 @1100 A
	1.42@2500 A
	Add 2 % for C.F. >2
Position Sensitivity
Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5 %
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0 %
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % RD + 5 digits[1]
	[1] When using the ZERO (B) function to compensate for offsets.
AC Voltage
Range	600.0 V
	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1 % RD + 5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V
	1500 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1500 V)
Accuracy	1 % RD + 5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % RD + 5 digits
Amps Frequency: Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A
	10 Hz to 100 Hz, ≥5 A
	100 Hz to 500 Hz, ≥10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A
	20 Hz to 100 Hz, ≥20 A
	100 Hz to 500 Hz, ≥25 A
Voltage Frequency
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥5 V
	20 Hz to 100 Hz, ≥5 V
	100 Hz to 500 Hz, ≥10 V
DC Power
Range	600.0 kVA (600.0 V dc range)
	1500 kVA (1500 V dc range)
Resolution	0.1 kVA
	1 kVA
Accuracy	2 % RD + 2.0 kVA
	2 % RD + 20 kVA
Resistance
Range	600.0 Ω
	6000 Ω
	60.00 kΩ
Resolution	0.1 Ω (≤600.0 Ω)
	1 Ω (≤6000 Ω)
	0.01 kΩ (≤60.00 kΩ)
Accuracy	1 % RD + 5 digits
Capacitance
Range	100.0 μF
	1000 μF
Resolution	0.1 μF (≤100.0 μF)
	1 μF (≤1000 μF)
Accuracy	1 % RD + 5 digits
Inrush Trigger Level	5 A
Mechanical
Flexible Current Probe Cable Length
(head to electronics connector)	1.8 m
Environmental
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	Non condensing (<10°C)
	≤90 % RH (at 10 °C to 30 °C)
	≤75 % RH (at 30 °C to 40 °C)
	≤45 % RH (at 40 °C to 50 °C)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Ingress Protection (IP) Rating	IEC 60529: IP54 non-operating
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1, Pollution Degree 2
Measurement	IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V
	IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V
Wireless Radio
Radio frequency certification	FCC ID: T68-FBLE, IC: 6627A-FBLE
Wireless Radio Frequency Range	2400 MHz to 2483.5 MHz
Output Power	<100 mW
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU.
