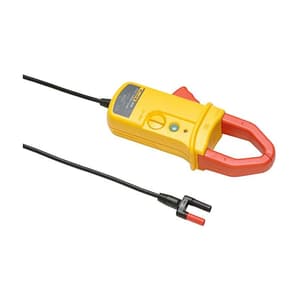

The Fluke i410 AC/DC current clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC current. The Large clamp claw gives you access to difficult-to-reach areas. The kit includes a handy carrying case.

Key features

• Battery-powered Hall-effect probe measures 1A to 400 A
• 1mV/Amp output guarantees easy reading on your meter
• Take accurate current readings without breaking the circuit
• Maximum conductor Ø 32 mm
• CAT III 600 V safety rating

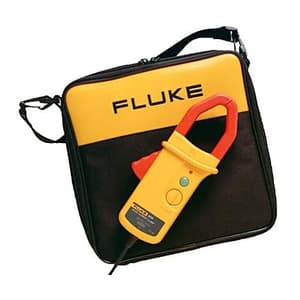

• Also available with softcase for DMM and clamp (i410 kit)
• One-year warranty.



Specifications
Measurement type	Hall sensor
Nominal current range	400 A, AC/DC
Continuous current range	1 A - 400 A AC/DC
Maximum non-destructive current	400 A
Lowest measurable current	0.5 A
Basic accuracy	3.5% + 0.5 A (% reading + floorspace)
Useable frequency	DC - 3 kHz
Output level(s)	1 mV/A
Zero error adjustment	Yes

Safety Specifications
Safety	CAT III, 600 V
Maximum voltage	600 V

Mechanical and General Specifications
Warranty	1 year
Battery life	9 V, 60 h
Maximum conductor diameter	30 mm 2 x 25 mm
Output cable length	1.6 m
Shrouded banana plugs	Yes
