The Fluke 301D Series AC/DC Clamp Meter is designed with a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301D test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc. You can handle multiple test needs with just one tool. With the AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc.

Features:

• The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
• The slim and thin jaw of only 10mm can easily fit into tightly packed wires
• 600A AC/DC range (D model), 0.01A high resolution
• Tests voltage, resistance and continuity
• Tests current frequency and voltage frequency
• Tests capacitance and diodes
• Backlight

What's Included In This Package:

• 1x Clamp Meter
• 2x AA Batteries

Technical Data:

Maximum voltage between any Terminal and Earth Ground	300V
Maximum Differential Voltage between V/Ω and COM Terminals	600V
Display (LCD)	6000 Counts, Updates 3 times per second
Battery Type	2 AAA, IEC LR03
Battery Life	500 Hours minimum
Auto Power Off Time	20 Minutes
Temperature	-10 °C to 50 °C (Operating) / -30 °C to 60 °C (Storage)
Relative Humidity	Operating Humidity: Non-condensing (<10°C)
	≤ 90 % RH at 10 °C to 30 °C
	≤ 75 % RH at 30 °C to 40 °C
	≤ 45 % RH at 40 °C to 50 °C
Altitude	2000 m (Operating) / 12000 m (Storage)
Temperature Coefficient	0.1 x (specified accuracy) /°C (<18 °C or >28 °C)
Ingress Protection Rating	IP30
Safety	IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2
Electromagnetic Environment	IEC 61326--1: Portable

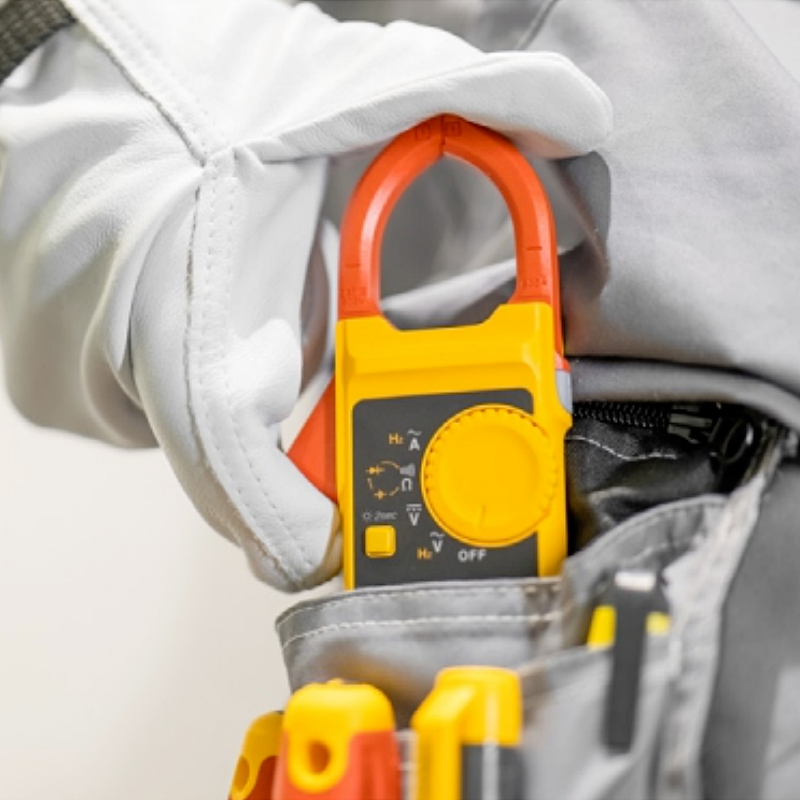

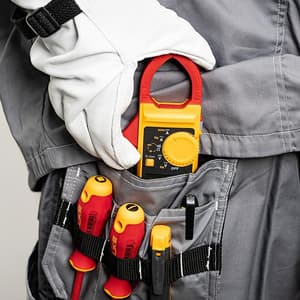

Portable and lightweight for easier field testing As one of the commonly used tools in electrical testing, clamp meters are often taken to various testing sites by engineers. The Fluke F301 weighs only 132g and is just 16mm thick. The lightweight and slim body is designed to fit in your pocket, allowing you to carry it around for easier field testing.

Well-designed jaw to deal with tightly packed wires When testing for current, it is a common problem that the jaws are too bulky to clamp onto tightly packed wires. The Fluke F301 has a slim and thin jaw with the arm size of only 10mm x 10mm, allowing it to easily clamp onto tightly packed wires and small space. These jaws make current testing safer and more efficient.

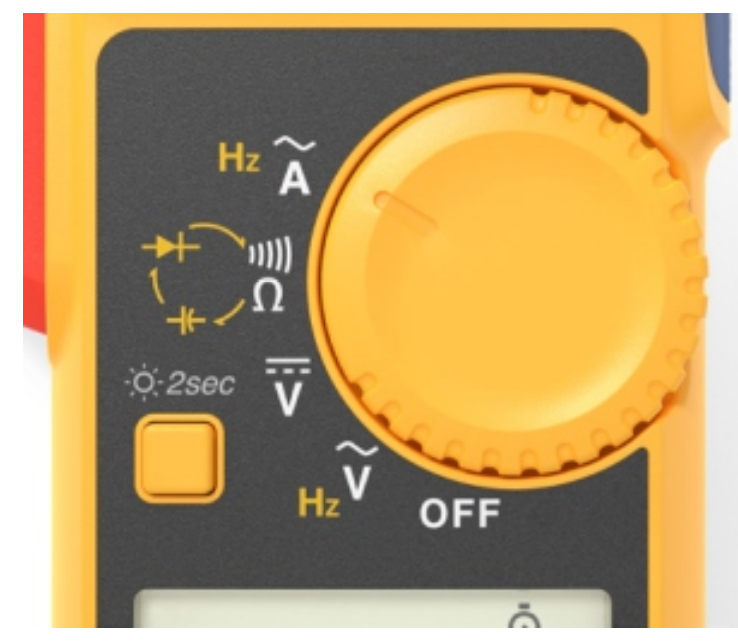

Eight test functions, all in one tool An all-in-one tool to resolve the need to bring more than one tool out for field testing or being in a situation where you left out a tool and is not able to complete the testing process. With eight test functions, the Fluke F301 can meet more field testing needs and solve more problems with just one meter. AC Current AC/DC Voltage Resistance Continuity Capacitance Diode Current Frequency Voltage Frequency

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
