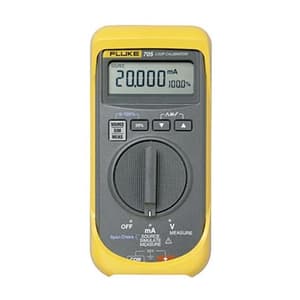

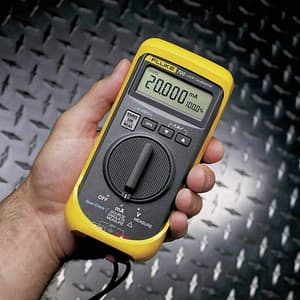

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 - 20 mA or 4 - 20 mA default start up modes
• Comes with a protective yellow holster with test lead storage and a three year warranty

Features:

• Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
• Provides simultaneous mA and % readout for quick, easy interpretation of readings.
• Delivers mA accuracy of 0.02%
• Features push button 25% steps for fast, easy linearity checks.

What's Included In This Package:

• Fluke 705 Loop Calibrator
• C10 protective yellow holster with Flex-Stand™
• (1 set) AC70A Alligator Clips
• Instruction sheet
• (1 pair) TL75 safety-designed test leads
• NIST- traceable calibration report and data
• Quick Reference Guide
• 3-year warranty

Specifications:

Current measurement	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	0.02% Rdg + 2 LSD
Current sourcing	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Drive capability	1000 Ω @ 24 mA
Current simulation	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Ext. loop voltage requirement	12-30 V
Loop power	While measuring mA, 24 V
Voltage measurement	Range	0 to 28 V DC
	Resolution	1 mV
	Accuracy	0.025% Rdg + 2 LSD
