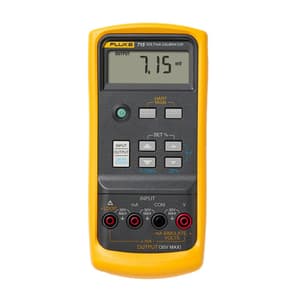

The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series digital multimeter package, the calibrator measures loop current as well as voltage output.

It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy, and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement.

• Provides step and linear ramp output function
• Features configurable zero and span settings
• Provides 24 V loop supply with simultaneous current measurement
• Features enhanced voltage and current measure and source accuracy
• Includes a 250-ohm HART resistor with loop power

Easy To Use & Carry:

The 715 is also extremely easy to use with a simple push button interface. It features the rugged construction that Fluke tools are known for and is EMI tolerant as well as dust and splash resistant.

It also features a removable battery door for quick battery changes after the 18 hours of battery life the 9 V battery provides. And the tool also comes with a protective yellow holster with test lead storage.


Features:

• Compact mA calibrator for measuring 0-20 mA or 4-20 mA signals
• High accuracy—0.01% and 1 µA resolution
• Measures voltage output process signals from PLCs and transmitters
• Sources or simulates 4-20 mA loop current
• Sources voltage to 100 mV or 10 V.

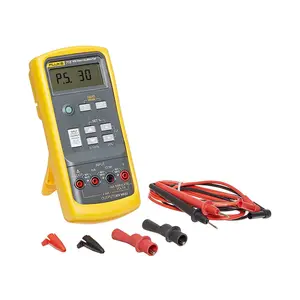

What's Included In This Package:

• Fluke 715 Volt/mA Calibrator
• Protective yellow holster with test lead storage
• (1) 9V alkaline battery
• (1 pair) Test leads
• (1 set) Alligator clips
• NIST- traceable calibration report and data
• Quick Reference Guide

Functional Specifications:

Measure / Source mV	Range	0 to 200 mV
	Resolution	0.01 mV
	Accuracy	0.015% + 2 counts
Measure / Source V	Range	0 to 20 V
	Resolution	0.001 V
	Accuracy	0.01% + 2 counts
Measure / Source/ Simulate mA (% of span)	Range	0 to 24 mA (-25% to 125%)
	Resolution	0.001 mA
	Accuracy	0.01% + 2 counts
		Sink (simulate transmitter) display mA or % of span
Specifications
Loop power	Range	24 V DC
	Accuracy	±10%
		Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V
Display	Clear 5 digit LCD
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	35% (50°C to 55°C)
Operating altitude	3,000 m max
