Process calibration designed specifically for process industries:

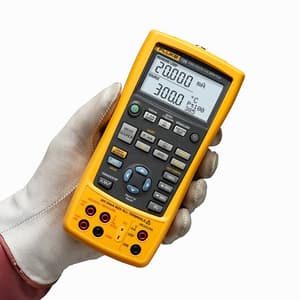

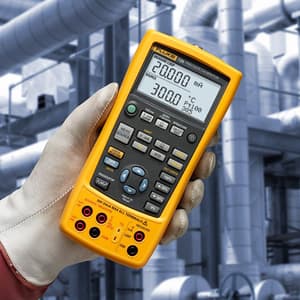

The Fluke 726 is a precise and powerful, yet easy-to-use, field calibrator. It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals. It measures and sources almost all process parameters to calibrate almost anything.

Use it to test sensors and valves, and to test and calibrate transmitters. The 726 interprets results without the help of a calculator and stores measurement data for later analysis.

Measurement Capabilities:

This precision multifunction calibrator measures volts, mA, pressure, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters. The 726 also sources and simulates volts, mA, thermocouples, RTDs, frequency to calibrate transmitters. To test and calibrate pressure transmitters and other devices. The 726 can also:

• Source mA with simultaneous pressure measurement to conduct valve and I/P test
• Conduct enhanced flowmeter testing with frequency totalizer and frequency pulse train source mode

Designed For Ease Of Use:

The 726 has built-in features that make it easier to use in nearly any measurement situation. From its ability to store frequently used test setups, to programming custom RTD probe calibration constants for enhanced temperature measurement, or the integrated voltage input protection design that improves reliability, the 726 is built to perform.

The use of two separate channels even allows you to measure, source, or view process signals simultaneously. The backlit display provides better visibility in low-light conditions, and the standard 3-year warranty provides extra confidence that the 726 will be there when you need it to be.

You Can Also Use The 726 To:

• Capture the set, reset, and deadband of a pressure switch with the integrated switch test
• Calculate the transmitter error % to interpret calibration results without the use of a calculator
• Perform fast linearity tests with the auto-step and auto-ramp features
• Power a transmitter during test using 24 V loop supply and simultaneous mA measurement

Features:

• Precision multifunction, temp, frequency, voltage, and mA calibrator
• Calibrates thermocouples and RTD temperature instruments
• Stores up to eight calibration results in memory for analysis
• Built-in 24 V Loop Power Supply

What's Included In This Package:

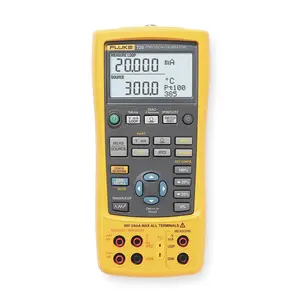

• Fluke 726 Precision Multifunction Process Calibrator
• (1 set) AC72 alligator clips
• (1 pair) stackable test leads
• (1 pair) TL75 test leads
• NIST- traceable calibration report and data
• Quick Reference Guide
• 3-year warranty

Measurement Accuracy:

Voltage DC	30.000 V	0.01% + 2 mV (upper display)
	20.000 V	0.01% + 2 mV (lower display)
	90.00 mV	0.01% + 10 μV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.01%+ 2 mA
Resistance	0.0 to 4000.0 Ω	± 0.015%
Frequency	2.0 to 1000.0 CPM	0.05% + 0.1 cpm
	1.0 to 1000.0 Hz	0.05% + 0.1 Hz
	1.00 to 15.00 kHz	0.05% + 0.01 kHz
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.01% + 10 μV
	20.000 V	0.01% + 2 mV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (Source)	0.01% + 2 μA
	24.000 mA (Simulate)	0.01% + 2 μA
Resistance	Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
		5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA
		400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA
		1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1000.0 Hz	0.05%
	1.0 to 10.0 kHz	0.25%
	10.0 to 15.0 kHz	0.5%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure and source accuracy	Cu10	1.8°C
	NI-120	0.15°C
	PT-100 (385)	0.45°C
	PT-100 (392)	0.35°C
	PT-100 (391-JIS)	0.35°C
	PT-200 (385)	0.95°C
	PT-500 (385)	0.55°C
	PT-1000 (385)	0.35°C
	RTD Resolution	0.01°C (0.01°F)
	Cu10.01 C	0.1°C (0.1°F)
	J	0.4°C
	K	0.5°C
	T	0.4°C
	E	0.4°C
	R	1.4°C
	S	1.4°C
	B	1.4°C
	L	0.45°C
	U	0.45°C
	N	0.6°C
	XK	0.4°C
	BP	1.1°C
	TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
	Steps	25% of range, 100% of range
