Versatile Meters For Field Service Or Bench Repair
The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

It Measures:

• Wide 1000 V measurement range
• Average responding AC measurements
• 0.3% accuracy
• 10 Amps continuous (20 A for 30 seconds)
• Frequency and capacitance
• Resistance and continuity.

Features:

• Large display
• Backlight for work in dim areas
• Min / Max to record signal fluctuations
• Ergonomic over-molded housing with integrated probe holders
• Free your hands with the optional TPAK magnetic hanger
• Auto and Manual ranging
• Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards.
• The 77 IV replaces the 77. Move up to superior utility and safety today.

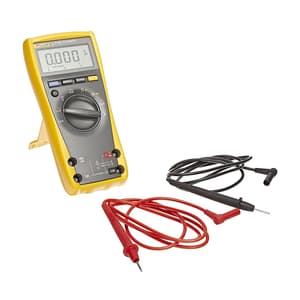

What's Included In This Package:

• Fluke 77 IV Digital Multimeter
• (1 pair) Test leads
• 9V Battery (Installed)
• Quick reference guide

Specifications:

Voltage DC	Range	6.000 V – 1000 V
	Best accuracy	±(0.3% + 1)
	Best resolution	0.1 mV
Voltage AC	Range	600.0 mV – 1000V
	Best accuracy	±(2.0% + 2)
	Best resolution	1.0 mV
Amps AC	Range	60.00 mA – 10 A
	Best accuracy	2.5% + 2
	Best resolution	0.01 mA
Amps DC	Range	60.00 mA – 10A
	Best accuracy	1.5% + 2
	Best resolution	0.01 mA
Resistance	Range	600.0 Ω – 50 MΩ
	Best accuracy	±(0.5% + 1)
	Best resolution	0.1 Ω
Capacitance	Range	1nF – 9,999 μF
	Best accuracy	±(1.2% + 2)
	Best resolution	1 nF
Frequency	Range	99.99Hz – 99.99kHz
	Best accuracy	±(0.1% + 1)
	Best resolution	0.01 Hz
Safety	ANSI / ISA S82.02.01, CSA C22.2–1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV
Certifications	CSA, TÜV (EN61010), Π, (N10140)
Electromagnetic compatibility (EN 61326–1:1997)	In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ±5°C (9°F)
Relative humidity (maximum non-condensing)	90% to 35°C 75% to 40°C 45% to 50°C
