The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations. This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter includes a unique function for accurately measuring noisy at the VFD and at the motor terminals.

Special shielding blocks high frequency, high-energy noise generated by large drive systems. The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.

Features:

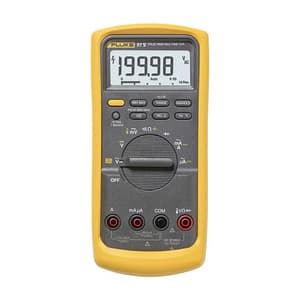

The Fluke 87V industrial digital multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment.


• Safer and rugged: Safety rated CAT III 1000 V, CAT IV 600 V
• Accurate: Measure current, voltage and frequency on complex variable frequency drive (VFD) signals
• This electrical multimeter correctly measure pulse-width modulated motor drive signals
• Save time: The 87V multimeter includes a built-in thermometer and temperature probe
• True-RMS AC voltage and current for measuring non-linear signals

Other Useful Features:

• Rugged, high accuracy industrial electrical multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
• Offers true-RMS AC voltage and current for measuring non-linear signals
• Captures intermittents as short as 250 µS
• Safety rated CAT III 1000 V, CAT IV 600 V
• Includes a built-in thermometer and temperature probe

Applications:

• For Application engineer / Plant engineer / Industrial electricians (Working with VSD’s) / Electrical engineer.
• In plant automation, Power distribution, Electro-mechanical equipment,
• Industrial electronics, Setting up / repairing, adjustable speed motor drives.

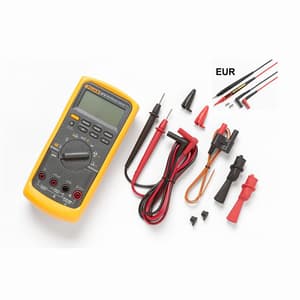

What's Included In This Package:

• Fluke 87V Industrial Multimeter
• TL75 Test Leads (TL175 Eur)
• AC175 Alligator Clips
• Holster with tilt-leg, test lead storage
• 80BK Temperature Probe
• 9V Battery (Installed)

Specifications:

Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz + 0.1%)
	Maximum resolution	0.1%
Temperature measurement	–200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe
80 BK temperature probe	–40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
