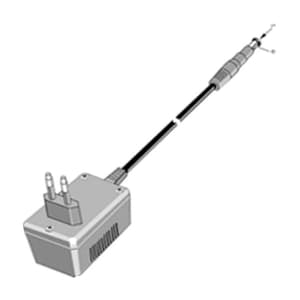

Fluke BC190/808 battery charger and Universal AC power adapter for the Fluke Scopemeter 190 Series. The Fluke BC190/808 is the Universal version with switch selectable inputs of 115 or 230 VAC (+/- 15 percent) at 50 - 60Hz (+/- 10 percent). The BC190/808 Universal power adapter is equipped with a male receptacle plug that must be connected to a line cord appropriate for local use. (Line cord not included.)

This charger supports the Fluke BP190 NiMH battery pack as used in the following Fluke Scopemeter Models: 192, 192B, 196, 196B, 196C, 199B, 199C. The BC190 is both a battery charger and AC power adapter and battery charging will occur (though at a slower rate) while the Scopemeter is in use. No damage will occur if the charger is connected for long periods, e.g., during the weekend. The instrument then automatically switches to trickle charging.


Features:

• Frequency (all versions): 50-60Hz ± 10%
• Output Voltage: 17.8V DC
• Output Power: 15W
• Power Consumption: 23.7VA
• Max. Voltage to Ground: 600V rms. CAT III per IEC 1010-1

Specifications:

Mains (Line voltage)	BC190/820 (Universal) 100 V to 240V ± 10%
Frequency (all versions)	50…60 Hz ± 10%
Output voltage	17.8 V DC
Output power	15 W
Power Consumption	23.7 V A
Max. voltage to ground	600 Vrms CAT III per IEC 1010-1
808 are equipped with a male receptacle plug that must be connected to a line cord appropriate for local use. (Line cord not included)
