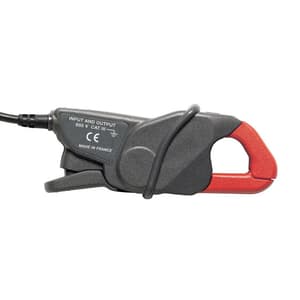

Fluke I 200S AC Current Clamp Attachment For Scope & PQA
Roll over image to zoom zoom_in
- Product Type: Probes & Accessories
- Nominal current range: 20 A - 200 A
- Useable frequency: 40 Hz - 10 kHz
- Output level: 100 mV/A 10mV/A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹46962.82 (Incl. of all taxes)
₹39799+ ₹7163.82 GST (18%)
MRP ₹58528
SAVE 32%
12 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

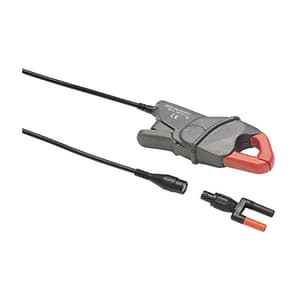

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.
Features:
- Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
- Included adapter for DMM's
- Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
- Take accurate current readings without breaking the circuit
- Max. conductor Ø 20 mm
- CAT III 600V safety rating
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PR.00066 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | FlukeI200S |
| Nominal current range | 20 A - 200 A |
| Continuous current range | 0.1 A - 24 A - 0.5 A - 200 A |
| Maximum non-destructive | 240 A |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 1.5% + 0.5 A (48-65 Hz) (% reading + floorspec) |
| Useable frequency | 40 Hz - 10 kHz |
| Output level | 100 mV/A 10mV/A |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V AC |
| Maximum conductor diameter | 20 mm |
| Maximum conductor size (busbar) | 20 x 5 mm |
| Output cable length | 2 Mtr |
| BNC Adapter | Yes |
| BNC to banana adapter included | Yes |
