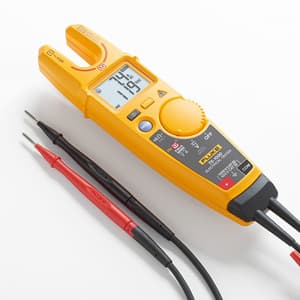

The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True RMS voltage and current measurements without test leads. Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without contacting alive, metallic conductors.

Just slide the 17.8 mm open fork, the widest in the industry, over a conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values. The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure voltage DC to 1000 V.

• True RMS voltage and current to 200 A AC, 1000 V AC
• Resistance 1 Ω to 100 kΩ

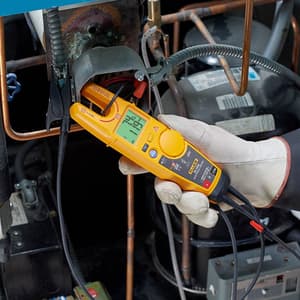

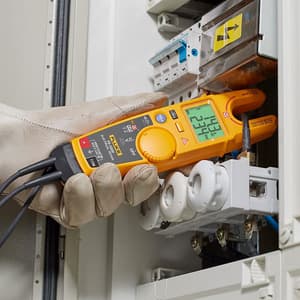

Work On Any Jobsite:

Make use of the HOLD button to temporarily freeze the reading on the screen so you can keep working with the same measurement up. Plus, the display features large, easy-to-read numbers and a backlight for darker work environments or inside cabinets. The T6-1000 works with the Fluke TPACK ToolPak™ Magnetic Meter Hanger to make it even more convenient.

How FieldSense™ Technology Works:

FieldSense ™ technology is different from other open fork testers' work by interpreting a magnetic field to show AC current. FieldSense™ detects an electrical field that interacts with a T6 reference signal, showing a voltage value on the tester’s display.

Features:

• Measure voltage to 1000 V AC without test leads
• Simultaneously measure voltage and current
• 17.8 mm open fork is the widest in the industry
• Measure up to 200 A on 4/0 wires (120 mm2).

What's Included In This Package:

• T6-1000 Electrical Tester
• Attached test leads with removable 4 mm probe caps
• Quick Reference Guide

Measurement Specifications:

Function	Requires test leads	Range	Resolution	Accuracy[1]
FieldSense ac voltage true-RMS	No	1000 V	1 V	± (3 % + 3 counts) 45 Hz - 66 Hz[2][3]
FieldSense ac current true-RMS	No	200.0 A	0.1 A	± (3% + 3 counts) 45 Hz - 66 Hz
FieldSense frequency (Hz)	No	45 Hz – 66 Hz	1 Hz	± (1% + 2 counts)[3]
Volts ac true-rms	Yes	1000 V	1 V	± (1.5% + 2 counts) 45 Hz - 66 Hz
Volts dc	Yes	1000 V	1 V	± (1% + 2 counts)
Resistance	Yes	2000 Ω	1 Ω	± (1% + 2 counts)
	Yes	20.00 kΩ	0.01 kΩ
	Yes	100.0 kΩ	0.1 kΩ
Safety		1000 V CAT III 600 V CAT IV
General Specifications
Temperature	Operating	-10 °C to +50 °C (14 °F to 122 °F)
	Storage	-30 °C to +60 °C (-22 °F to +140 °F)
Altitude	Operating	2,000 m (6,562 feet)
	Storage	10,000 m (32,808 feet)
Relative Humidity	0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
	0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
	0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
	0.1 x (specified accuracy) / °C for <18°C or >28 °C

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
