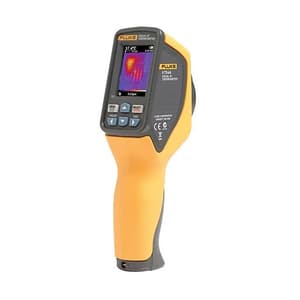

Detect Issues Instantly With The Fluke VT04A Visual IR Thermometer

The Fluke VT04A Visual IR Thermometer is designed to help you see it all. You can see issues in context by blending the infrared heat map with a visual image. You can easily identify the exact location of the potential issue by blending the two at 0%, 25%, 50%, 75%, and 100% infrared with one button. View aligned images from as close as 15 cm (6 in) in NEAR mode or from a distance in FAR mode.

The VT04 also helps you take accurate temperature readings without taking your eyes off the screen. Fill the center box with your target and rest assured you're measuring the target and not the background.

Features:

• Compact and intuitive visual IR thermometer that blends a visual image with infrared heat map overlay
• Features NEAR and FAR mode that automatically aligns visual and thermal lenses to correctly locate issues
• Includes a center measurement box showing the exact area of temperature measurement on the screen

Other Useful Features:

• Features PyroBlend® Plus optics to provide excellent field of view for tight spaces and sharp images
• Provides temperature alarms and automated monitoring to identify intermittent problems over time or get alerts of a temperature outside the expected range
• Presents hot and cold markers to instantly identify the hottest and coldest spots within the field of view
• Saves results in .bmp format when you only want an image, or in .is2 format that you can use with Fluke SmartView® software

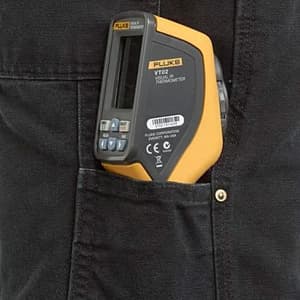

• Features a pocket-size design that easily fits in your tool bag or pocket
• Offers a highly intuitive interface so you can get to work immediately
• Includes a soft case, micro SD card and adapter, and 4 AA batteries

What's Included In This Package:

• Fluke VT04A Visual IR Thermometer
• Soft case
• Micro-SD card
• Micro-SD conversion adapter to standard
• AA batteries (4)
• Printed quick reference guides (English, French, German, Spanish, Simplified Chinese)

Specifications:

Built-in visual camera	Yes, get the context of visible light details in your images
Infrared heat map and visual image blending	Yes, five blending modes on camera and continuous blending in SmartView® software
Alignment options	NEAR: <23 cm (9 in) from target FAR: >23 cm (9 in) from target
Field of view	28° x 28° — the tight field of view lets you see more detail in your target
Temperature measurement range	-10 °C to +250 °C (14 °F to 482 °F)
Focus system	Focus free
High/low temperature alarms	Yes, high and low temperature alarms flash whenever the temperature threshold is exceeded, alerting you when a temperature is outside the expected range
Time-lapse image capture	Yes, automatically capture images at set intervals to see how temperature patterns change over time
Auto-monitor alarm	Yes, gain insight into intermittent problems by automatically capturing images when your selected temperature threshold is exceeded
Hot and cold markers	Yes, instantly identify the hottest and coldest spots in your image
Software	Professional SmartView® software enables you to optimize and analyze images, create quick reports and export images to multiple formats
Temperature measurement area	Center measurement box on screen shows the exact area the measurement is based on
File format	.bmp or .is2. The .is2 is editable in SmartView® software
Storage medium	4 GB micro-SD card that stores up to 9,999 images
Palettes	6 on the unit (Ironbow VT, Hot Metal, Greyscale Inverted, Greyscale, High Contrast VT, Rainbow); 4 additional in SmartView® Software (Blue Red, High Contrast, Amber, Amber Inverted). Palette on .is2 images can be changed in SmartView® software.
Case	VT04: Hard case VT04A: Soft case for portability
Battery type	VT04: Li-ion rechargeable VT04A: Four (4) AA batteries
Battery life	Eight (8) hours
Battery-saving features	Three screen brightness levels; auto screen dimming after 2 minutes; configurable auto-off time of 5, 10, 15, or 20 minutes
Ergonomics	Slim, lightweight, pocket-sized design
Warranty	Two years
