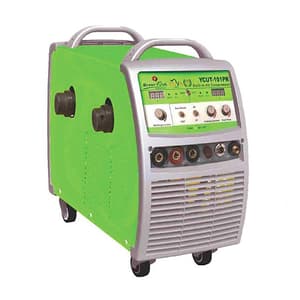

Great-Yuva 100 AMPS / 3 Phase IGBT Based Inverter Plasma Cutting Machine With Inbuilt Air Compressor & MMA Welding, YCUT-101PR
Roll over image to zoom zoom_in
- Weight: 49 Kg
- Product Type: Cutting Machine
- Phase: 3 Phase
- Rated Input Voltage: AC 415V + 10%
- Frequency (Hz): 50/60
- ARC Starting: Non Touch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹112302.96 (Incl. of all taxes)
₹95172+ ₹17130.96 GST (18%)
MRP ₹135960
SAVE 30%
5 Business Days
1 Pcs
85153990
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Plasma Cutting:
MMA Welding:
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
- With no oil air compressure, light in weight and long using life
- High capacity H bridge IGBT, 25KHz wave pulse control, leading in welding industry
- No crystalline state main transformer, high efficiency and energy saving
- 20mm fine cutting, smooth cutting seam
- With 4T working mode, machine can work without press switch all the time, easy for operation High capacity change-over switch design, more suitable for outdoor work
- Car class temperature protection system, accuracy error is less than + - 1 degree
- Precision digital pre-set data, direct and convenient
- High efficiency step-less double fan design, more reliable cooling system
- Independent air duct for IGBT, industry class protection
MMA Welding:
- Independent system design for MMA, no influence to CUT, more reliable
- IGBT single cycle current feedback, repond to each wave, more smooth for welding
- No crystalline state main transformer, high efficiency and energy saving
- Independent digital showing system, more convenient
- Suitable for acid electrode and basic electrode
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | WE.WE.CU.00005 |
|---|---|
| Product Type | Cutting Machine |
| Model No | YCUT101PR |
| Phase | 3 Phase |
| Rated Input Voltage | AC 415V + 10% |
| Input Voltage Range (V) | 370 - 460 V |
| Frequency (Hz) | 50/60 |
| Rated Input Capacity (KVA) | Cut: 15 / MMA: 12 |
| Rated input Current (A) | Cut: 24-IEFF: 18A / MMA: 20 IEFF:15A |
| No Load Voltage (V) | Cut: 400V / MMA: 68V |
| Output Current Range (A) | Cut: 50 - 100 A / MMA: 20 - 320 A |
| Duty Cycle (%) | Cut: 60% 100A, 100% 77A / MMA: 60% 320A, 100% 248A |
| Working Gas Pressure (MPA) | 0.3 - 0.5 |
| Efficiency | 85% |
| Case Protect Class | IP21S |
| Suitable Electrode | 2.5 / 3.15 / 4.0 mm |
| ARC Starting | Non Touch |

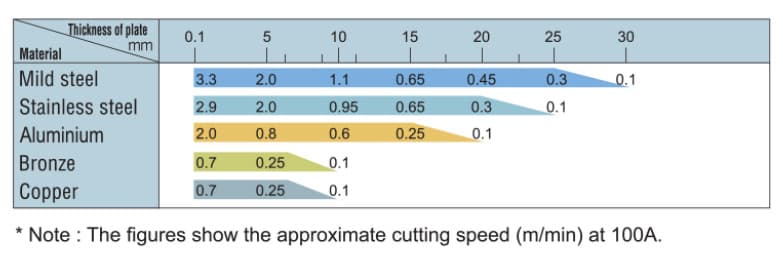

| Cutting Thickness (Carbon Steel) | <30 |
| Overall Dimensions (mm) | 625 x 302 x 585 |
