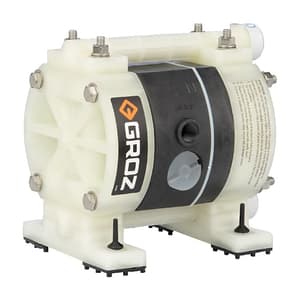

Groz 0 - 11 LPM Air Operated Double Diaphragm Pump, AODD/1-4/FPT/N

Shop all Groz

SKU: HA.LU.DI.00004

Model: AODD/1-4/FPT/N

Roll over image to zoom zoom_in
  1. Groz 0 - 11 LPM Air Operated Double Diaphragm Pump, AODD/1-4/FPT/N

  • Product Type: Diaphragm Pump
  • Flow Rate: 0 - 11 LPM (0 - 2.90 GPM)
  • Suction Lift Dry: 5-feet
  • Max Air Consumption: 250 LPM (8.83 CFM)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

31078.84 (Incl. of all taxes)

26338+ ₹4740.84 GST (18%)

MRP ₹38733

SAVE 32%



3 Business Days

1 Pcs

8467

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Groz Polypropylene Air-Operated Double Diaphragm Pumps are self-priming pumps ideal for large volume transfers. These pumps excel in transfering contaminated media & effortlessly cleaning out pits or liquids that can be a mix of several products like oil, water & antifreeze all mixed together. Engineered to handle diverse fluids with high solid content, their design ensures seamless pumping, even in dry-run situations. Experience the freedom to adjust flow rates and discharge pressures. Its dead head-capability ensures that discharge pressure never exceeds the air inlet pressure. The pump is an excellent choice for shear sensitive fluids because it ensures minimal parts come in contact with liquid.

Explosion-proof, submersible pumps that guarantees safety & efficiency over time. These pumps are designed for use with an air inlet pressure of 20-100 PSI (1.40- 6.89 Bar). The polypropylene body pumps come with a-choice of Santoprene (TP0) diaphragms that is best for use with abrasives, acids, caustics etc. and Teflon (PTFE) diaphragms that are chemically most inert compound, suitable for use with highly aggressive liquids such as solvents etc. Embrace the future of fluid transfer technology where adaptability, reliability, and safety converge in a compact, air-powered solution for all your pumping needs.


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUHA.LU.DI.00004
Product TypeDiaphragm Pump
Model NoAODD/1-4/FPT/N
Size 1/4 inch
Air Inlet Pressure 29-100 PSI (2-7 BAR)
Air Exhaust 3/8 inch NPT (F)
Flow Rate 0 - 11 LPM (0 - 2.90 GPM)
Suction Lift Dry 5-feet
Pump Inlet/ Outlet 1/4 inch NPT (F)
Max Particle Size N/A
Max Air Consumption 250 LPM (8.83 CFM)
Diaphragm PTFE
Casing Polypropylene
