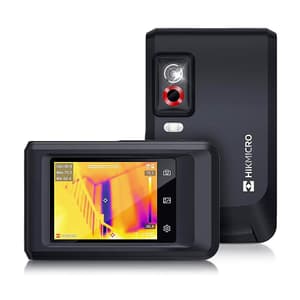

HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.

Features:

• Support SuperIR Image enhancement technology on captured images and live-view
• Thermal, Fusion, PIP, Visual and Blending modes
• Manual, automatic, and 1-Tap level and span
• High temperature alarm
• Built-in 16 GB flash memory (user available storage space is less than the nominal capacity)
• LED work light
• 8MP visual camera
• Up to 4 hours of continuous running
• Display: 640 x 480 Resolution, 3.5" LCD Touch Screen with auto-rotation

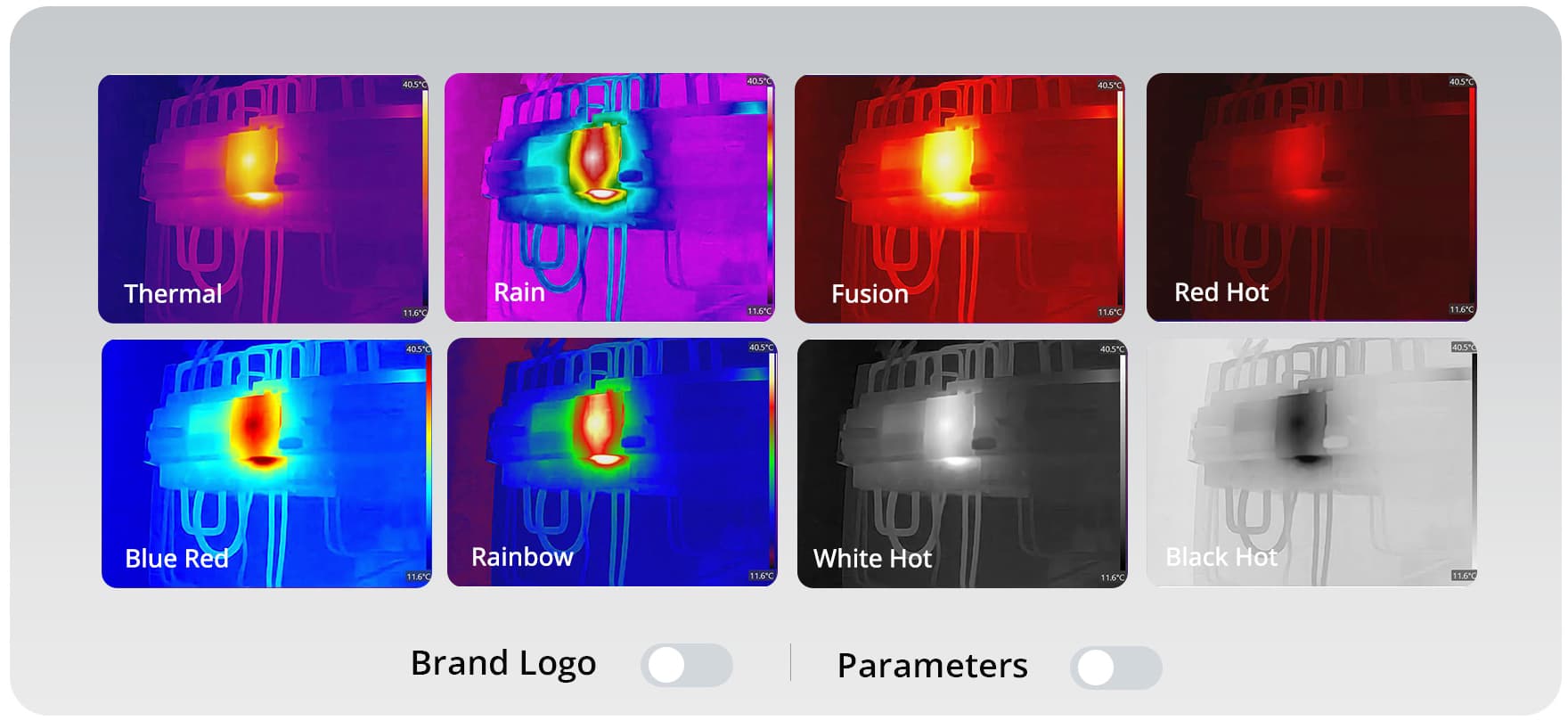

• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
• Accuracy: Max (± 2°C/3.6°F, ± 2%) for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

Vivid, Detailed, and Smooth Thermal View

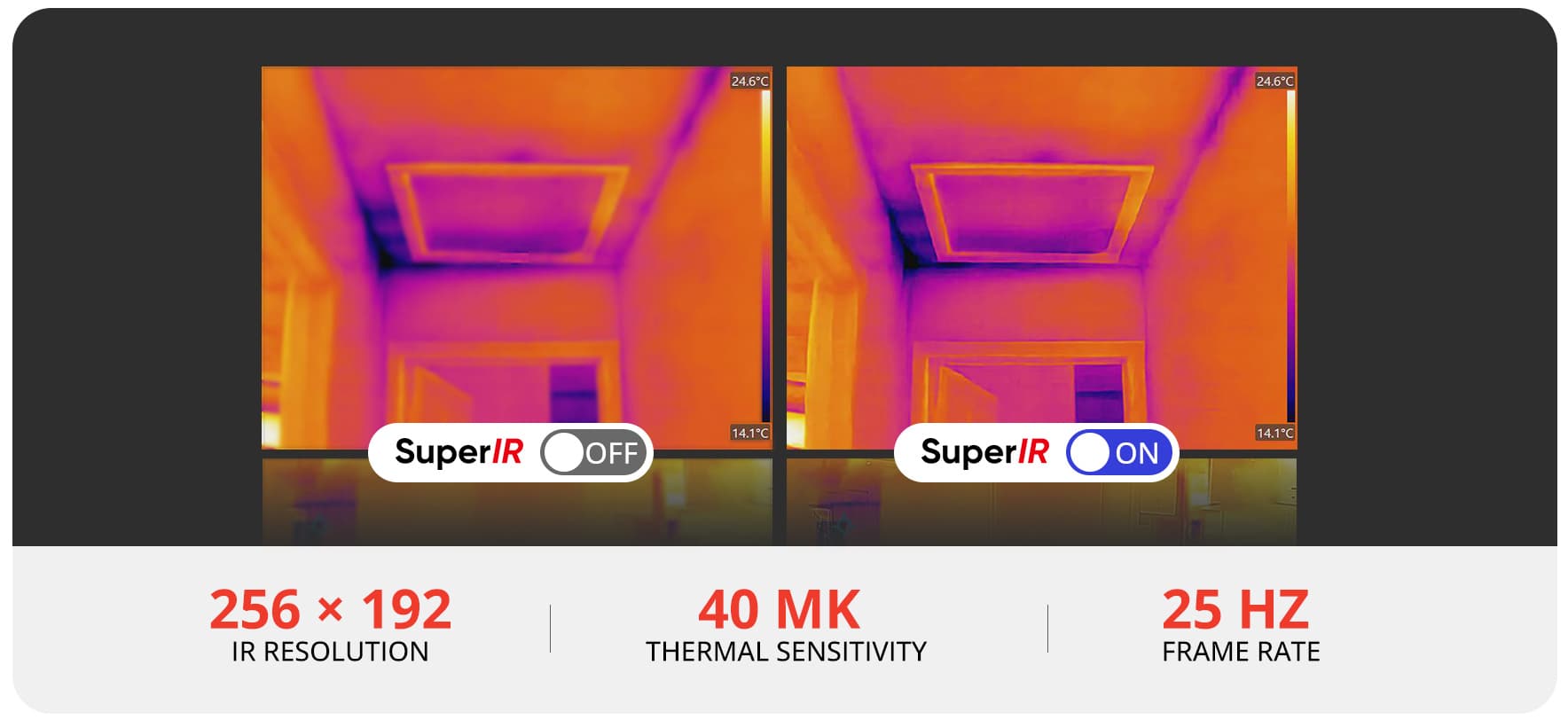

Enhanced Image Quality The HIKMICRO Pocket2 is designed with a highly sensitive (NETD < 40 mK) VOx detector and features a resolution of 256 x 192 (49,152) pixels, ensuring exceptional image quality. With a fast image frequency of 25 Hz and advanced real-time SuperIR image enhancement algorithms, this device delivers a clear and detailed thermal view.

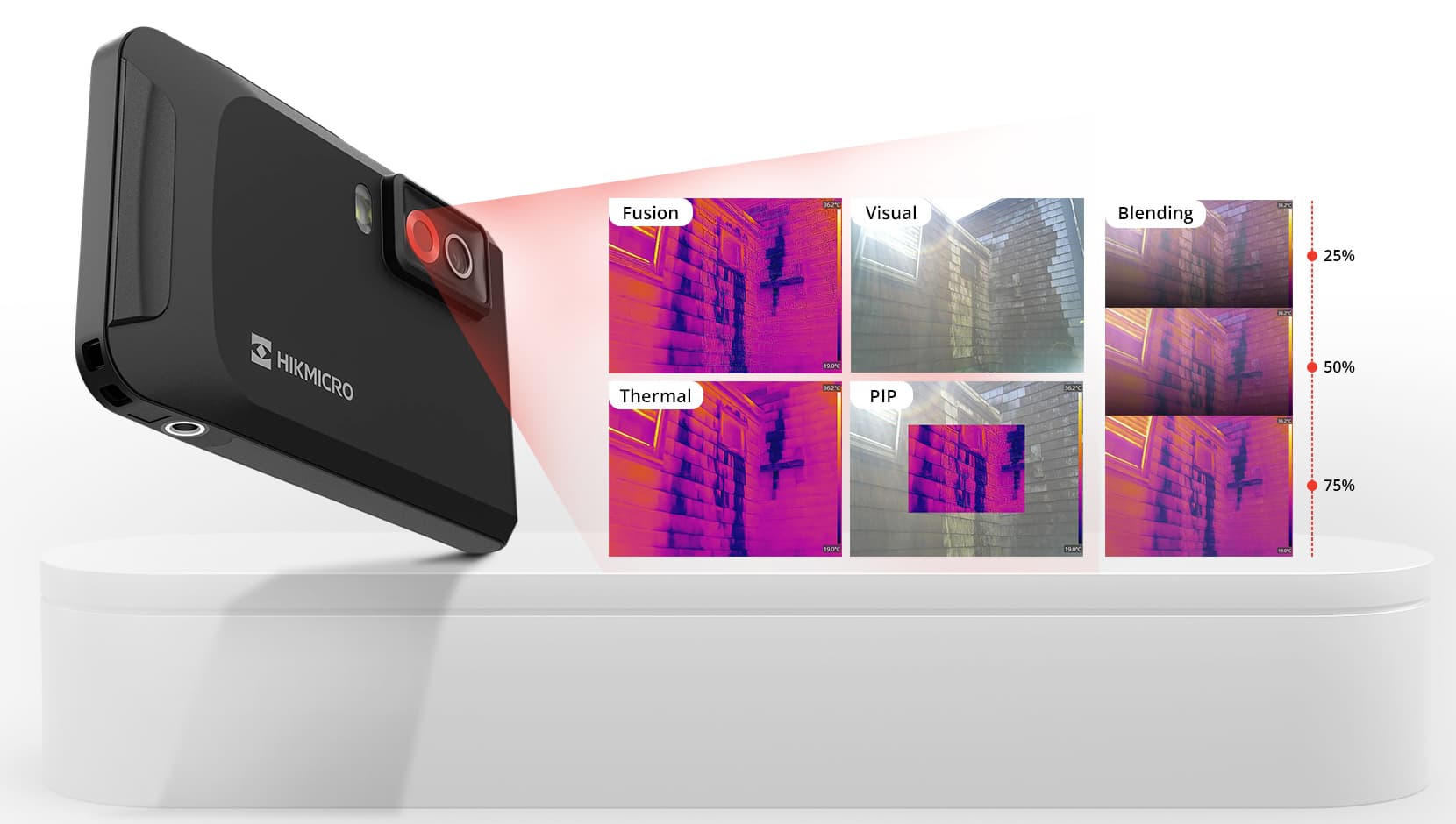

Dual Thermal-Visible Camera The HIKMICRO Pocket2 features both an IR camera and a visible camera, enabling you to switch between multiple image modes (Thermal, Visual, PIP, Fusion, or Blending) and save visual and thermal images simultaneously with just one click, providing clear reference images. This ensures an efficient workflow and fast inspection report.

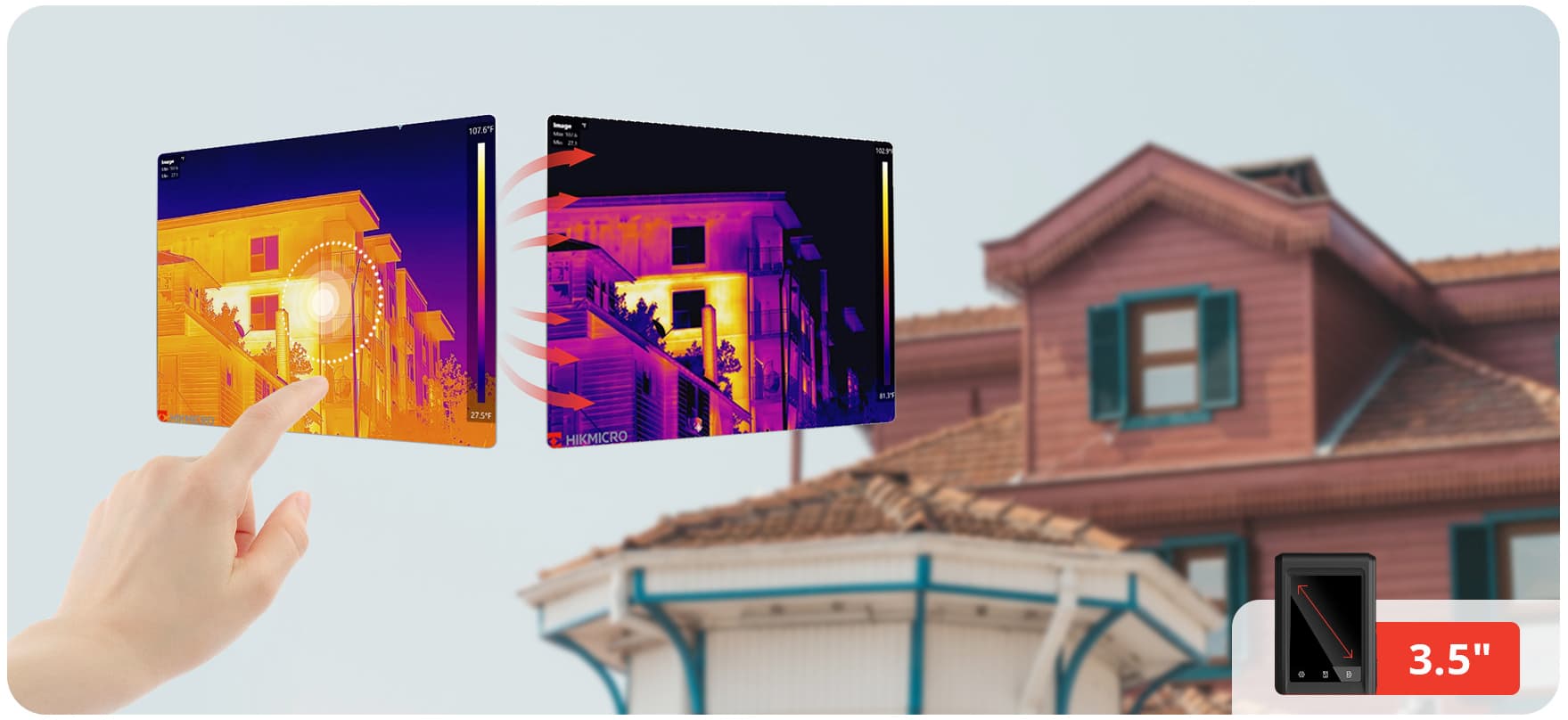

3.5” LCD Touch Screen The Brilliant 3.5" 640x480 Touchscreen with auto-rotation simplifies operations, including advanced 1-Tap Level and Span mode, instantly improving image contrast and highlighting potential problems.

Adjustable Image Settings Open the image adjustment capabilities to adjust color palettes, color distribution, and other settings to create your desired image effect.

Wide and Precise Temperature Measurement

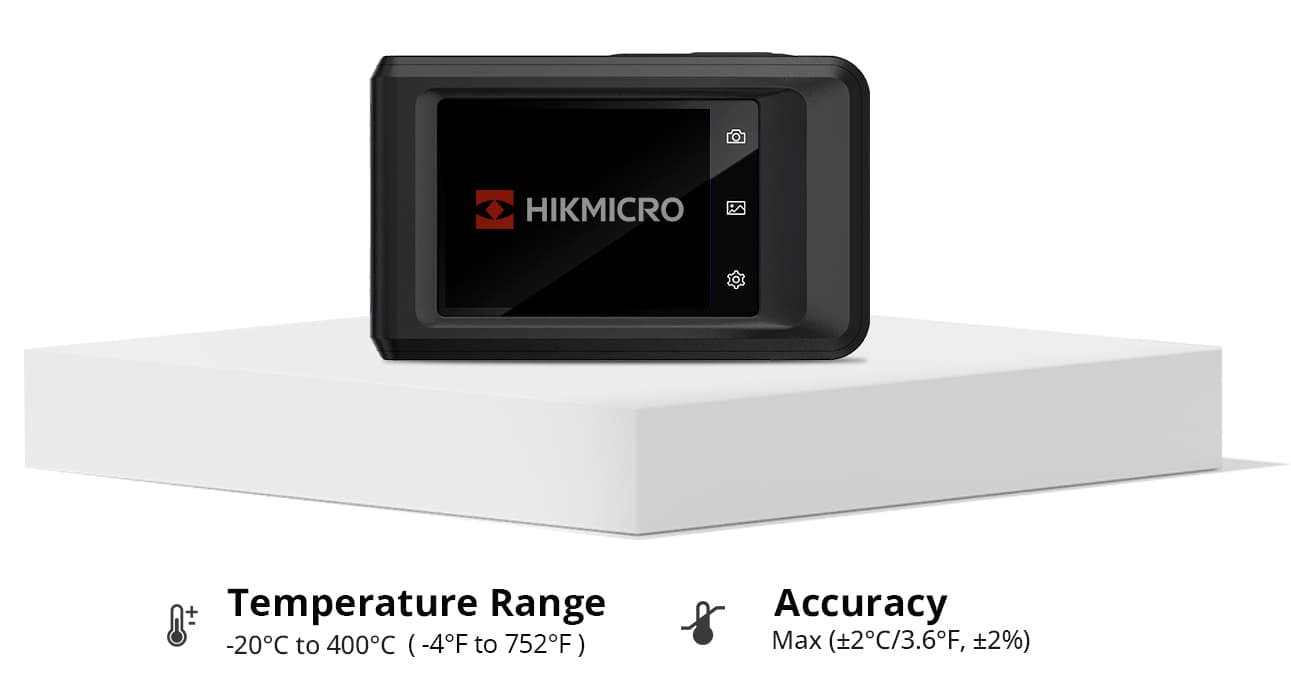

Wide Measurement Range & Accuracy The HIKMICRO Pocket2 features a wide temperature measurement range of -20? to +400?. It can also measure temperatures with max(±2?, 2% of the reading) accuracy for precise temperature measurements.

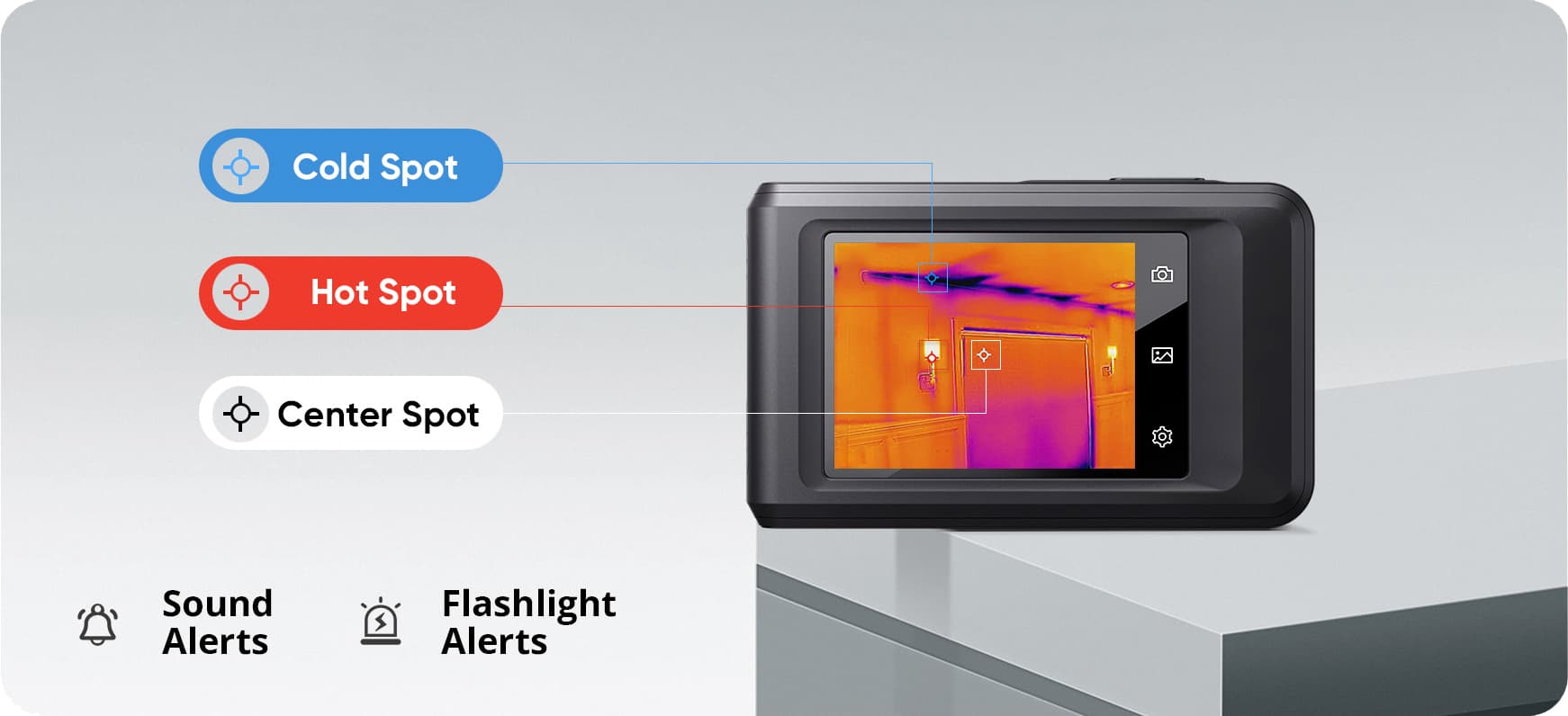

Fast Troubleshooting The HIKMICRO Pocket2 is an essential tool for fast troubleshooting in HVAC, electrical, and mechanical fields. It identifies central, maximum, and minimum temperature values and provides instant alerts for exceeding predefined thresholds, enhancing safety and minimizing downtime.

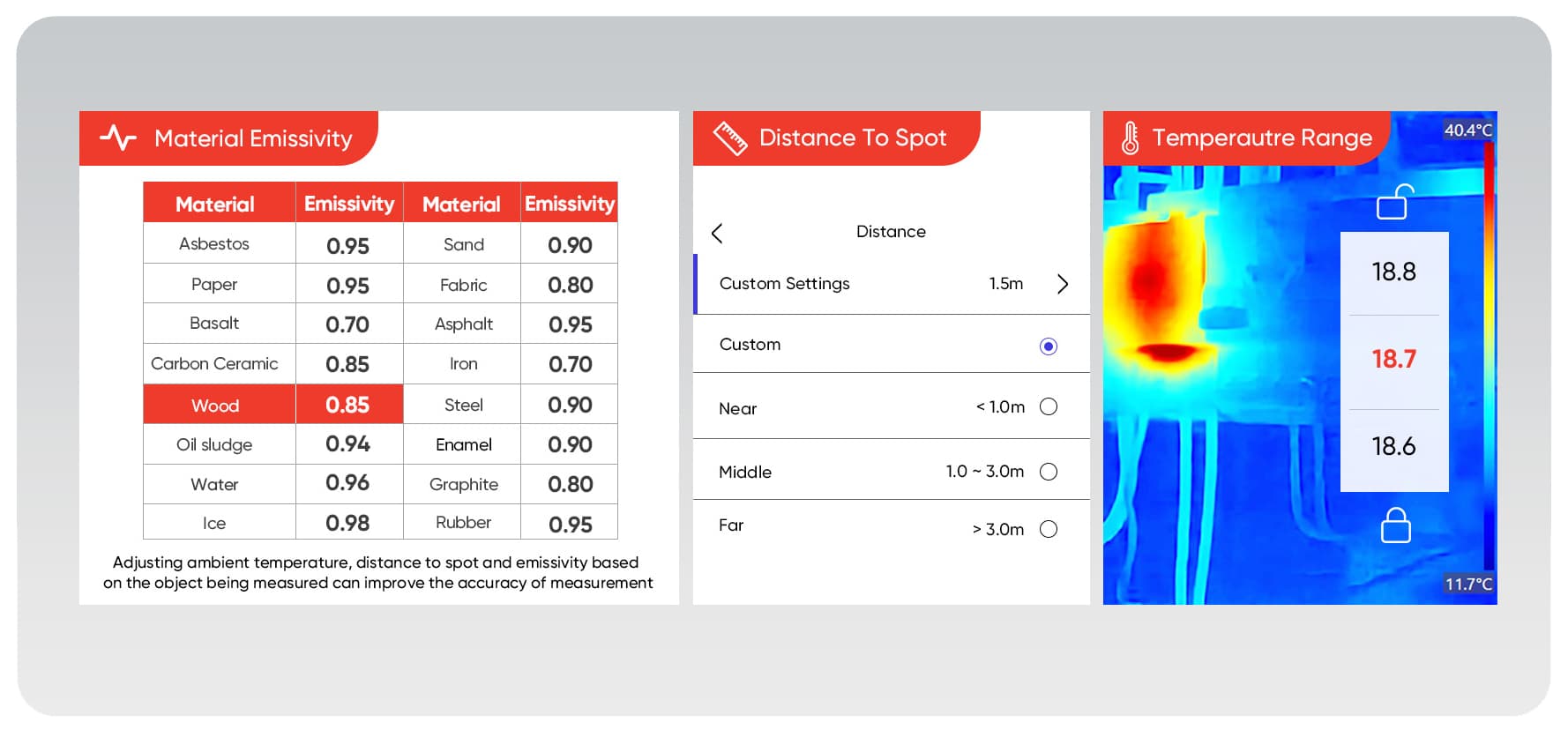

Flexible Measurement Adjustment Having adjustable measurement settings is essential for obtaining accurate temperature readings. With the HIKMICRO Pocket2, users have the option to adjust the emissivity, distance, and temperature range, among other settings. This capability significantly improves the accuracy of the measurements.

Thinkful Features Designed for Ease of Use

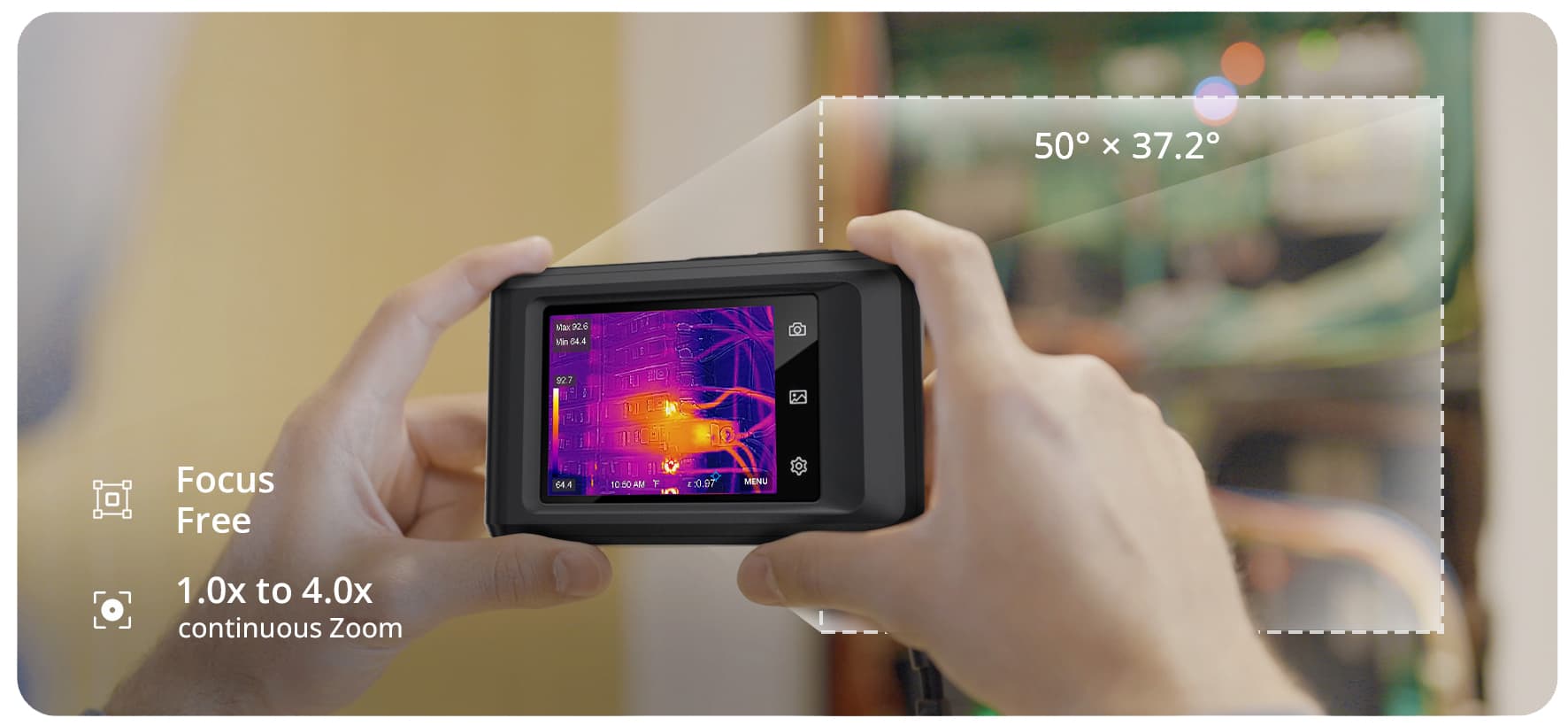

Wide FOV The HIKMICRO Pocket2 offers a wide 50° × 37.2° field of view (FOV) and 1.0x to 4.0x continuous digital zoom, allowing you to capture larger areas with more details effortlessly without adjusting the focal length. It's a convenient grab-and-go device for easy and hassle-free imaging.

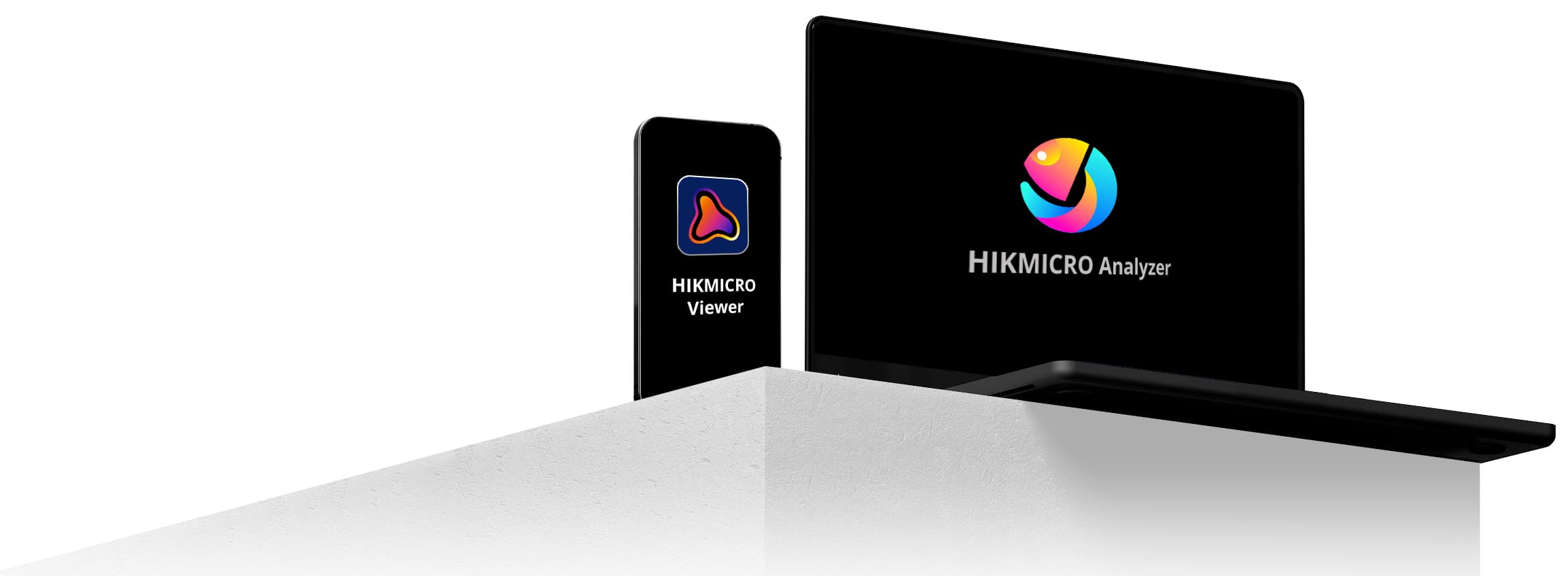

Professional Yet Free Software Connect your camera to the HIKMICRO Viewer App wirelessly for instant file transfer to your phone. Analyze, share, and generate reports on-site. Use HIKMICRO Analyzer for PC (Windows) to batch-analyze radiometric IR images and videos, support Pocket2 live projection, and create professional reports and custom templates.

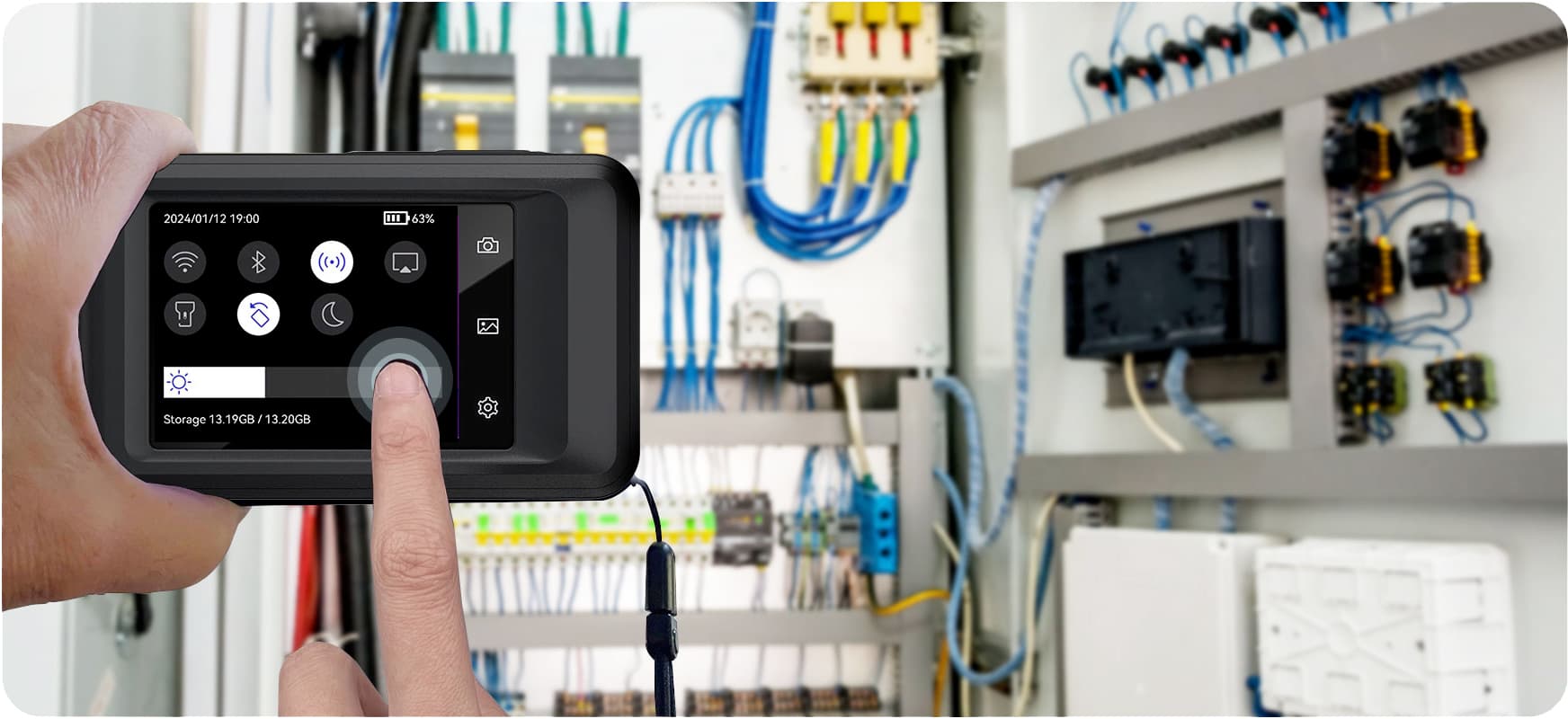

Work More Effectively With features such as text and QR code scan annotations, as well as single or auto time-lapse image capture, you can easily capture and annotate images to identify potential issues. Additionally, the camera's swipe-down or touch icons provide easy access to all camera features and settings, allowing you to quickly adjust settings and streamline your workflow. These features help you to work more effectively and productively.

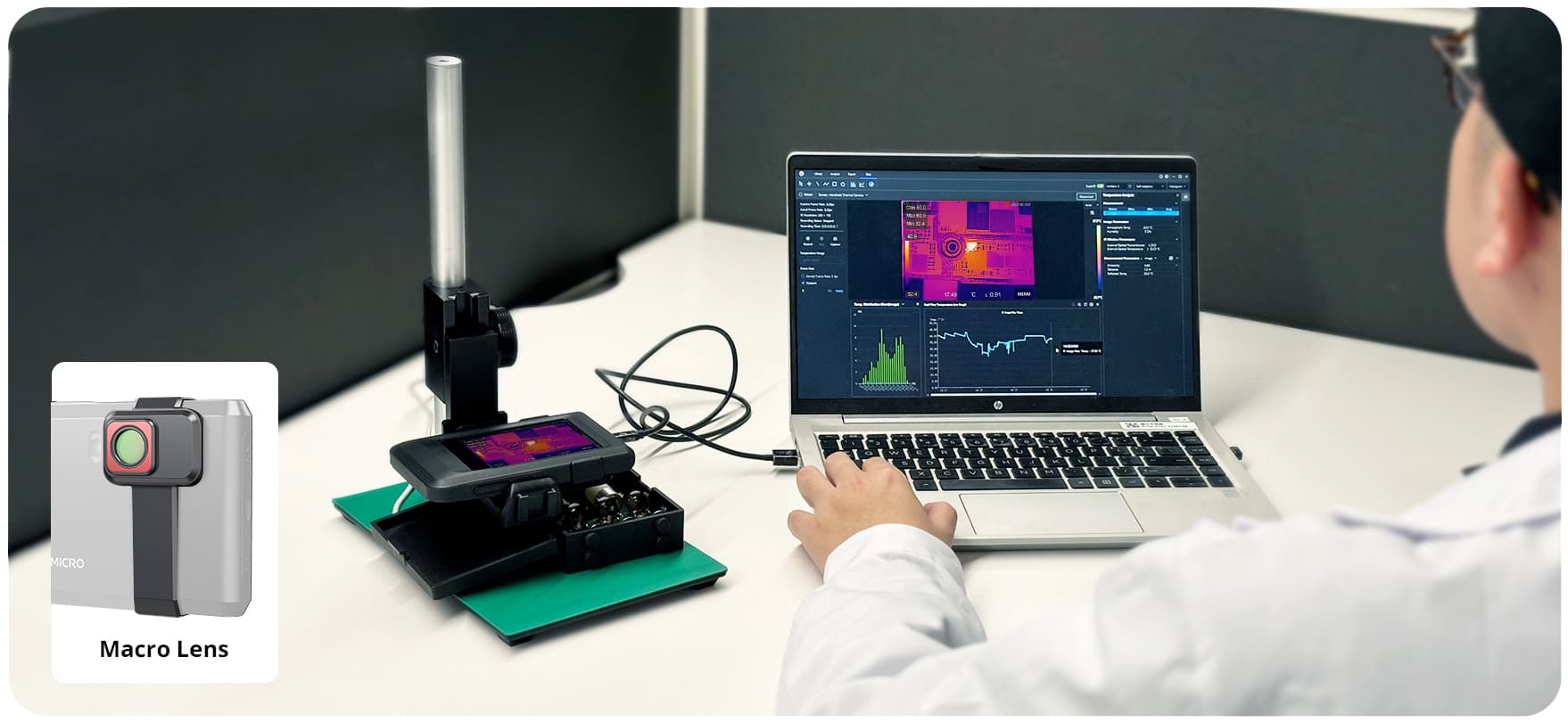

Innovative Macro Mode Using an extra clip-on macro lens and desk stand bracket, the Pocket2 thermal camera can see details as small as 100 microns stably and take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

Unmatched Portability and Durability

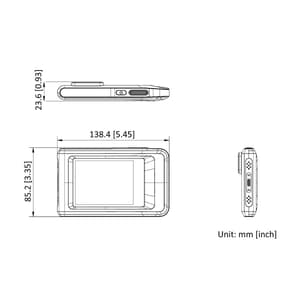

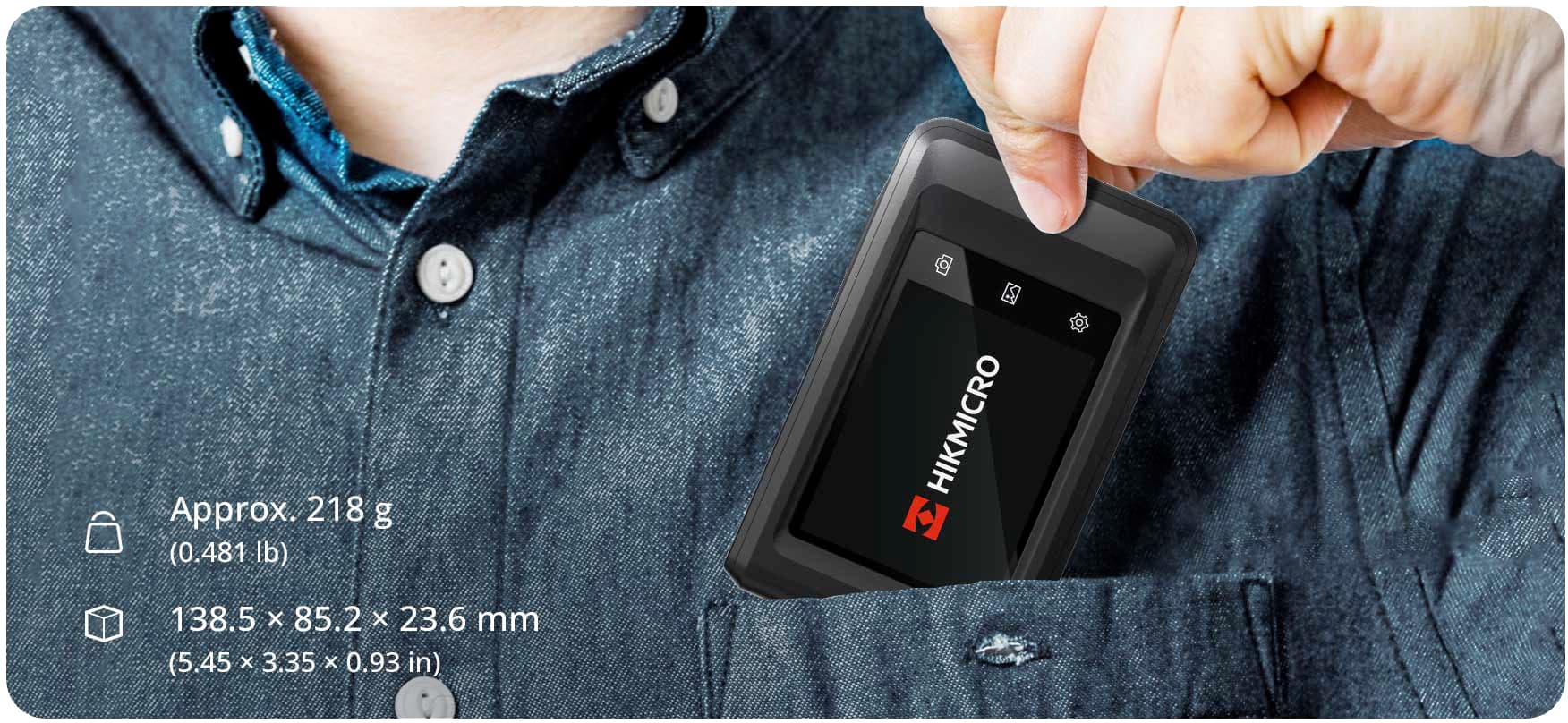

Portable Pocket-sized Design The HIKMICRO Pocket2 is designed with portability and convenience in mind. Its compact size and ergonomic shape make it easy to carry and hold, fitting perfectly in your pocket or tool bag. Take it with you wherever you go for hassle-free use on the job.

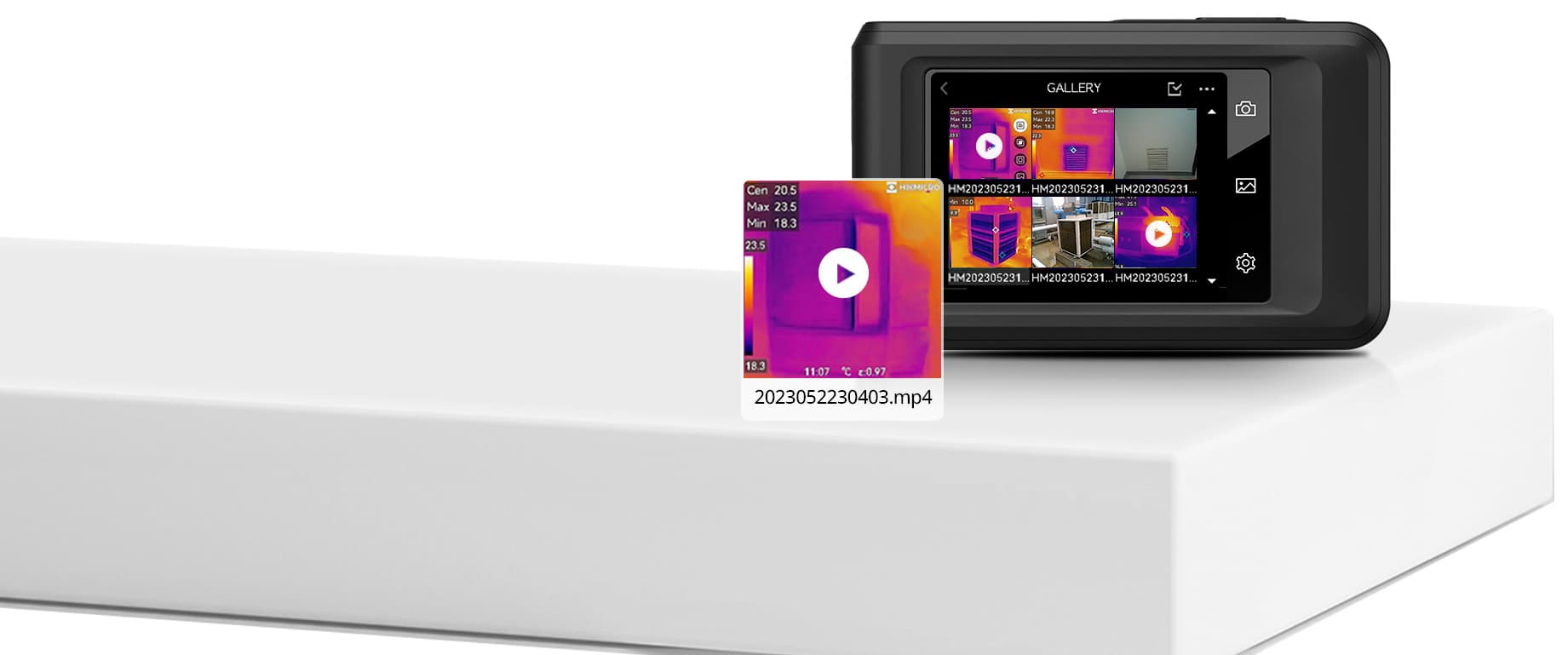

Meets Your Image Capture and Video Recording Needs With a built-in 16GB internal memory, you can capture more than 60,000 images and record approximately 54 hours of video in MP4 or Radiometric format. Additionally, enjoy the convenience of onboard playback and post analysis of your video, Whether you require fast troubleshooting or professional analysis, our product is the perfect choice for your needs.

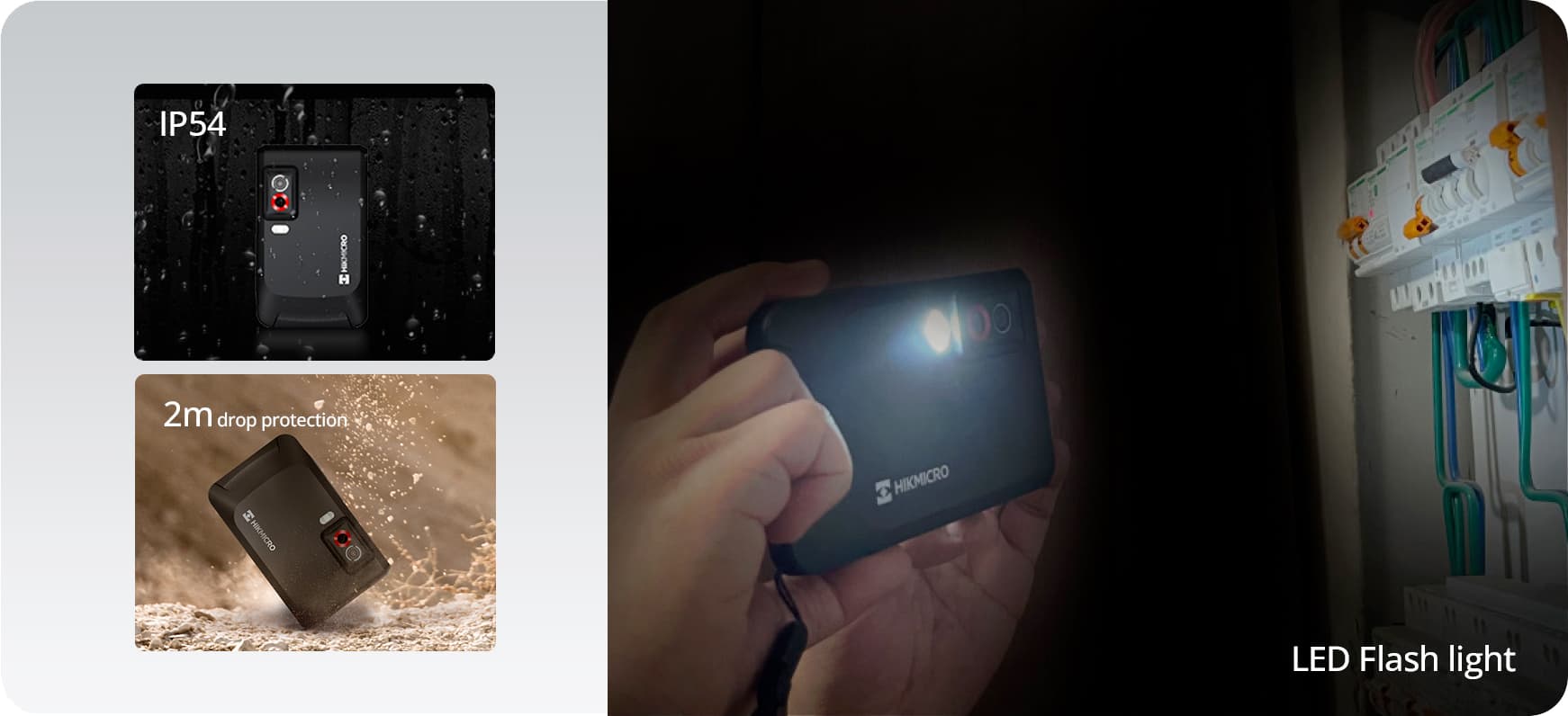

Reliable in harsh situations The HIKMICRO Pocket2 offers worry-free usage in tough environments thanks to its IP54 rating, which provides ample protection against dust and splashing water, as well as its ability to withstand drops of up to 2 meters. A built-in LED flashlight allows users to easily work in low-light conditions, record thermal readings, and capture high-quality digital images without the need for an additional light source.

Package Content:

• 1x Thermal Imaging Camera
• 1x Soft Carrying Pouch
• 1x 2-in-1 USB-A/C to USB-C Cable
• 1x Wrist Strap
• 1x Printed Quick Start Guide
• 1x Calibration Certificate
