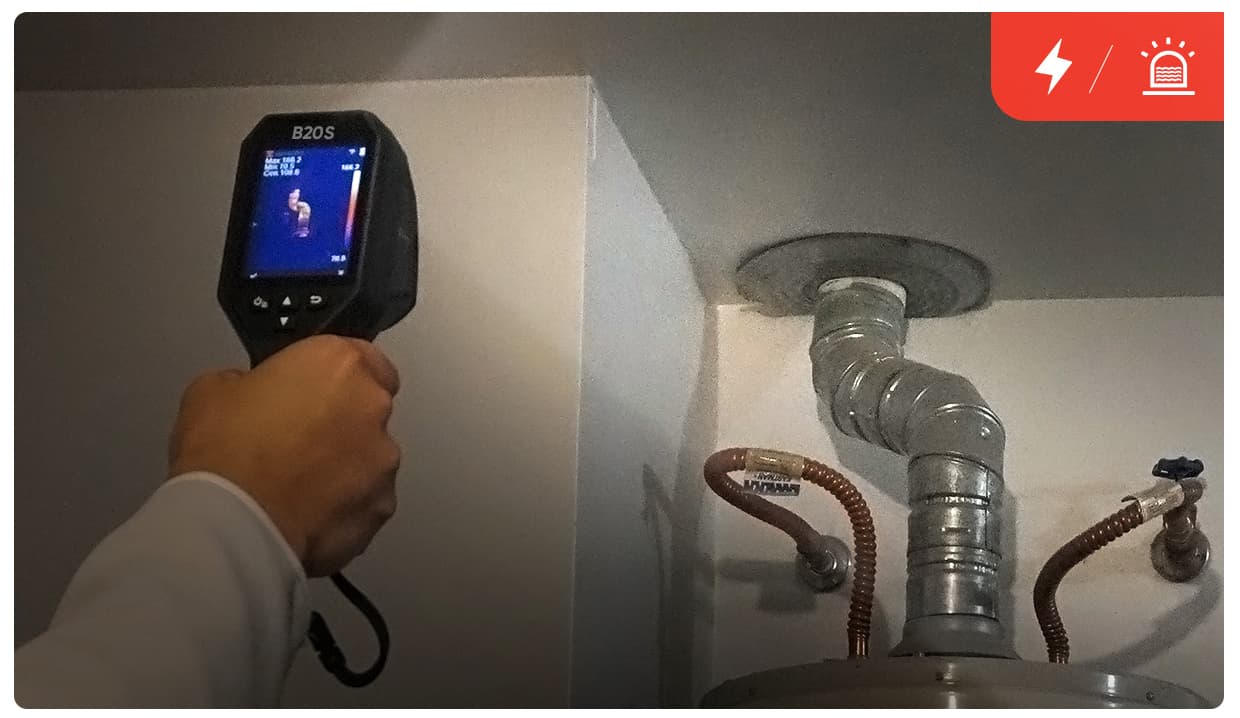

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.

Features:

• Compact easy to use thermal imaging camera for daily operation.
• Support SuperIR image enhancement technology
• Support Multiple Scene modes, Some support SuperScene intelligent detection
• Up to 6 hours continuous running
• Image Modes: Thermal / Visual / Fusion / PIP
• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Blue Yellow

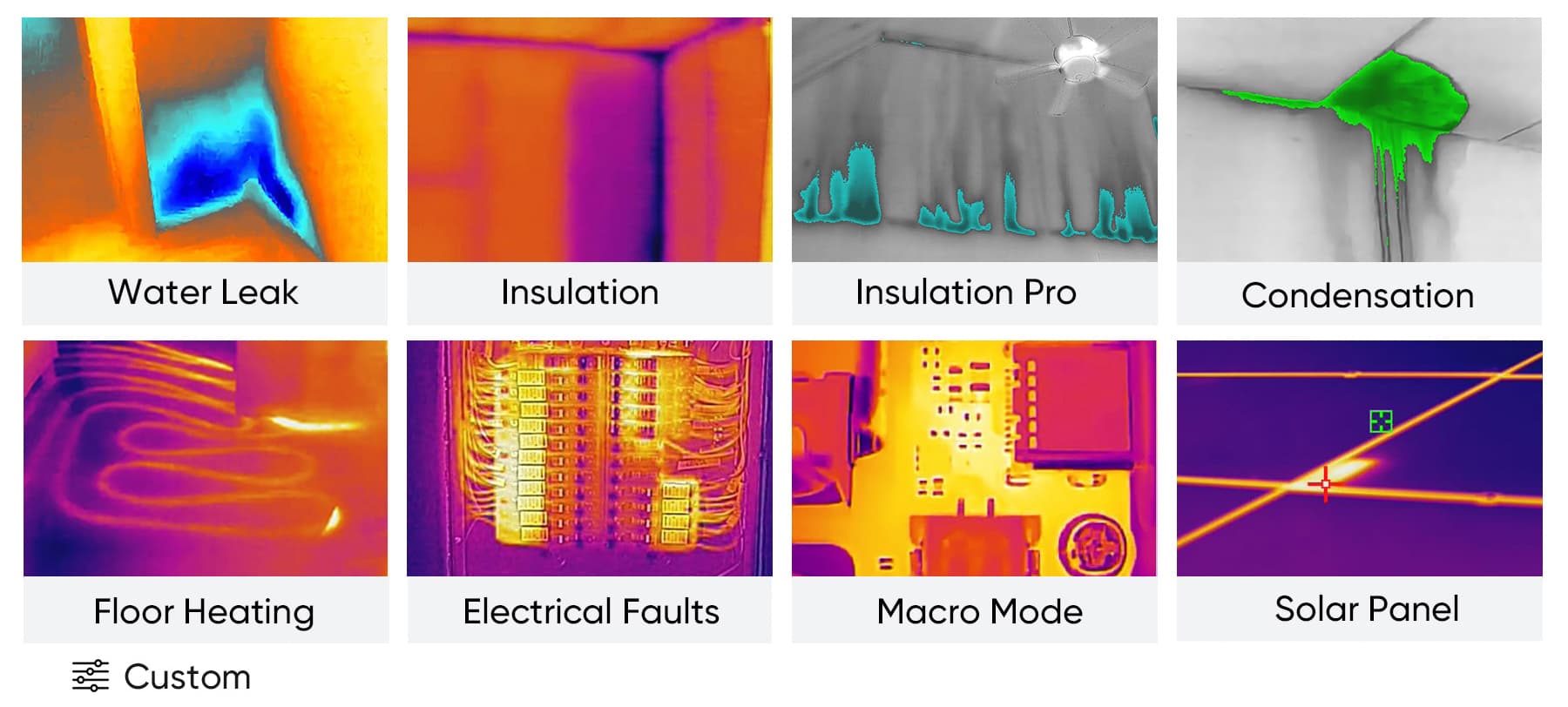

• SuperScene Mode: Custom, Water Leak, Insulation, Floor Heating, Electrical Faults, Solar Panel, Macro Mode, Insulation Pro, Condensation
• Smart SuperScene Alarm: Water Leak, Insulation, Floor Heating
• Alarm: More than, Less than
• Alarm Linkage: Flashing Alarm, Audible Warning, Alarm Mode Palettes
• Temperature Measurement Mode: Measurements presets (center spot, max spot, min spot, off)

Accuracy:

• Max. (± 2°C/3.6°F, ± 2%),
• For ambient temperature 15°C to 35°C (59°F to 95°F)
• Object temperature above 0°C (32°F)

Applications:

• Existing Connection Issues
• Freezer Room
• Insulation
• Electrical Box
• Car
• In Floor Heating
• Electrical Cabinet
• Solar Panel

Package Content:

• 1x Thermal Imaging Camera
• 1x Wrist Strap
• 1x USB-A to USB Type-C Cable
• 1x Calibration Certificate
• 1x Printed Quick Start Guide



New SuperScene Mode Focus on Findings, Not Setup. New automatic scene profiles handle the tech. You handle the inspection. Simplify work.

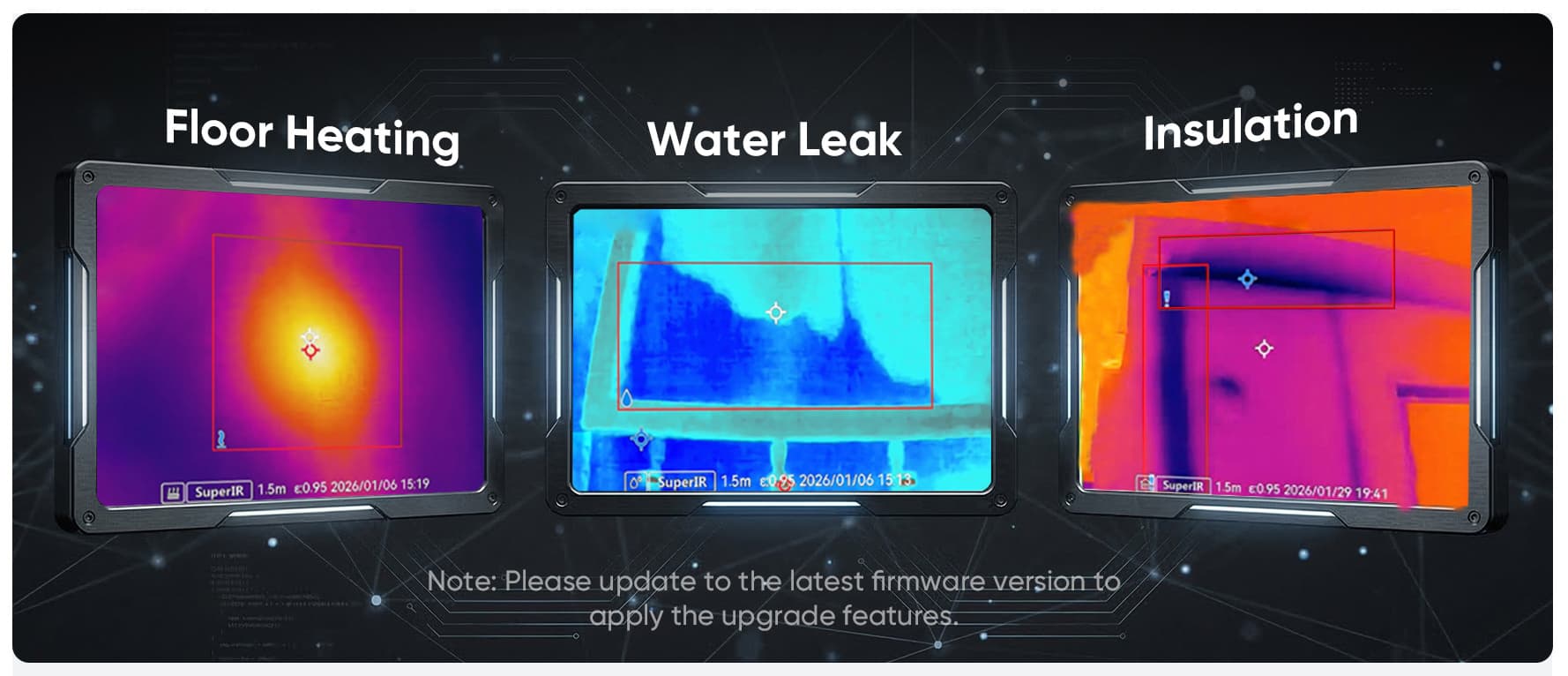

Smart SuperScene: Think Like an Expert AI analyzes thermal images and flags anomalies on screen - water leaks, insulation gaps, floor heating issues. Raw data becomes clear, actionable information. The result: What once required specialist expertise now takes seconds. Faster. Consistent. Confident.

High Image Quality Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimized image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.

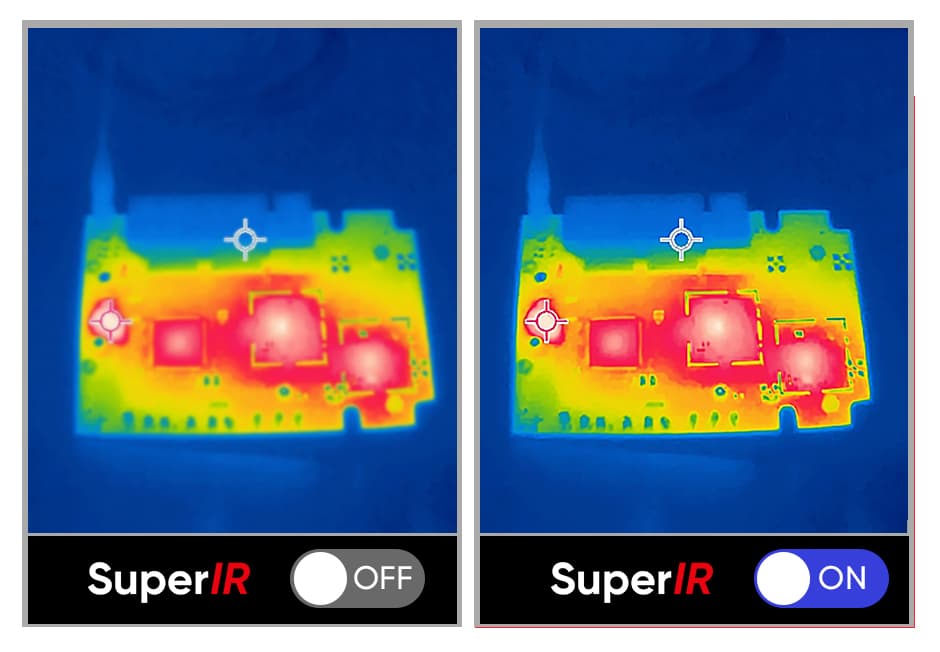

Enhanced Thermal Clarity with SuperIR HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture. Real-time SuperIR is only available in thermal mode.

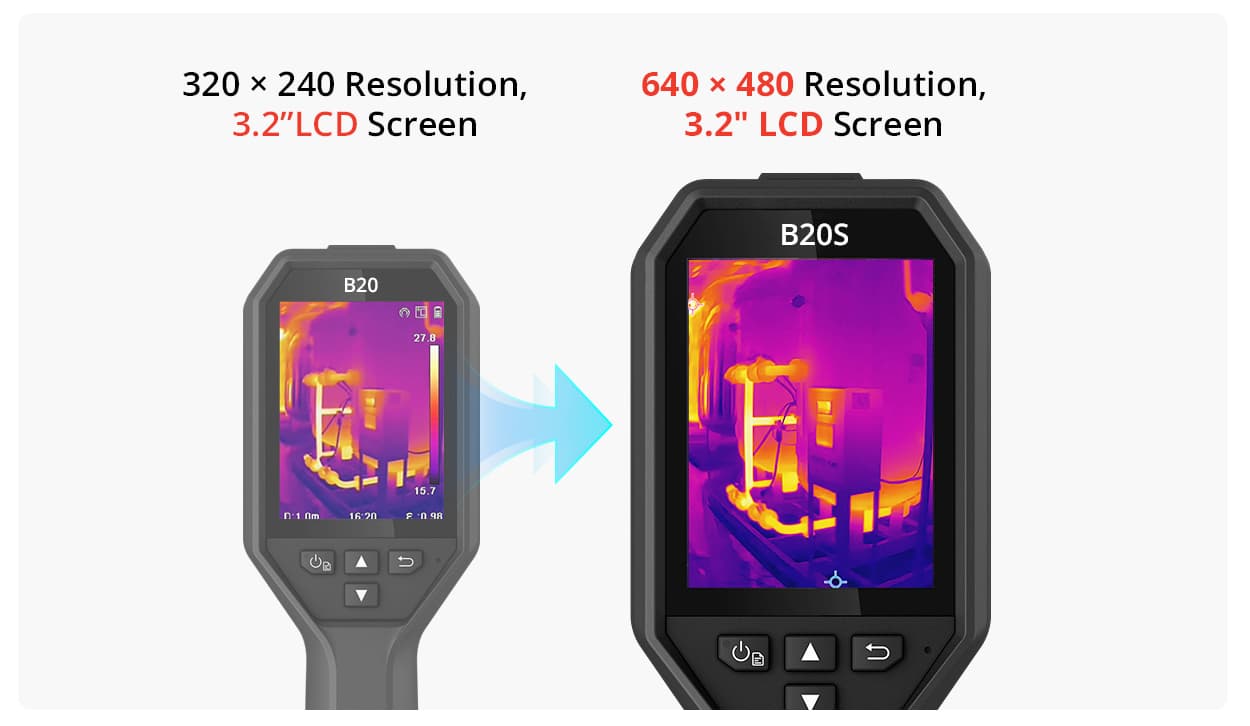

Experience the New and Improved Display The B20S features a high-resolution display of 640x480. With the SuperIR , you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.

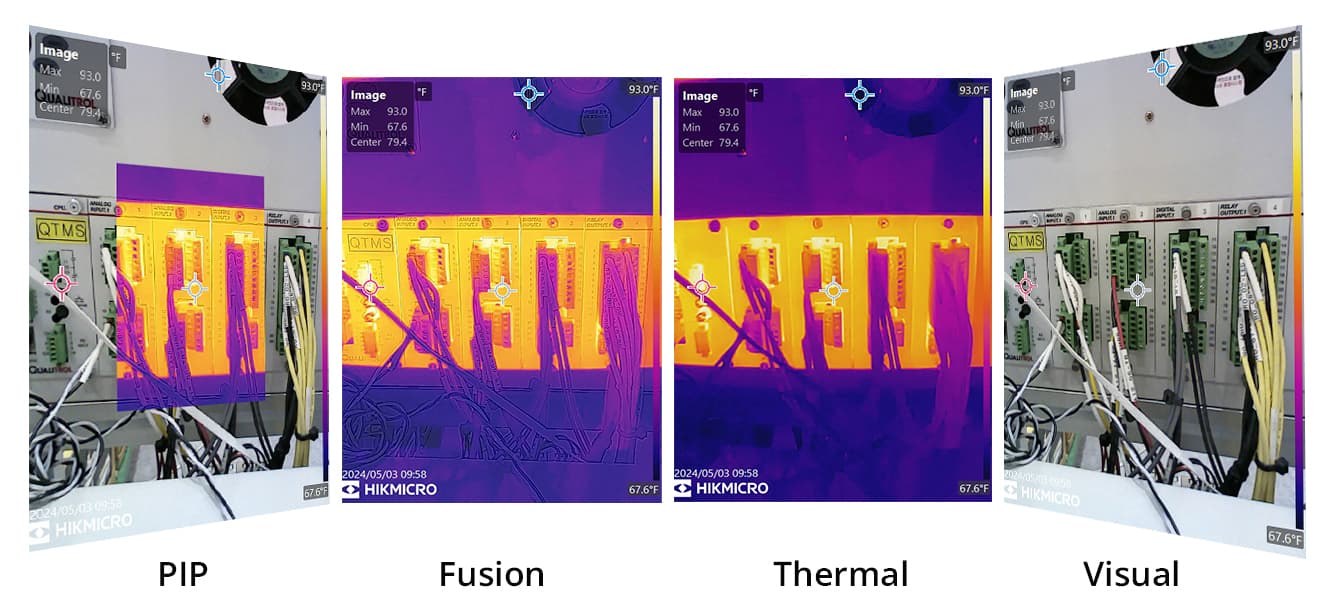

4 Images Modes Thermal, Fusion, PIP, and Optical modes to suit your preferred view.

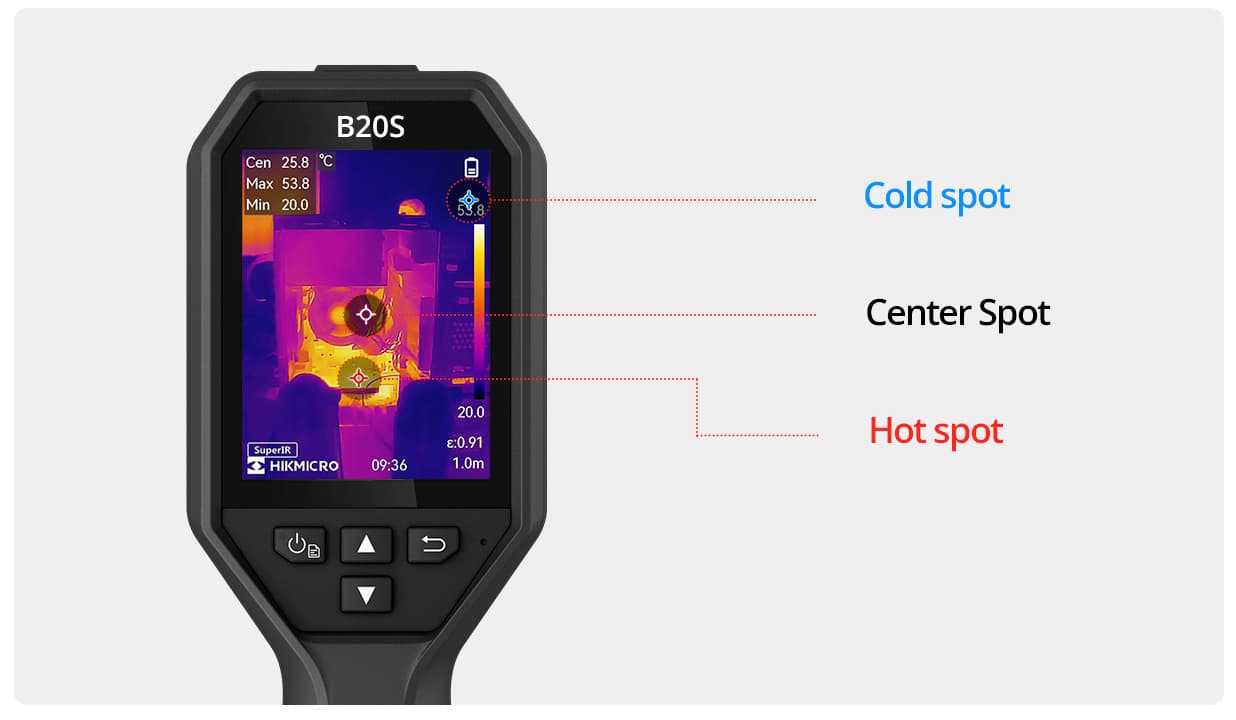

Full-screen Precise and Wide Temperature Measurement The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

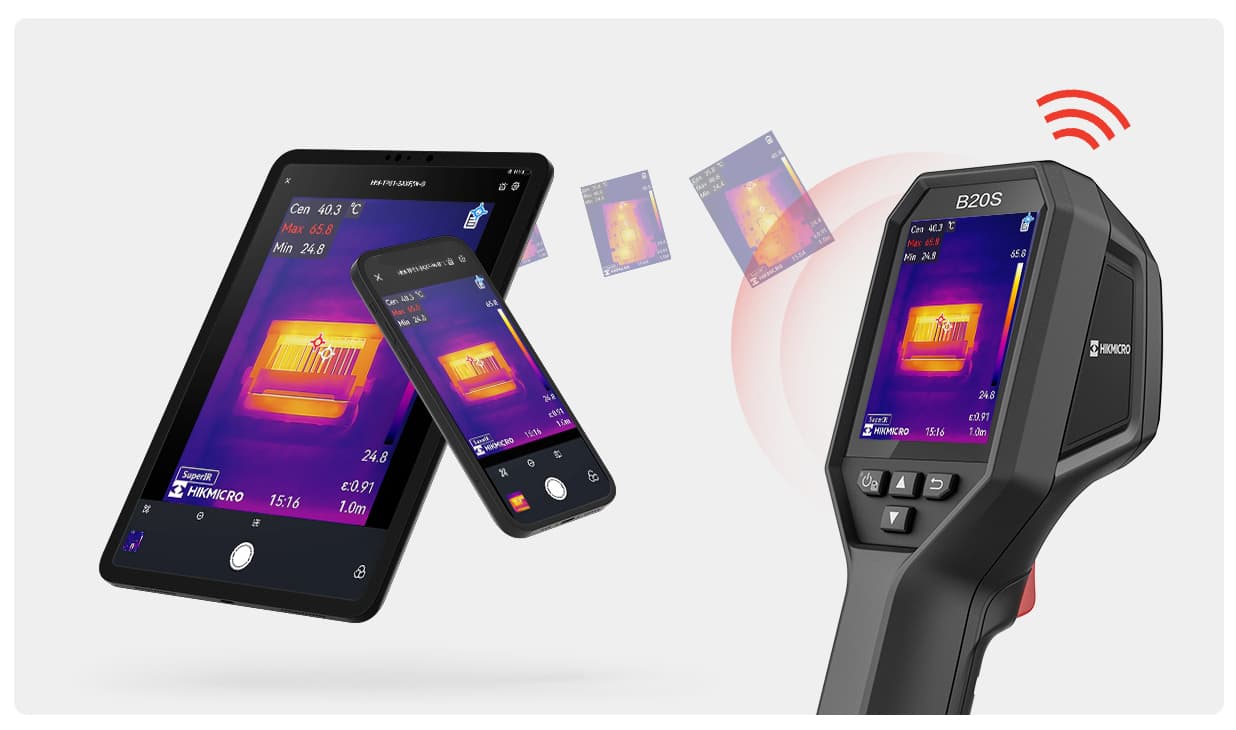

Wi-Fi Connectivity Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

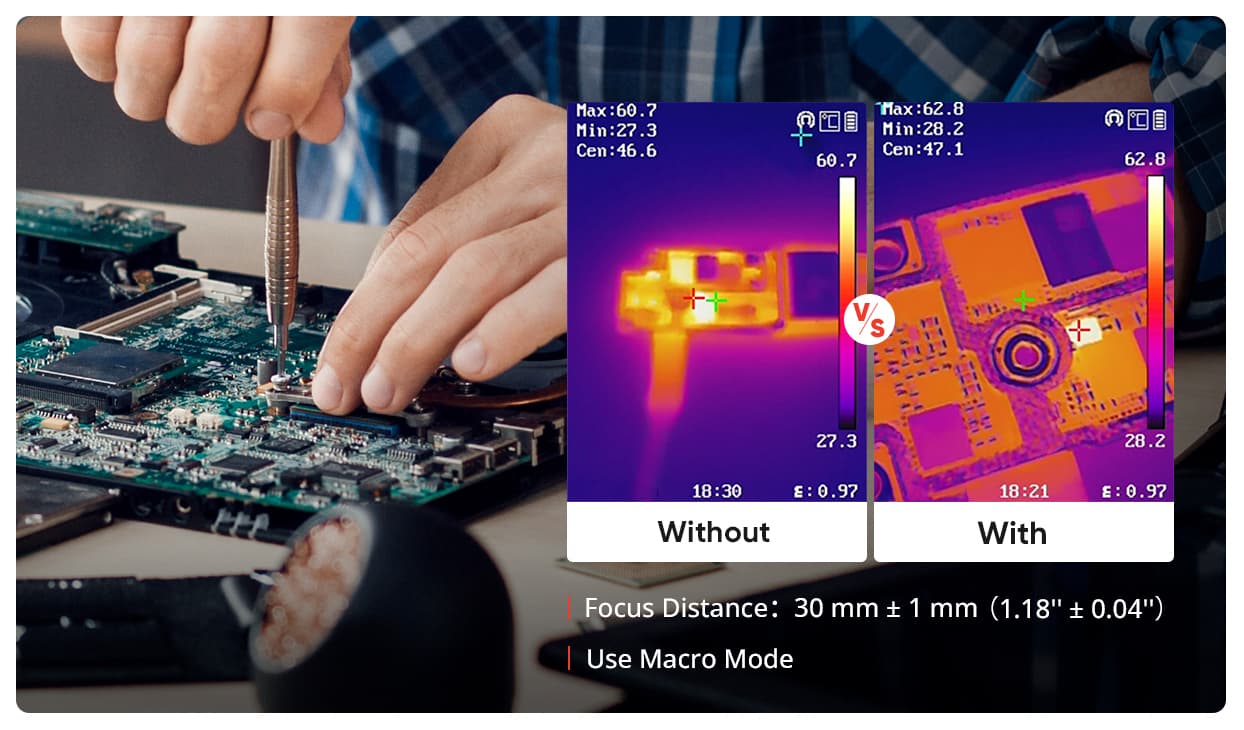

Optional innovative macro mode Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

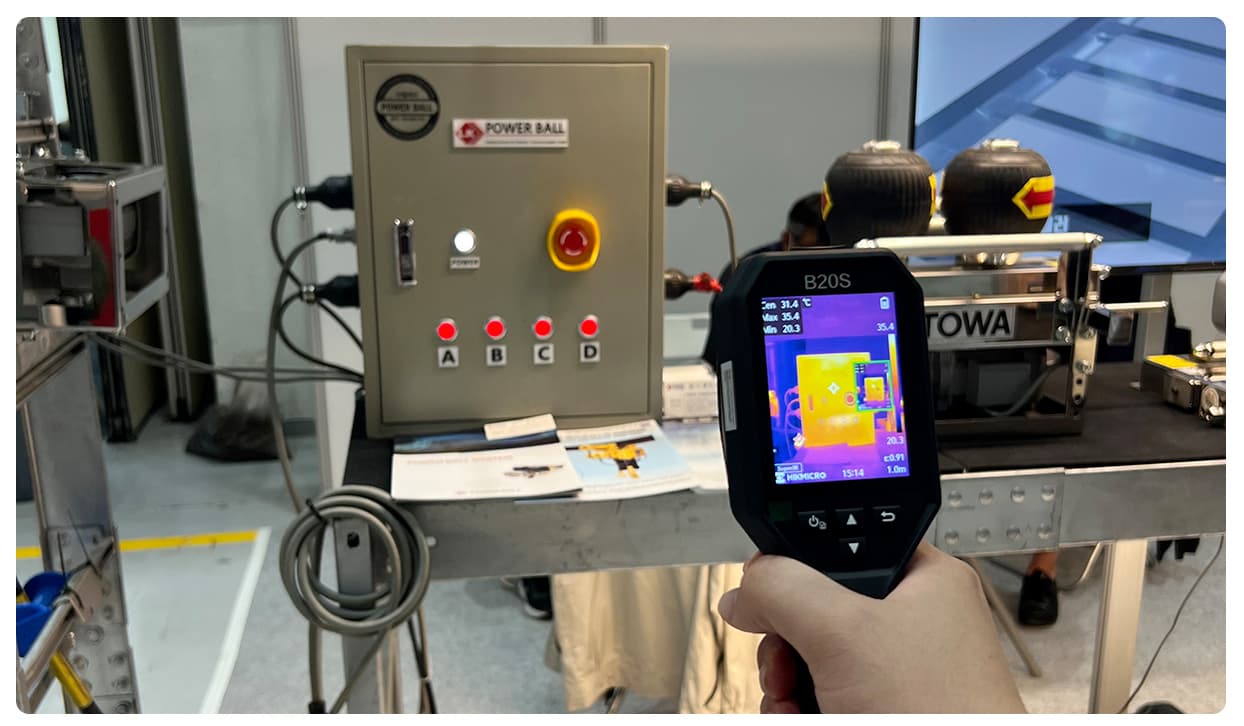

High Temperature Alarm Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

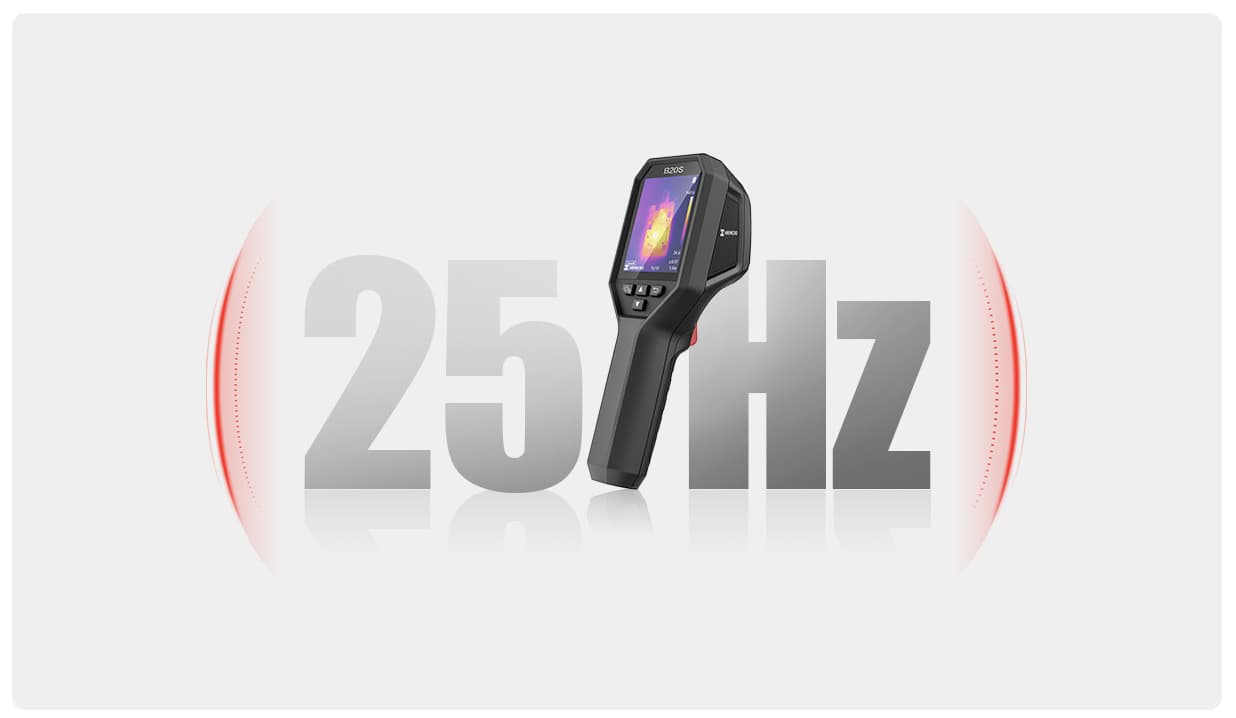

Fast Image Frequency Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

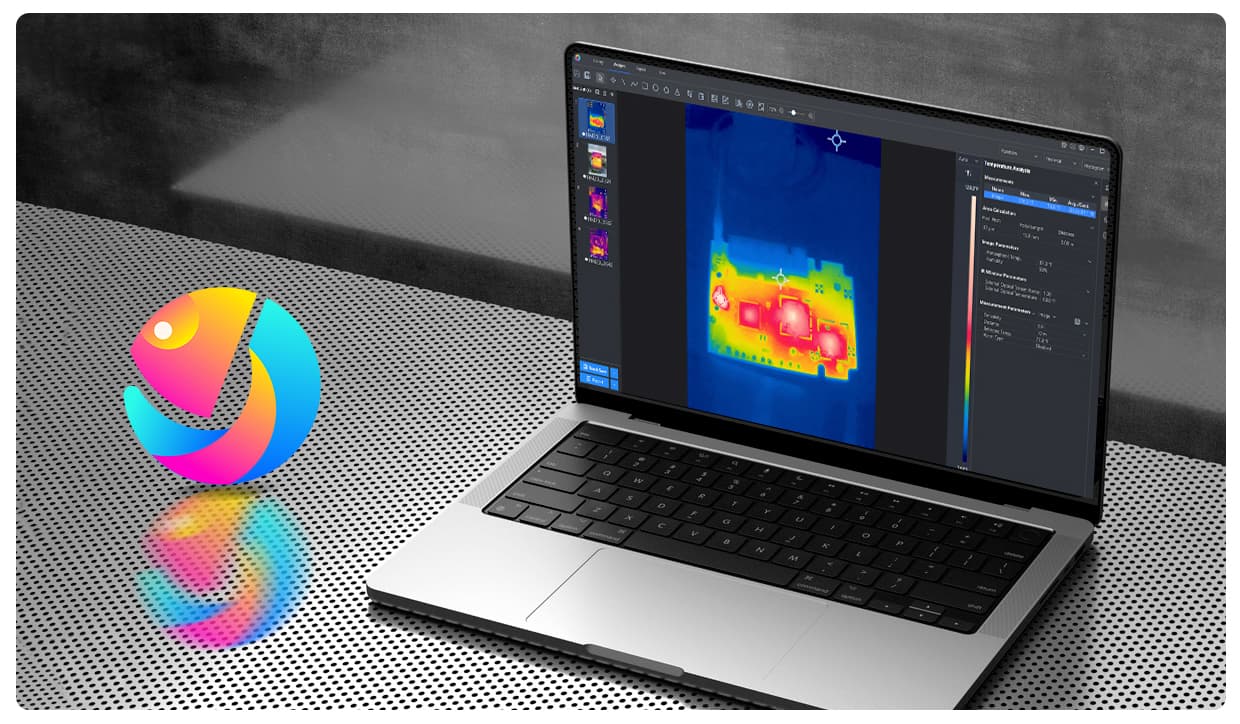

HIKMICRO Analyzer Software Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
