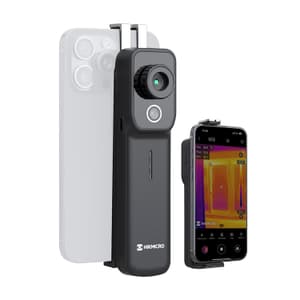

The HIKMICRO innovation MiniX is a versatile thermal imaging tool that wirelessly connects to your smart device. The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring. It features a dual-lens, A high-resolution VOx detector, and a 0.3 MP optical camera for added detail.

With SuperIR™ and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements. The wide temperature range of -20°C to 550°C makes it ideal for building inspection, HVAC, electrical and mechanical equipment maintenance. The MiniX has a 25 Hz frame rate for fast inspections and a Wi-Fi function for real-time image sharing. It's a powerful thermography tool that fits in your pocket, ready whenever you need it.

Features:

• SuperIR image enhancement technology on live view and captured images.
• Wireless connection for iOS and Android
• Thermal, Fusion, PIP, Visual, and Blending modes
• Accuracy: Max (±2°C/3.6°F, ±2%) for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
• Measurement Tools: Center Spot, Hot Spot, Cold Spot (User-definable: 3 spots, 3 rectangles & 1 line)
• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
• Image Modes: Thermal / Visual / Fusion / PIP / Blending
• Installation Method: Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting
• Software Compatibility: HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
• Device Compatibility: iOS (version 14 & later), Android (version 9 & later) smartphones & tablets or Windows devices
• Battery Charging Time: Supports fast charging. Charge to 50% capacity in 30 minutes, 85% in 1 hour, and 100% in 2 hours.



Stable wireless connection, wide compatibility. The HIKIMICRO Mini-X thermal camera connects to Android/iOS devices, eliminating the need to replace it when switching phones

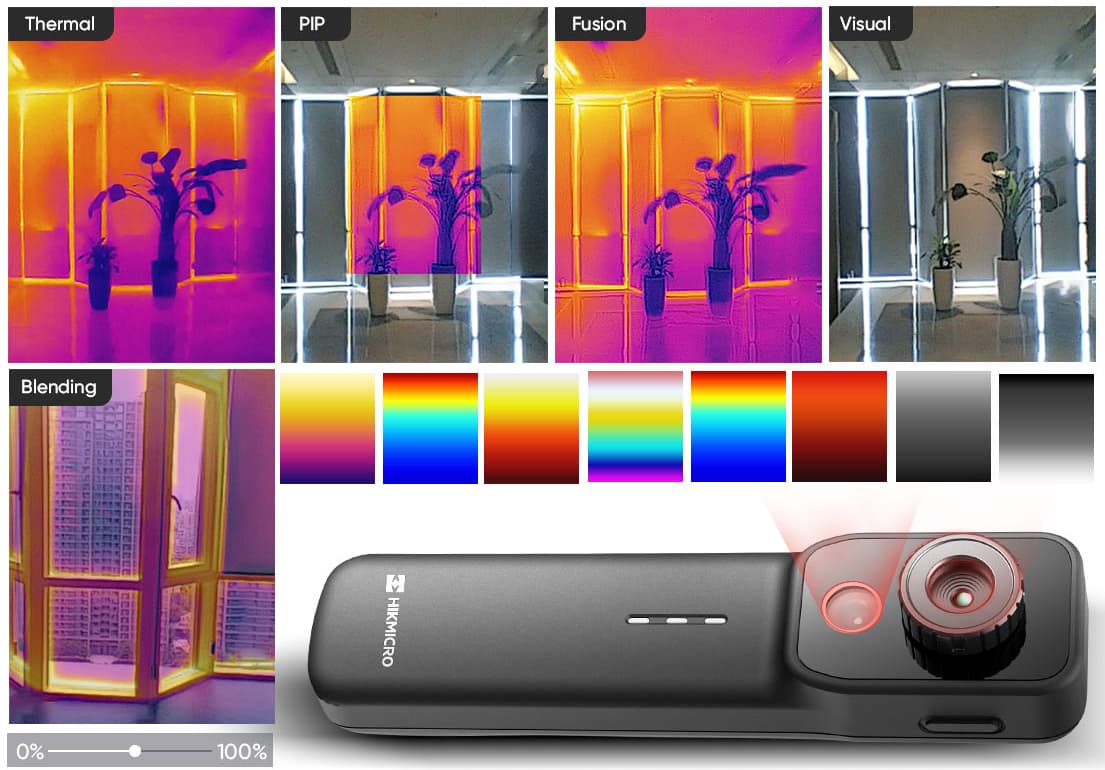

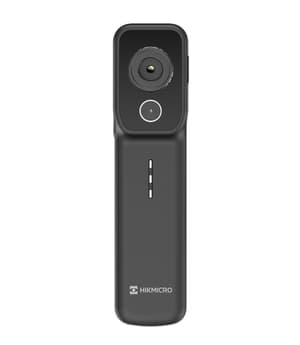

Dual Camera Thermal Imager High-resolution visual and infrared cameras reveal hidden details with 5 image modes and 8 color palettes.

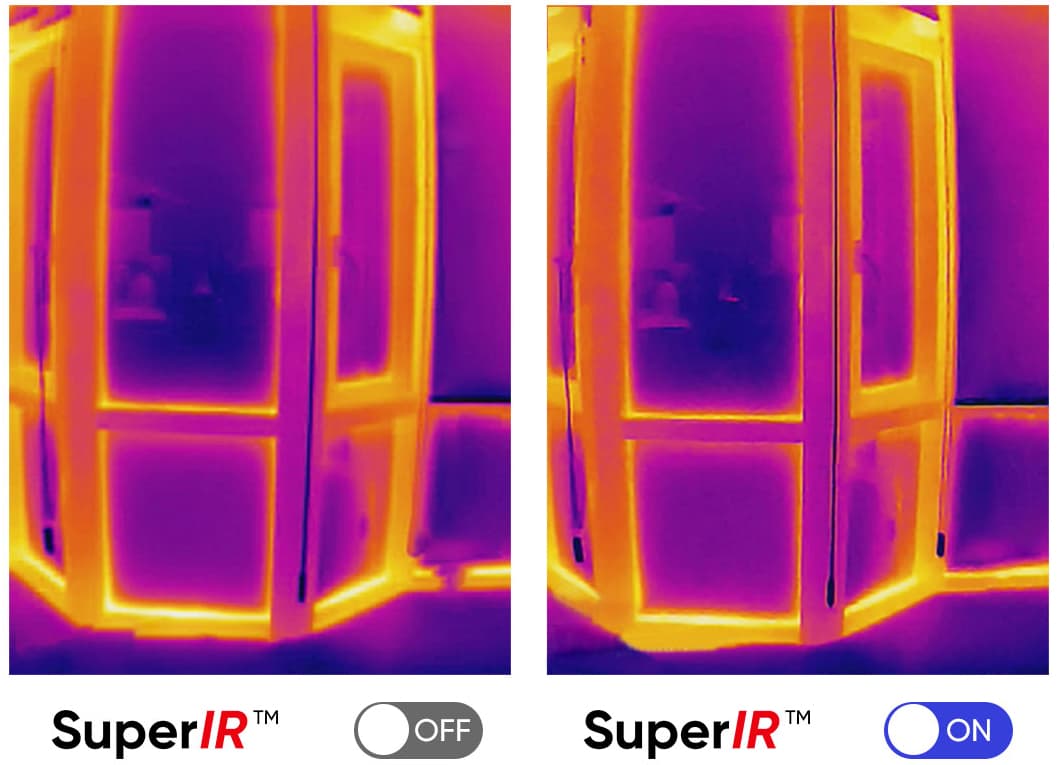

Enhanced Image Quality with SuperIR The HIKIMICRO Mini-X features a highly sensitive VOx detector (DTER < 40 mK) with a resolution of 256 x 192 (49,152) pixels, coupled with an optimized image enhancement algorithm to deliver crisp thermal images.

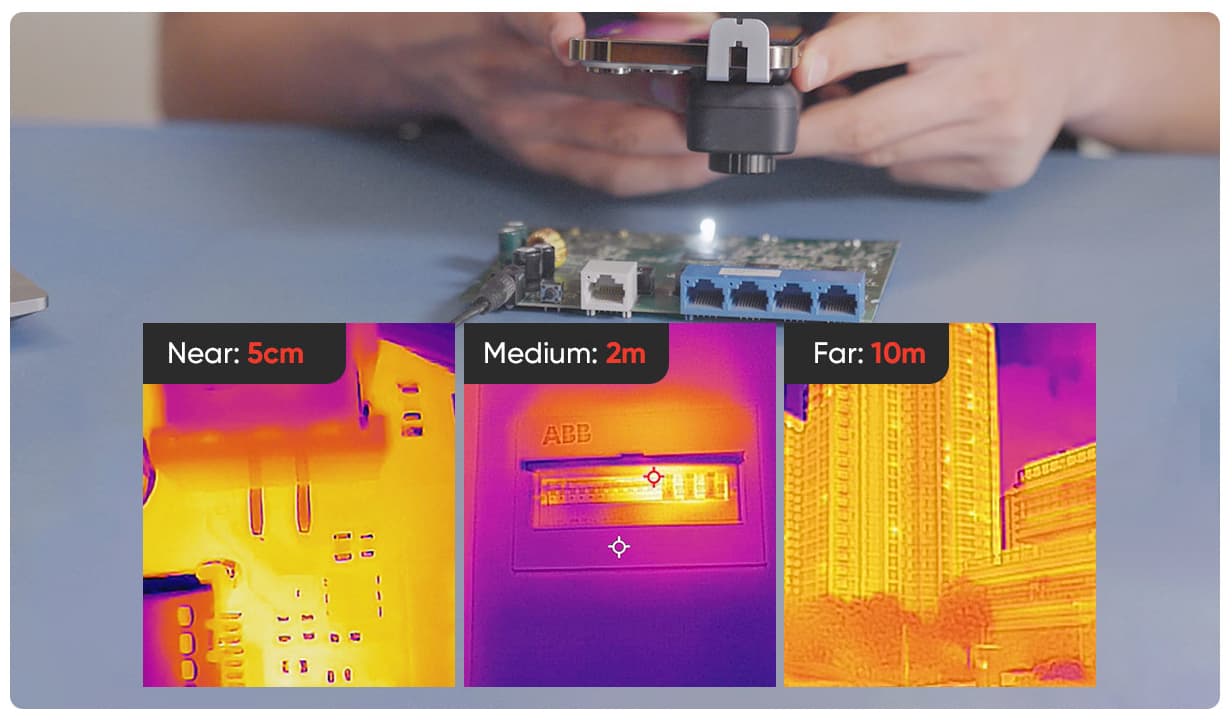

Adjustable Focal Lens Sharp focus from near to far with a 3.5mm adjustable focal length lens for precise details in repairs, inspections, and PCB tracing.

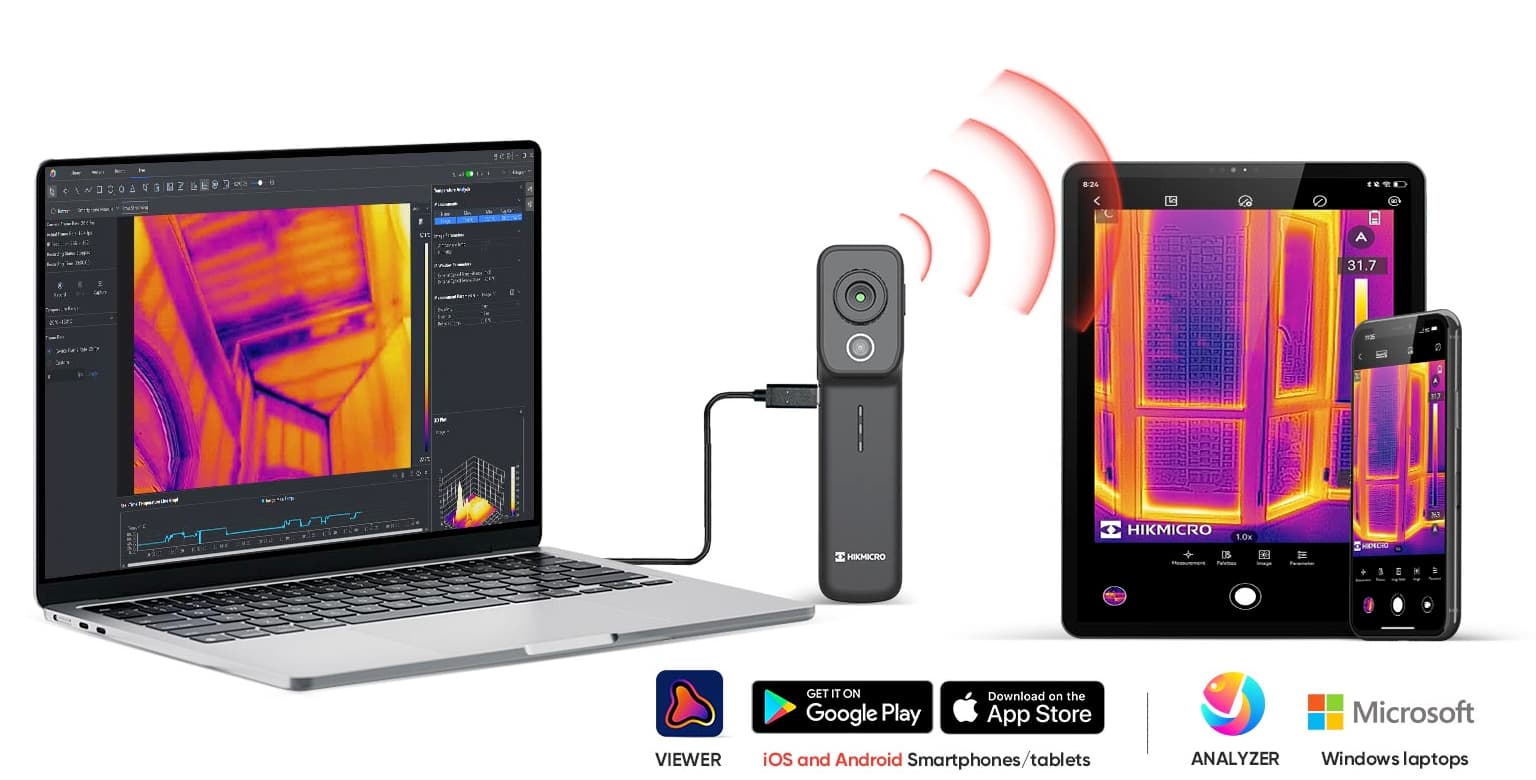

Easy and Stable Wireless Connection With the Mini-X thermal camera, simply scan a QR code for a quick wireless connection and enjoy stable image transmission.

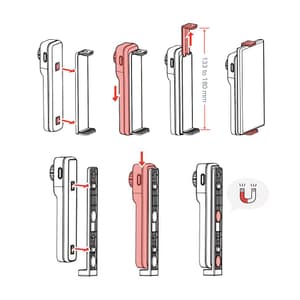

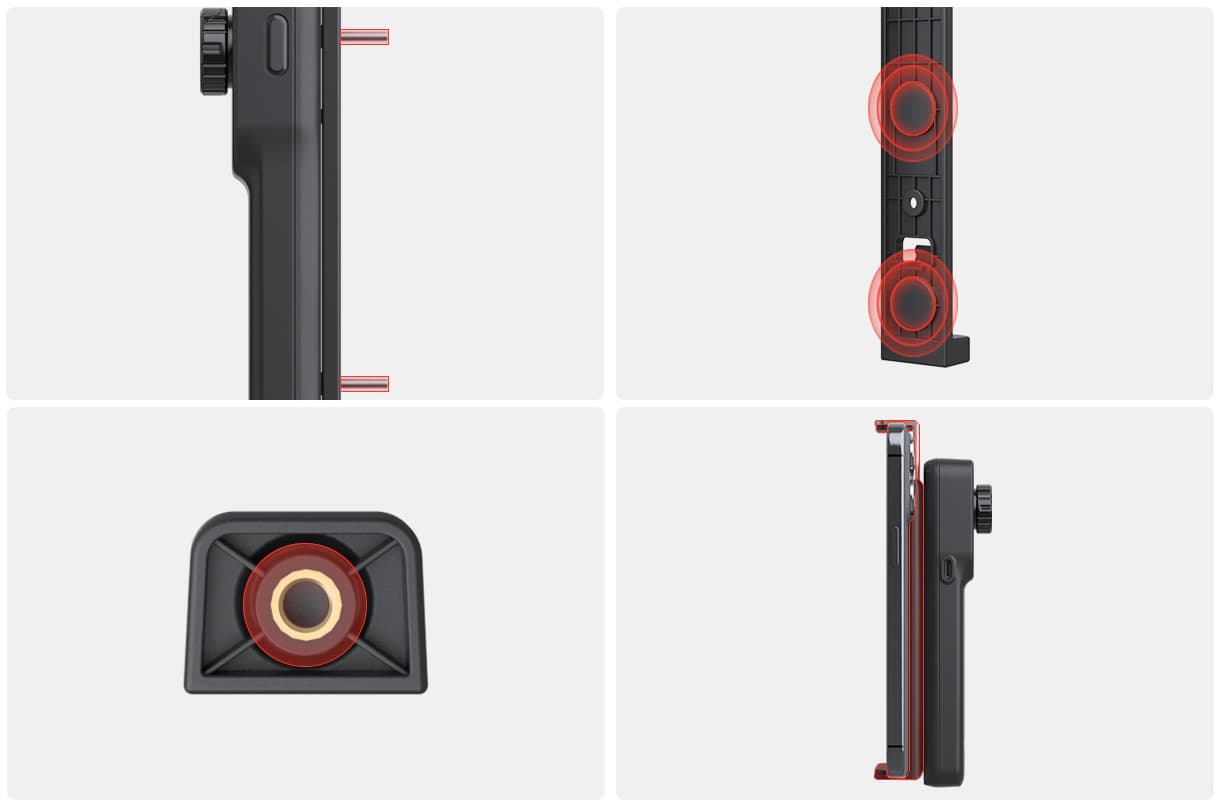

Compact, Ergonomic and Versatile Assembly The HIKMICRO Mini-X features a portable and ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task.

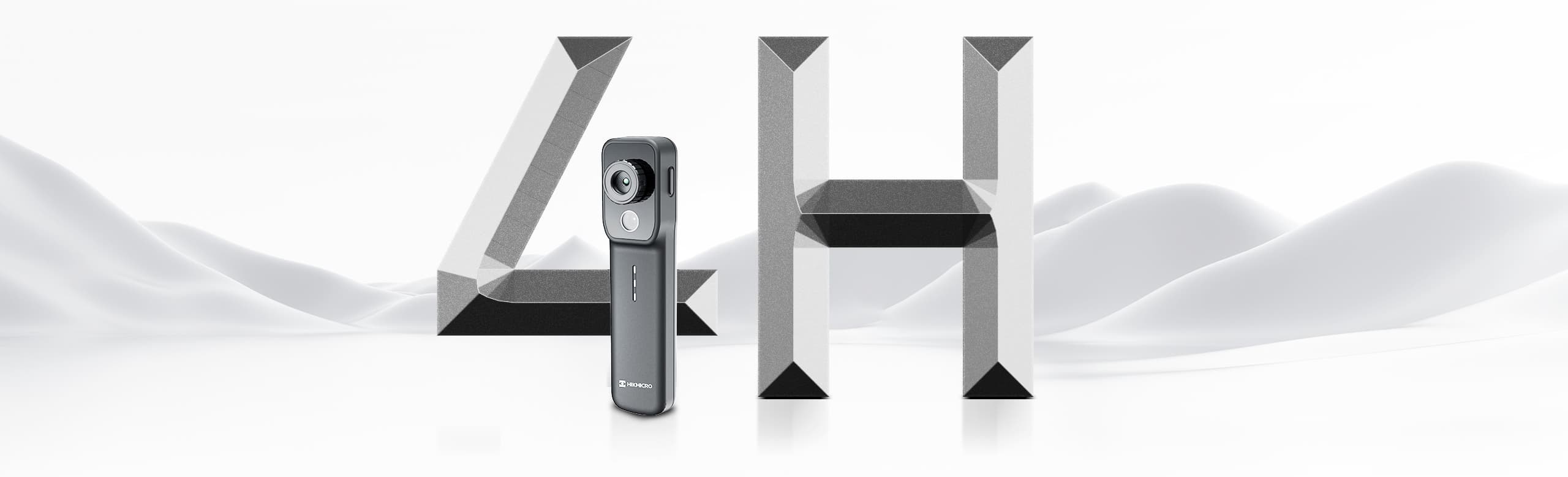

Long-lasting battery Enjoy up to 4 hours of continuous operation with the integrated rechargeable lithium-ion battery.

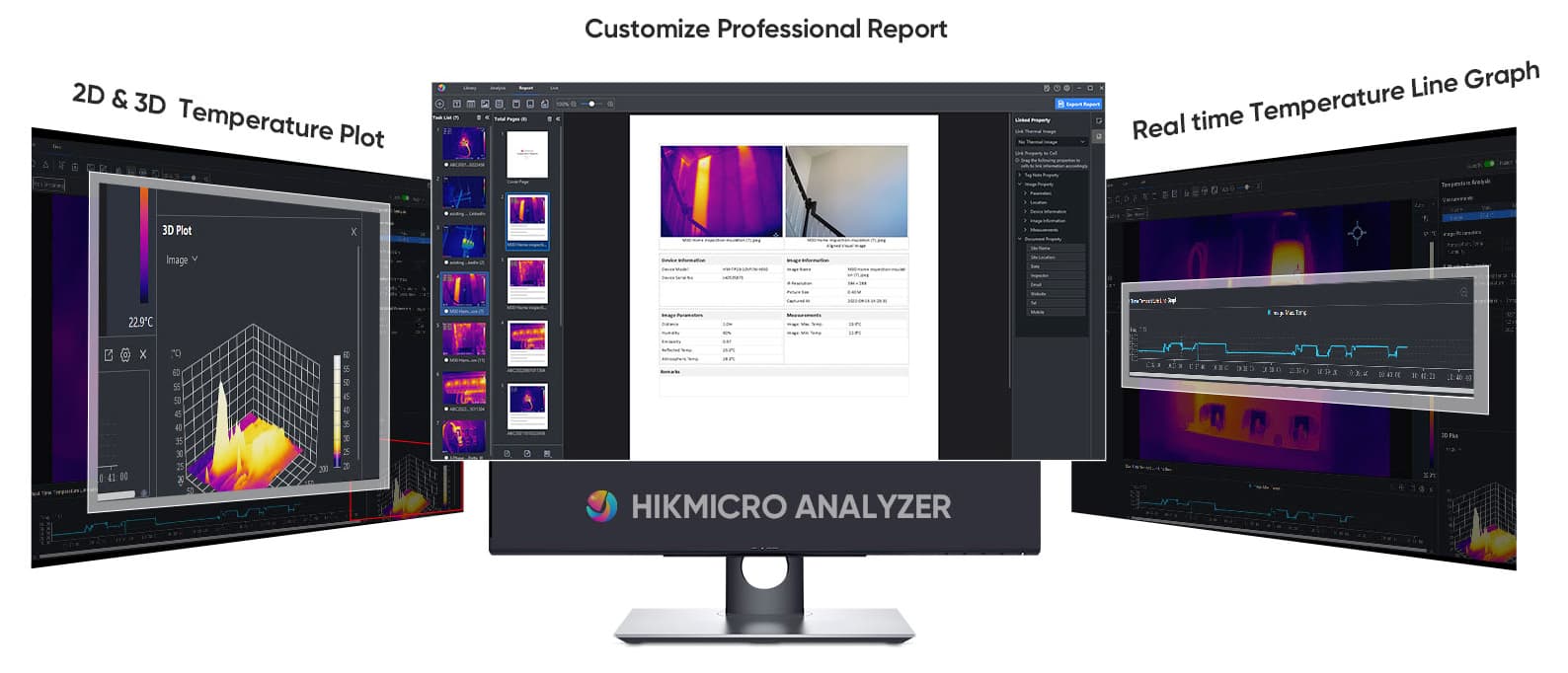

Hikmicro Analyzer The online visualization feature of the HIKMICRO Analyzer is particularly valuable, allowing real-time access to thermal image data, which significantly increases efficiency.

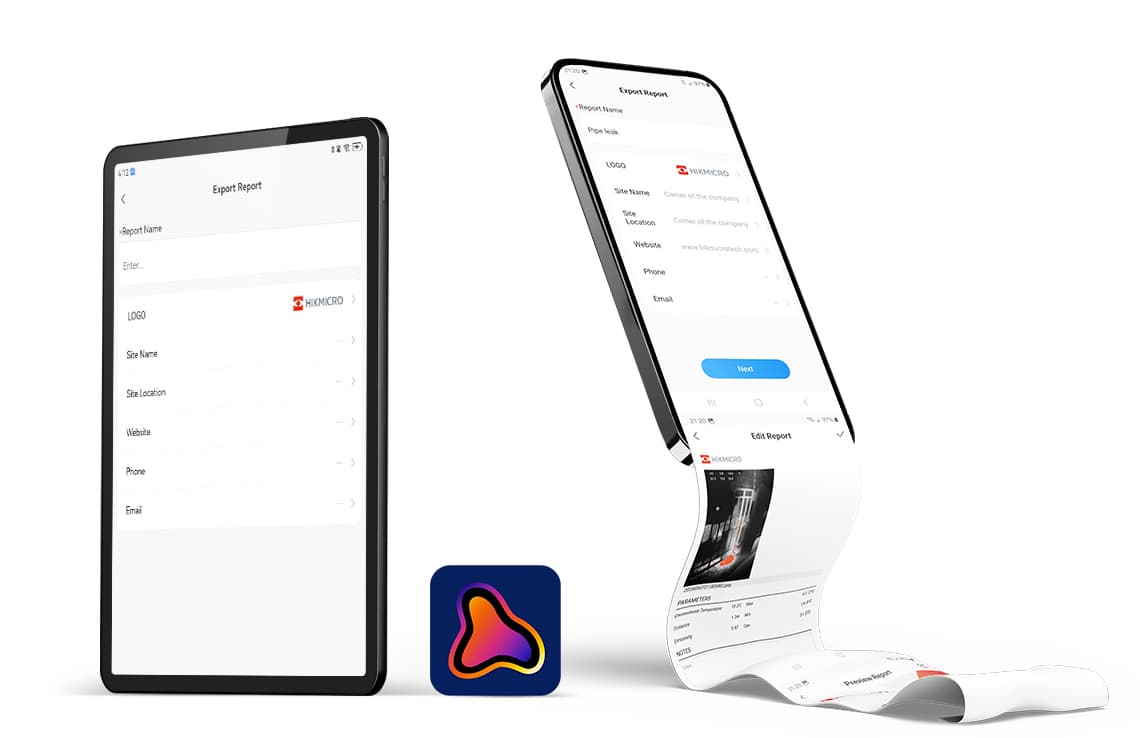

Hikmicro Viewer The HIKMICRO Viewer application allows you to quickly generate field reports, customize job site data, adjust measurement settings, add annotations, and share them with clients or managers.

Applications:

• Solar Panel Maintenance
• HVAC Maintenance
• Automotive Service
• PCB
• Finding Pets
• Computer Cooling

Package Content:

• 1x Termovisor
• 1x Imager Eye
• 1x USB Cable
• 1x Surface Mount Bracket
• 1x Phone Holder
• Quick Start Guide

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
