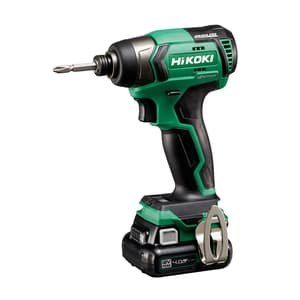

HiKoki 10.8 - 12V Peak / 4.0 Ah Li-ion Cordless Impact Driver (Brushless), WH12DDSCZ
Roll over image to zoom zoom_in
- Weight: 1.1 Kg
- Product Type: Impact Wrench
- Impact Rate: 0 - 4000 bpm
- No Load Speed: 0 - 3200 rpm
- Chuck Capacity: 0 - 6.35 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹14018.4 (Incl. of all taxes)
₹11880+ ₹2138.4 GST (18%)
MRP ₹22000
SAVE 46%
2 Business Days
1 Set
82041120
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Super Easy to Work withVersatile and Compact with the Shortest* Head in its Class |
Runtime per ChargeApprox. 500 Wood Screws |
12V PEAKSlide Lithium-Ion High-Capacity Batteries

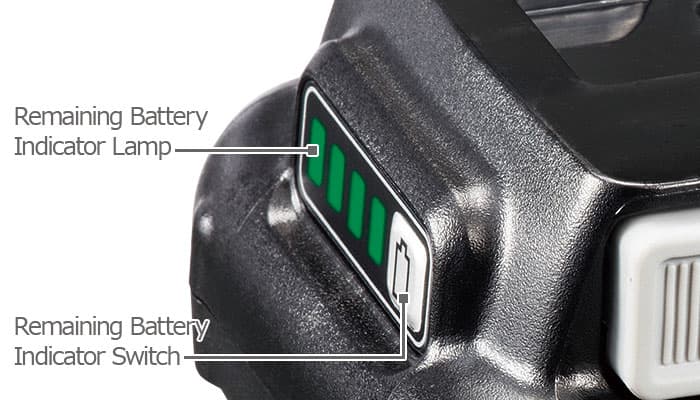

The remaining battery indicator lamp shows not only charge level but also battery overheating and failure when they occur. |
Class-leading Charging Speed
|
Battery Status Indication
Indicator Lamp | Battery Charge State |
![]() | 75% and above |
![]() | 50% - below 75% |
![]() | 25% - below 50% |
![]() | Below 25% |
![]() | 0% |
![]() | Output suspended due to high temperature |
![]() | Output suspended due to failure |
- Remove the battery from the tool and allow it to cool down fully.
- The problem may be with the battery so please contact your dealer.

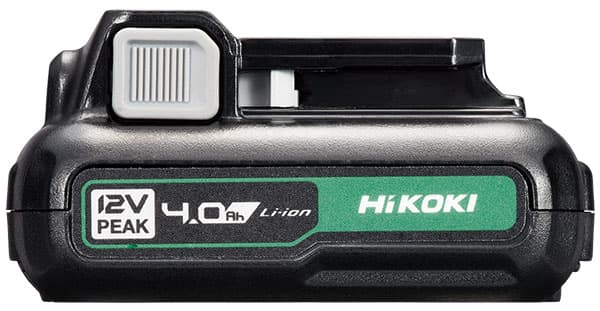

12V Peak Slide Lithium-ion Battery
Model | BSL1240M |
Voltage | 10.8 - 12V Peak |
Capacity | 4.0Ah |
Charging Time at 20°C | Approx. 60min (with UC12SL) |
Dimensions (L x H x W) | 91 x 45 x 74mm |
Compatible Charger | UC12SL |
Specifications:
No Load Speed | Soft Mode | 0 - 1,300/min |
Power Mode | 0 - 3,200min | |
Self-drilling Screw Mode | 0 - 3,200min | |
Impact Rate | Soft Mode | 0 - 2,500/min |
Power Mode | 0 - 4,000min | |
Self-drilling Screw Mode | 0 - 4,000min |
What's Included In This Package:
- 2 Batteries (BSL1240M)

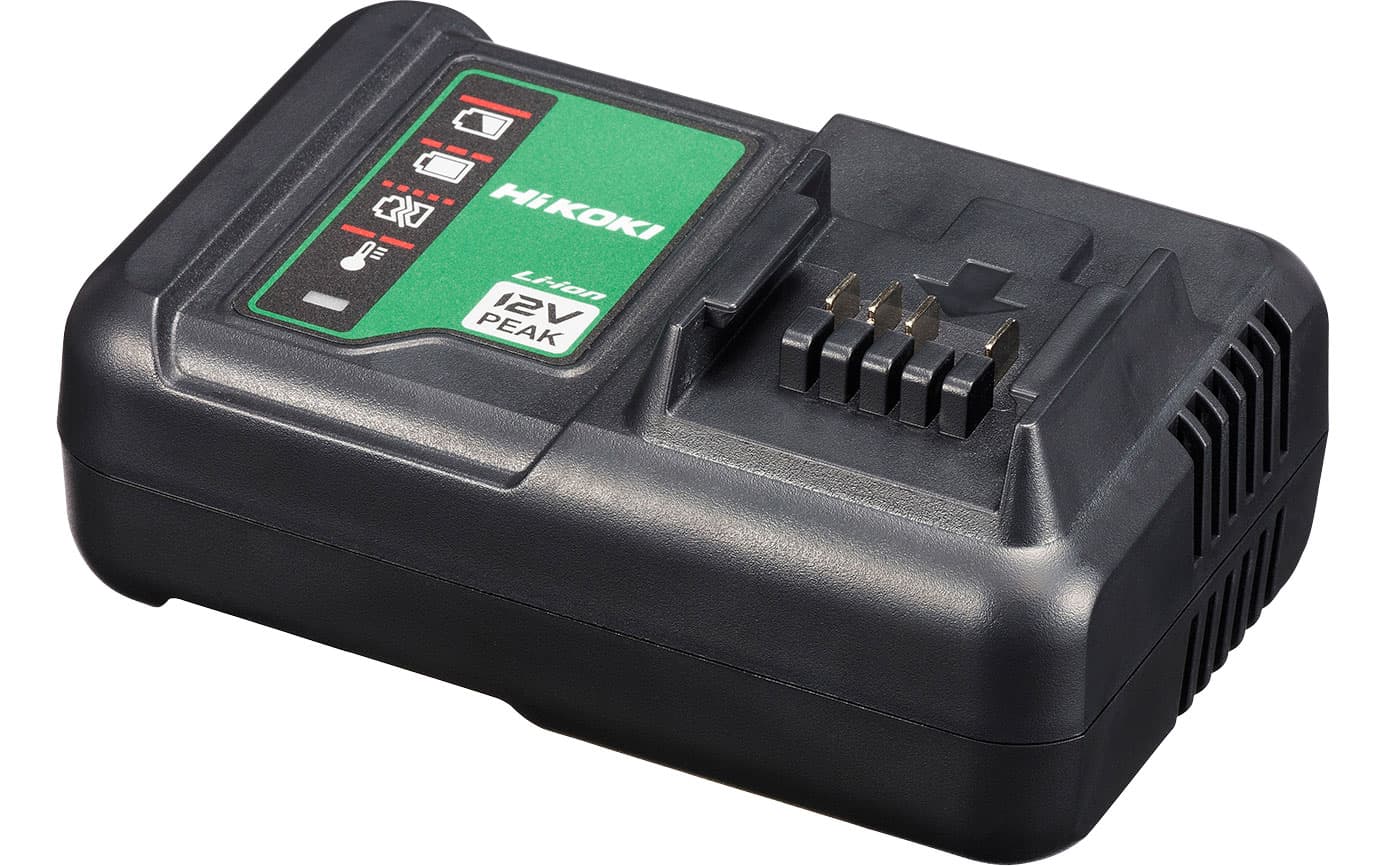

- Charger (UC12SL)
- Battery Cover
- Carrying Case
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | PO.FA.IM.00136 |
---|---|
Product Type | Impact Wrench |
Model No | WH12DD |
Power Source | Cordless |
Impact Rate | 0 - 4000 bpm |
No Load Speed | 0 - 3200 rpm |
Chuck Capacity | 0 - 6.35 mm |
Max. Torque | 135 Nm |
Capacity (Small Screw) | 4 - 8 mm |
Capacity (Ordinary Bolt) | 5 - 14 mm |
Capacity (High Tension Bolt) | 5 - 12 mm |
Capacity (Self Drilling Screw) | 3.5 - 5 mm Dia |
Battery Voltage | 10.8 - 12V Peak |

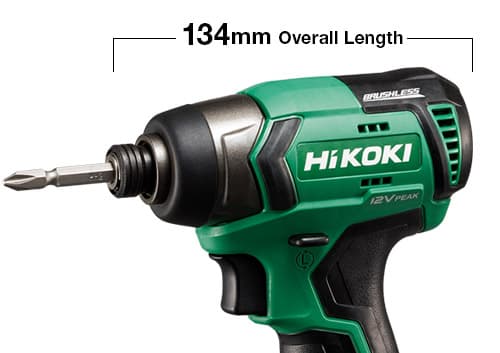

Overall Length | 134 mm |
