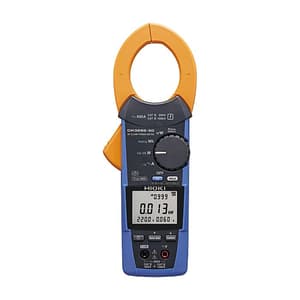

Hioki 0.060 - 600.0 A AC Power Clamp Meter, CM3286-50

Shop all Hioki

SKU: ME.EL.CL.00126

Model: CM3286-50

Roll over image to zoom zoom_in
  1. Hioki 0.060 - 600.0 A AC Power Clamp Meter, CM3286-50
  2. Hioki 0.060 - 600.0 A AC Power Clamp Meter, CM3286-50

  • Weight: 450 Grams
  • Product Type: Clamp Meters
  • Measurement line: Single-phase, Three-phase (balanced with no distortion)
  • Core jaw dia. : Ø 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

50587.78 (Incl. of all taxes)

42871+ ₹7716.78 GST (18%)

MRP ₹53589

SAVE 20%



5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Quickly Check Current, Voltage, Power, and Power Factor Detect Electricity Theft and Meter Tampering Hioki clamp meters are best-in-class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on the power meter can measure voltage, current, power, power factor, phase angle, reactive power, or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.

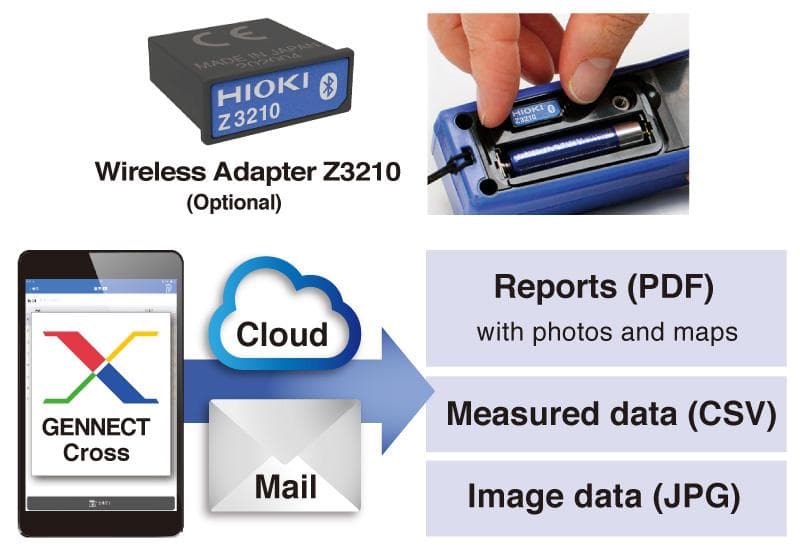

Easy! Just connect the Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready. Wirelessly connect Hioki-compliant instruments with a simple connection. Transfer measurements to your smartphone or tablet and quickly create reports with field photos and drawings.


Key Features:

  • Display four parameters simultaneously
  • A handheld power meter that measures from 5 W of power and 60 mA of current Measure power ranging from 5 W at a low current of 60 mA to 360 kW
  • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
  • Features and functions deliver fast and efficient testing
  • Harmonic analysis from 1st to 30th order with GENNECT Cross (Wireless Adapter Z3210 is necessary)
  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file (Wireless Adapter Z3210 is necessary)


What's Included In This Package:

  • 1x Connection Cord L9257
  • 2x LR03 Alkaline battery
  • 1x Carrying Case C0203
  • 2x Instruction Manual
  • 1x Operating Precautions

Measurement itemsVoltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase)
(With Z3210 installed (*2)) Voltage/Current harmonics
Power range(Single phase) 0.005 kW to 360.0 kW
Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)
(Balanced three-phase 3-wire) 0.020 kW to 623.5 kW
Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1)
(Balanced three-phase 4-wire) 0.040 kW to 1080 kW
Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Power supplyLR03 Alkaline battery ×2
Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications)
Other conditions: 100 A AC measurement, backlight off, 23°C reference value


Instantly create reports by a free app (GENNECT Cross) (*1)

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports. The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.


Excel® Direct Input Function (*1)

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel®.


Helping personnel analyze issues in the field

Harmonic measurement: When combined with GENNECT Cross (*2), you can perform simple harmonic analysis. Applications include problem analysis of power supply systems.


Problems that can be caused by harmonics

  • Equipment burn-out and destruction due to overheating
  • Malfunctions of power control devices
  • Increased loss along with reduced service life and efficiency for power devices

Broad measurement range

Delivering a broad range of measurements at sites from manufacturing plants to households. Accurately measure power from 5 W at a current as low as 60 mA to 360 kW at a maximum of 600 A (single-phase power measurement)


Measurement line

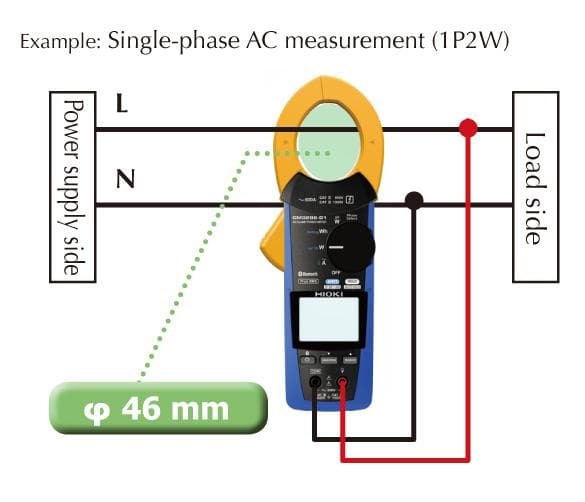

Measure power in single-phase to balanced three-phase circuits (with estimated values) (1-phase/ 2-wire, 1-phase/ 3-wire, balanced 3-phase/ 3-wire, and balanced 3-phase/ 4-wire). The instrument generates estimated power values when measuring 3-phase circuits

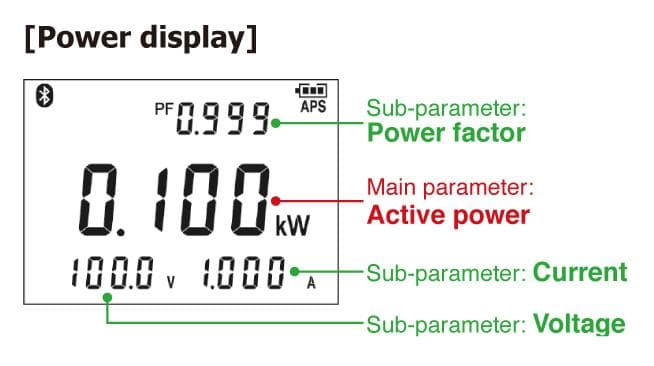

Easy-to-see display

Related parameters and connection locations shown on the display at once (Main parameter×1, Sub-parameter×3)

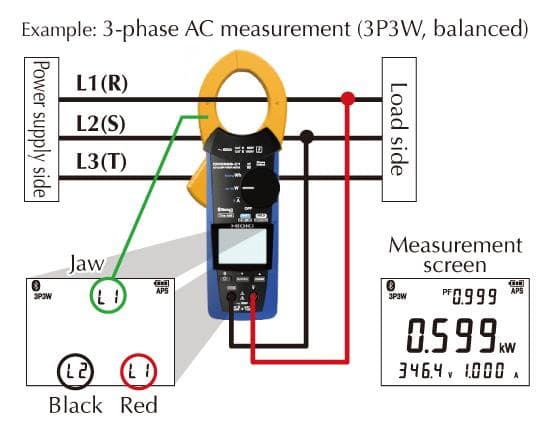

Simple wiring guide

Provides a simple on-screen guide indicating how to connect it to a 3-phase circuit.

Built-in AUTO HOLD function

The clamp meters beep when the measured value stabilizes and then automatically hold the display value. This is useful when using the instrument in locations where it is difficult to see the display or press the hold button.

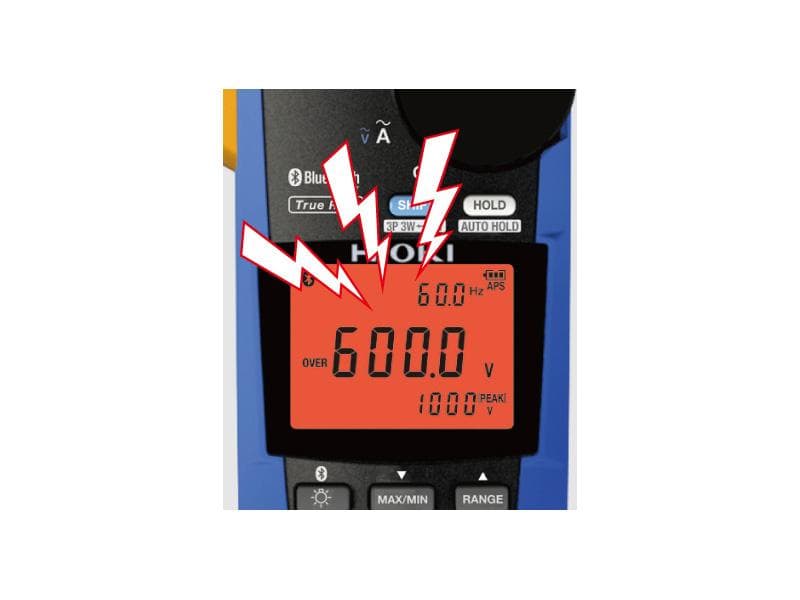

Double warnings with sound and light

When the clamp power meter detects excessively over current or voltage input during a continuity check, it alerts you with a red backlight and beeping tone in order to help prevent accidents.

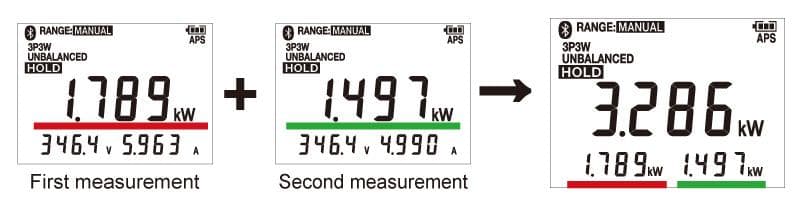

Quickly check for unbalance

CM3286-50 can measure unbalanced power in a 3-phase/ 3-wire circuit by measuring the single-phase power twice and then automatically adding the results. (The instrument can also measure 3-phase/4-wire circuits in three separate measurements.)

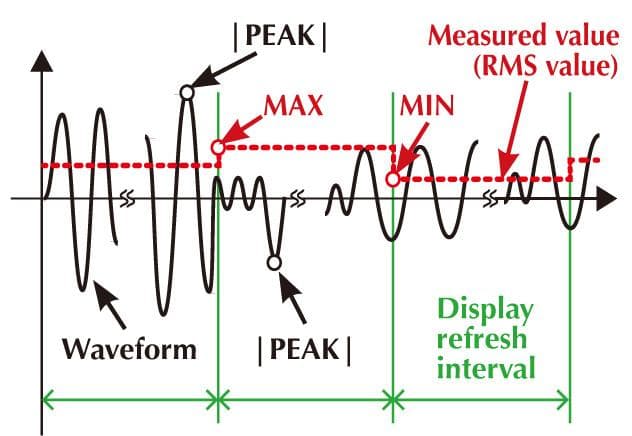

Easily check power supply fluctuations

Since it can display maximum (MAX), minimum (MIN), and average (AVG) values, the CM3286-50 is useful when you need to ascertain the magnitude of fluctuations. And since it can also measure crest (PEAK) values, you can use it to check fluctuations at the crest value level.

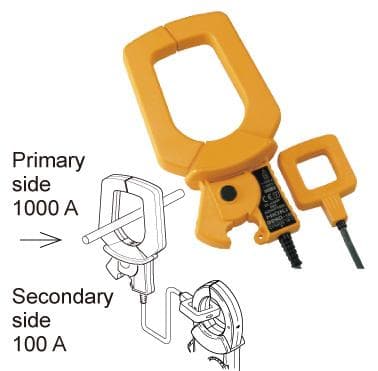

Support for large-diameter, high-current measurement

CM3286-50 can be used with the optional Clamp On Adapter 9290-10 to measure busbars of up to 55 mm in diameter or 80 × 20 mm. Measure high currents of up to 1000 A AC (or 1500 A for up to 5 min.).

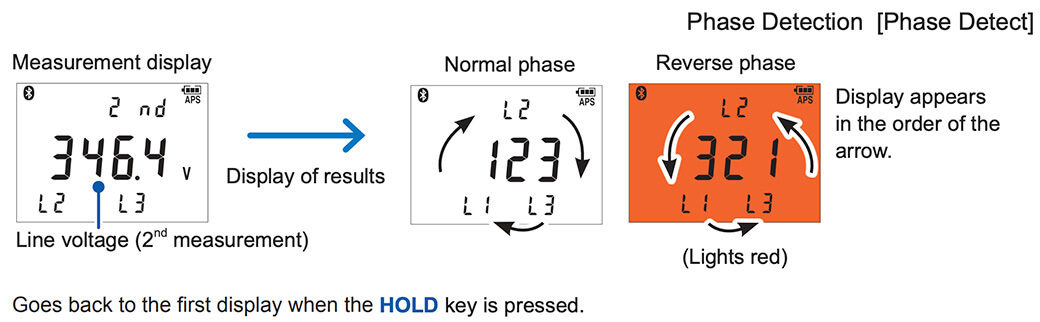

Phase sequence detection

Detect the phase sequence of the 3-phase power line with easy-to-see display.

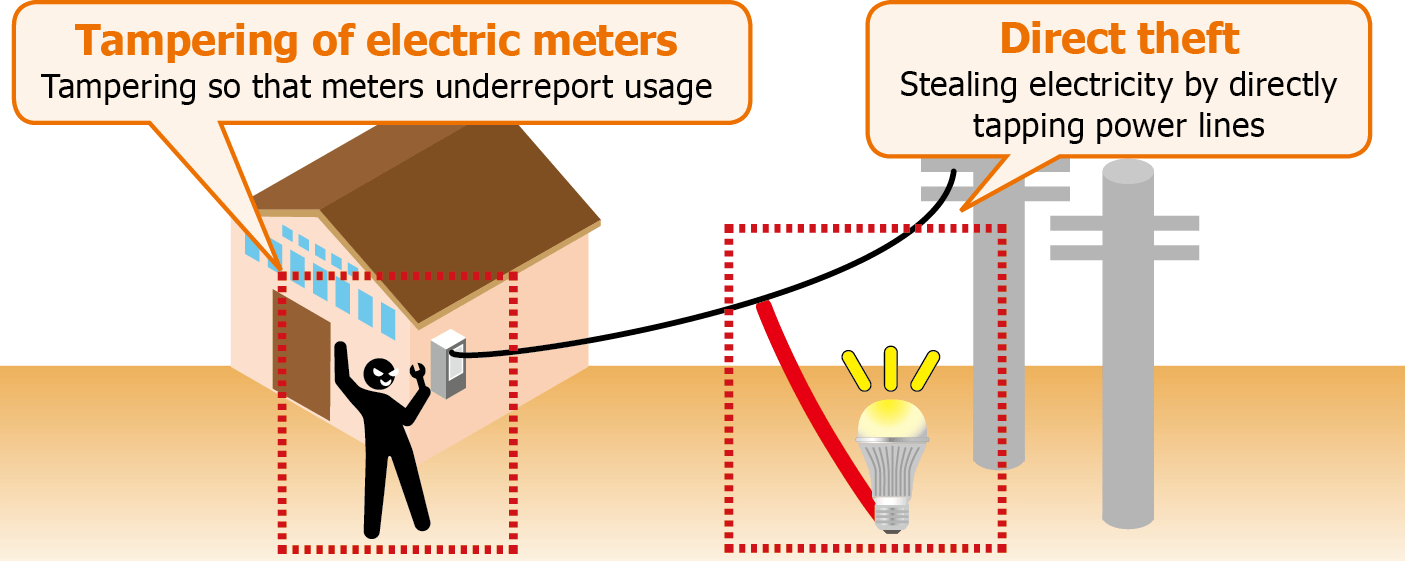

Accurately detect electricity theft

The CM3286-50 is ideal for verifying electricity theft since it can measure both AC power and current.

Meter tampering: Detect by comparing electric meter readings and measurements (Proper operation of electric meters can be confirmed by comparing meter readings and actual values.)

Direct theft: Detect by measuring current (Electricity theft can be detected by measuring current on the power supply side of the illegal connection.)

The instrument's electricity theft detection-and-report function can be used to quickly and easily make measurements and generate graphical reports with GPS geo tags. Getting telltale evidence of electricity theft involves more than just saving a record of measured values. Time and date, GPS data, measurement photographs, and measured values are captured as a series of photographs are taken and grouped together into a report.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00126
Product TypeClamp Meters
Model NoCM3286-50
Measurement line Single-phase, Three-phase (balanced with no distortion)
AC voltage range (Measurement range) 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
AC current range (Measurement range) 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Harmonic levels (With Z3210 installed x2) Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
Other functions (Phase angle (*1)) lead -180.0° to lag 179.9°, (Power factor) -1.000 to 1.000 (Frequency) 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof & waterproof IP20 (Voltage measurement in a completely dry condition. When jaw closes) IP50 (While in storage)
Core jaw dia. Ø 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm
Dimensions and mass 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D
